12. FRONT WHEEL/BRAKE/SUSPENSION
STEERING HANDLEBAR
REMOVAL

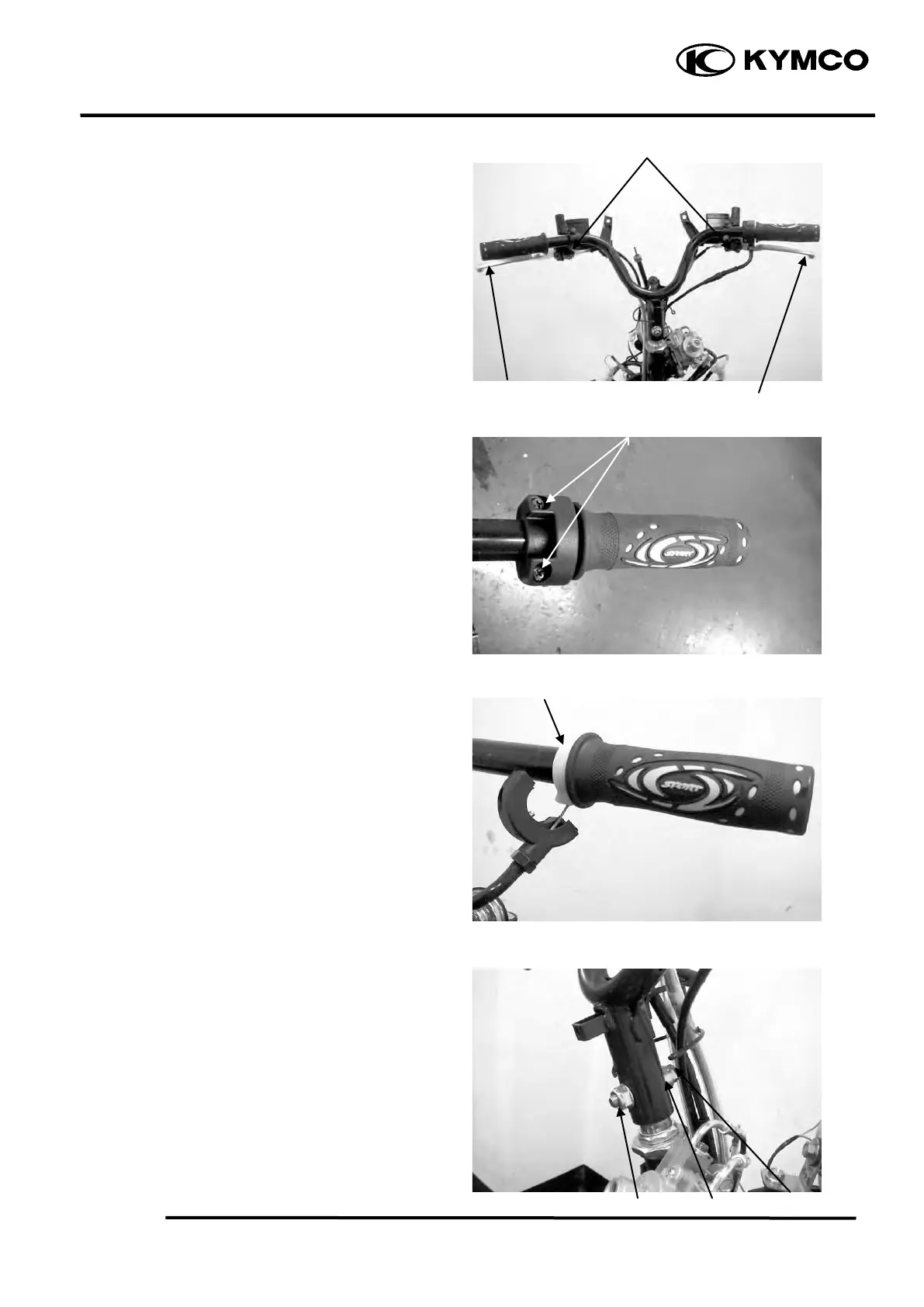

Remove the handlebar covers.
Remove the rear brake lever holder bolt to
remove the holder.
Remove the front brake master cylinder holder
bolts to remove the brake master cylinder.
Remove the throttle seat screw and throttle grip.
Remove the throttle seat from the handlebar and
disconnect the throttle cable from the throttle
pipe.
Remove the throttle pipe from the handlebar.
Remove the steering stem lock bolt, collar, nut
and the handlebar.
Rear Brake Lever Front Brake Lever
Bolts
Bolts
Throttle Pipe
Nut Collar Bolt
