5. Fi INJECTION SYSTEM MOVIE S 125i

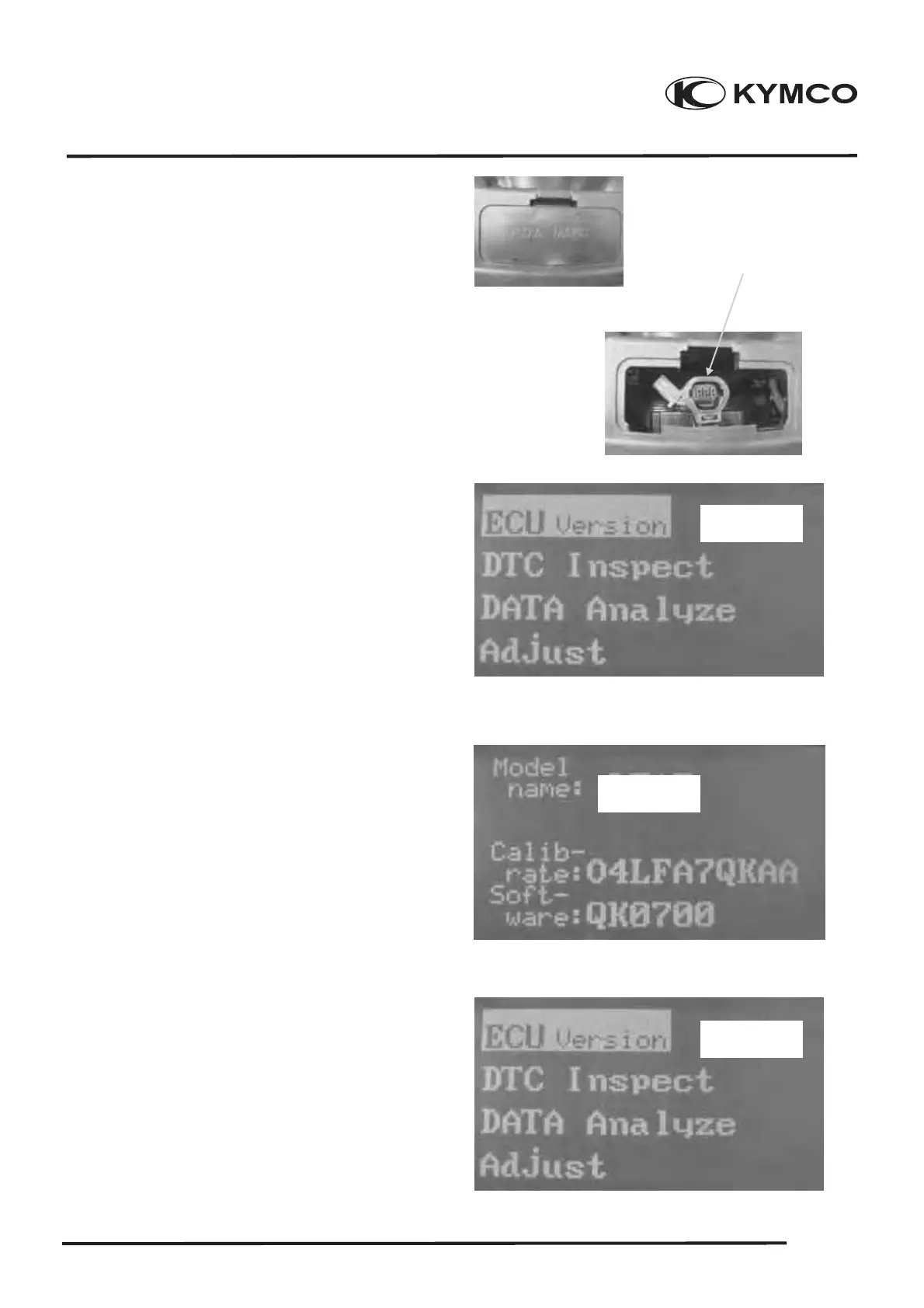

DTC INSPECTION PROCEDURE

Connect Fi diagnostic tool with the connector of

harness wire located beside the Battery.

Diagnostic Tool Connector

Press the " Enter " button

Check the software version

Press the " Enter " button and then turn to the first

page.

Press the " Down " button to enter the DTC Inspect.

5-26

LGH6
