5. Fi INJECTION SYSTEM MOVIE S 125i
5-14
ECU MODULE COUPLER
Installation
1.To confirm if the pulling rod of coupler is in a
lower fixed position before installation or
would fail to install the ECU module.
2.To install the coupler to ECU module (notice
its direction).
3.To press the top of coupler with the finger and
rotate the pulling rod by thumb at the same
time, in the meantime, bumps of ECU seat
should be engaged with the track of rod.
4.When the rod has been rotated to the top
position, the stopper will fix the rod prevent
from loosen, while you hearing a click, you
have succeeded in installation.

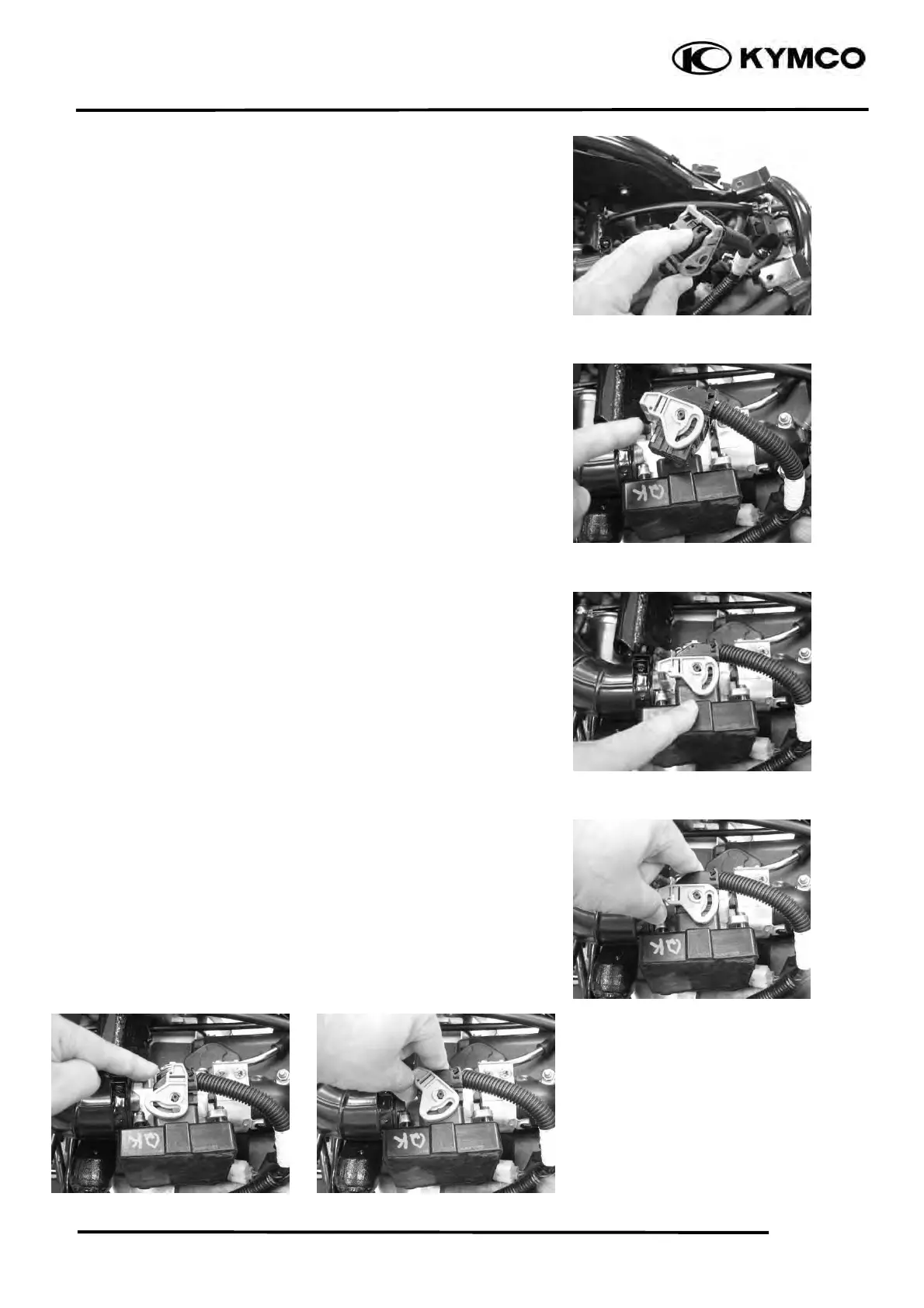

Step 1
Step 2
Step 3
Step 4
Step 5 Step 6
