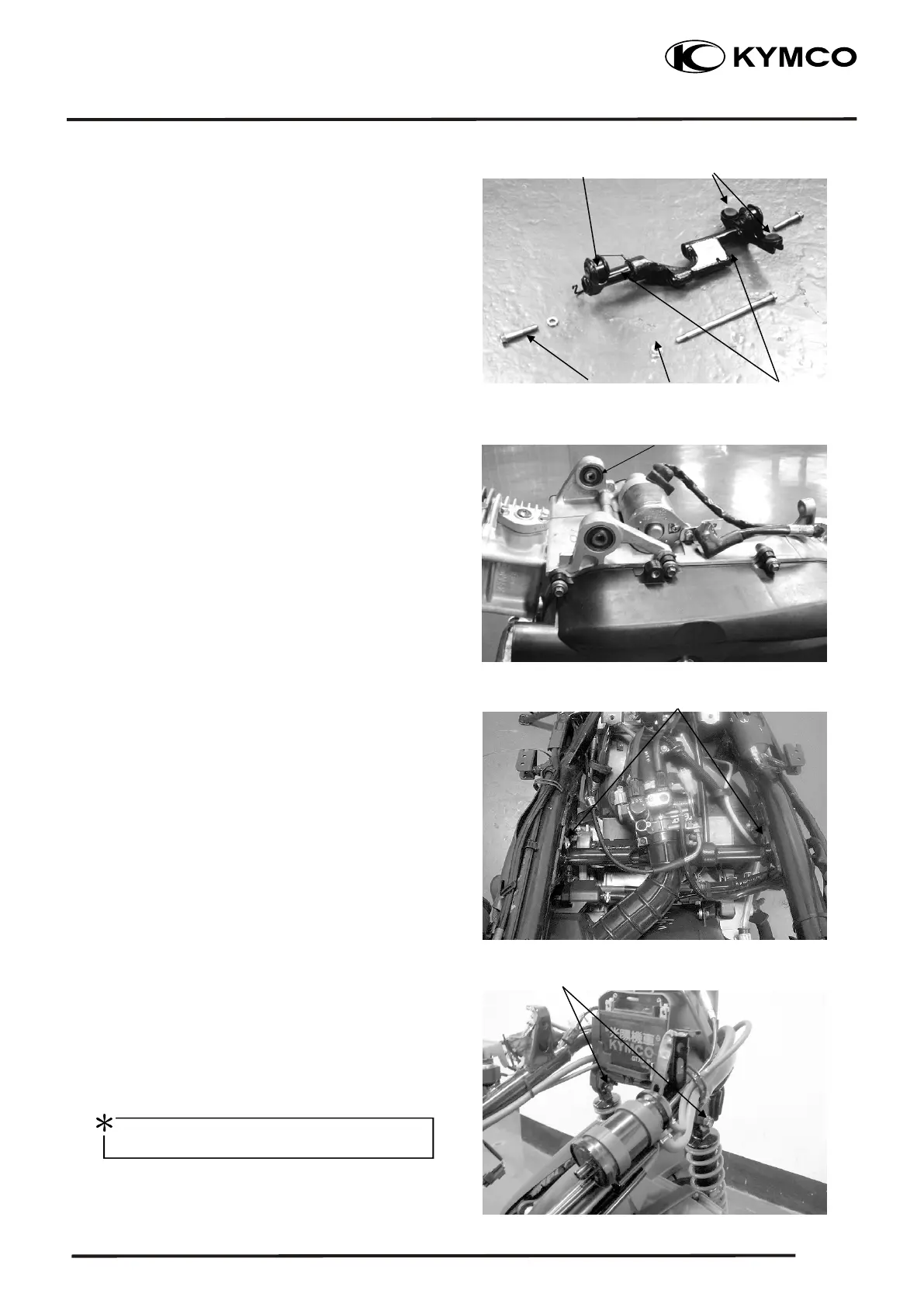

Inspect the engine hanger bushings and stopper
rubbers for wear or damage.
Install the engine hanger bracket to the engine.
Install the engine hanger bracket bolt and tighten
the nut.
Install the removed parts in the reverse order of
removal.
After installation, inspect and adjust the following:
- Throttle grip free play
- Rear brake adjustment
6-4
ENGINE HANGER BRACKET
INSTALLATION
6. ENGINE REMOVAL/INSTALLATION
Bushings Stopper Rubbers
Axle
Engine Hanger Bracket
ENGINE INSTALLATION
Install the engine and tighten the engine mounting
bolts.
Torque: 5.0kg-m
Tighten the rear shock absorbers mounting bolts.
Torque: 4.0kg-m
Engine Mounting Bolts
Route the wires and cables properly.
Bushings
Nut
Rear Shock Absorbers Mounting Bolts
