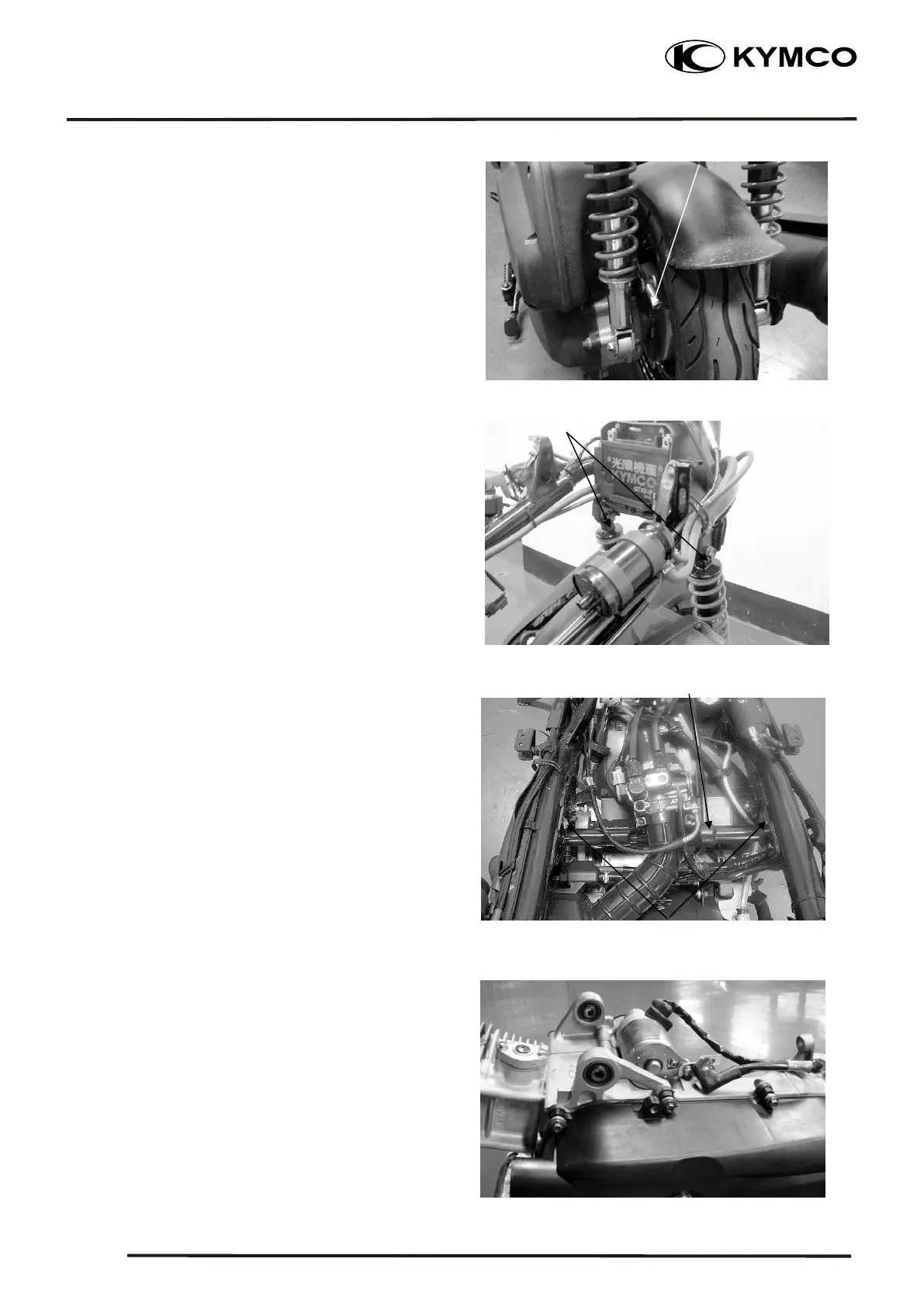

Remove the air cleaner bolts.
Remove the rear brake adjusting nut, connecting
pin and rear brake cable.
Remove the rear absorbers mounting bolt.
Remove the engine mounting bolt and pull out the
engine with the engine hanger bracket backward.
6-3
Remove the engine hanger bracket bolt and nut.
Remove the engine hanger bracket.
6. ENGINE REMOVAL/INSTALLATION
Brake Adjusting Nut
ENGINE HANGER BRACKET REMOVAL
Rear Absorbers Mounting Bolt
Engine Mounting Bolt
Engine hanger bracket
Movie S 125i
