15. IGNITION SYSTEM
15-4
Movie S 125i

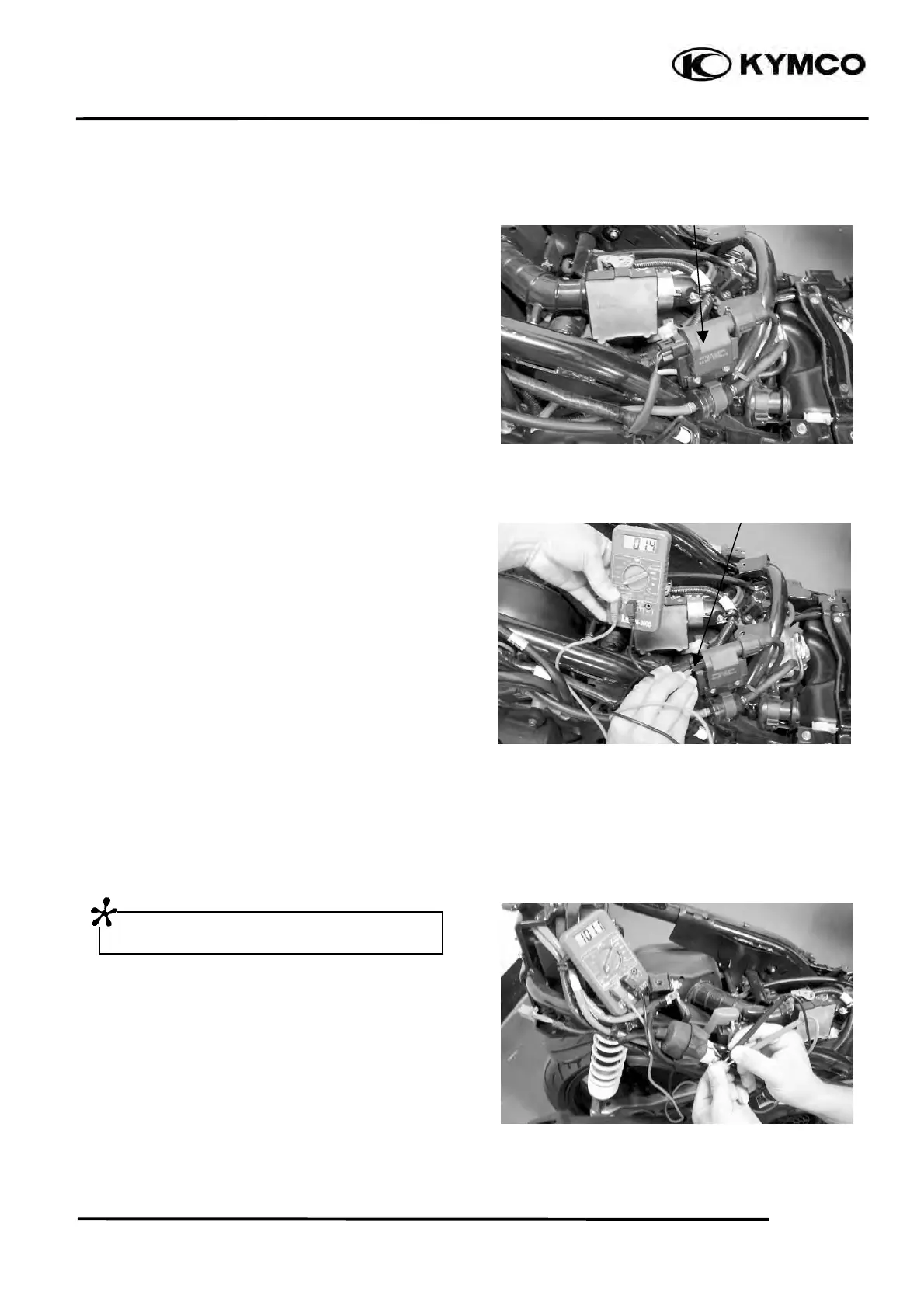

IGNITION COIL
REMOVAL
Remove the body covers.
Disconnect the spark plug cap from the spark
plug.
Disconnect the ignition coil primary
connector.
Remove the bolt and the ignition coil.
INSPECTION
Measure the resistance of ignition primary
coil.
Standard: 0.55~0.75Ω/20℃
AC GENERATOR
CPS
Remove the body covers.
Disconnect the ignition pulse generator
connector.
Measure the ignition pulse generator
resistance between the Green/White wire and
Blue/Yellow wire.
Standard: 96~144Ω
Ignition Coil
Ignition Primary Coil
The test is served under engine working.
