7. CYLINDER HEAD/VALVES
7-6
CYLINDER HEAD REMOVAL
Remove the throttle body.
Remove the intake manifold.
Remove the cylinder head cover.
Remove the camshaft.
Remove the cooling fan cover.
Remove the engine cover bolts and screws.
Separate the engine cover joint claws.

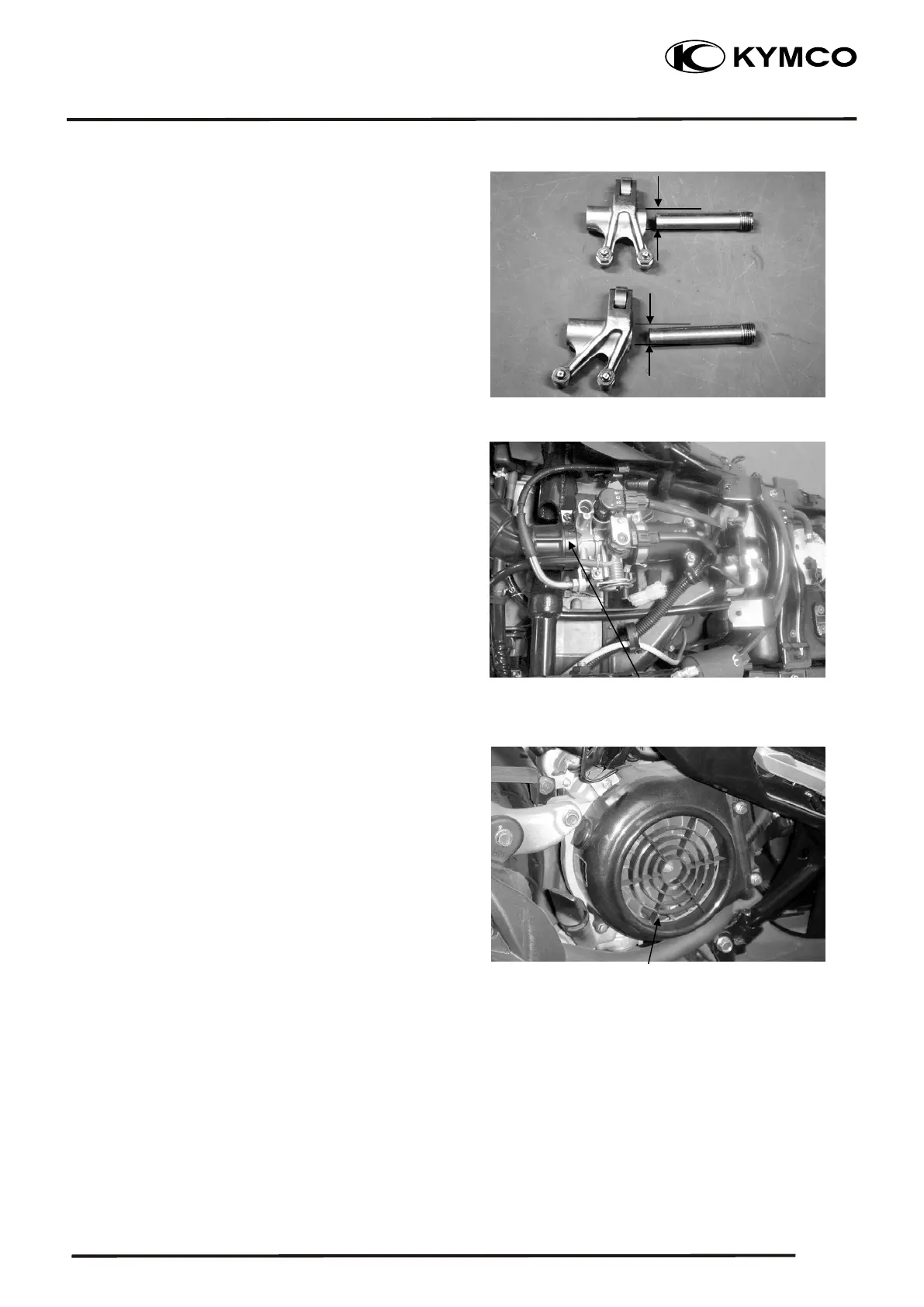

Measure the I.D. of each valve rocker arm.
Service Limits:
IN: 10.10mm replace if over
EX: 10.10mm replace if over
Measure each rocker arm shaft O.D.
Service Limits:
IN: 9.91mm replace if below
EX: 9.91mm replace if below
Intake manifold
Fan cover
Movie S 125i
