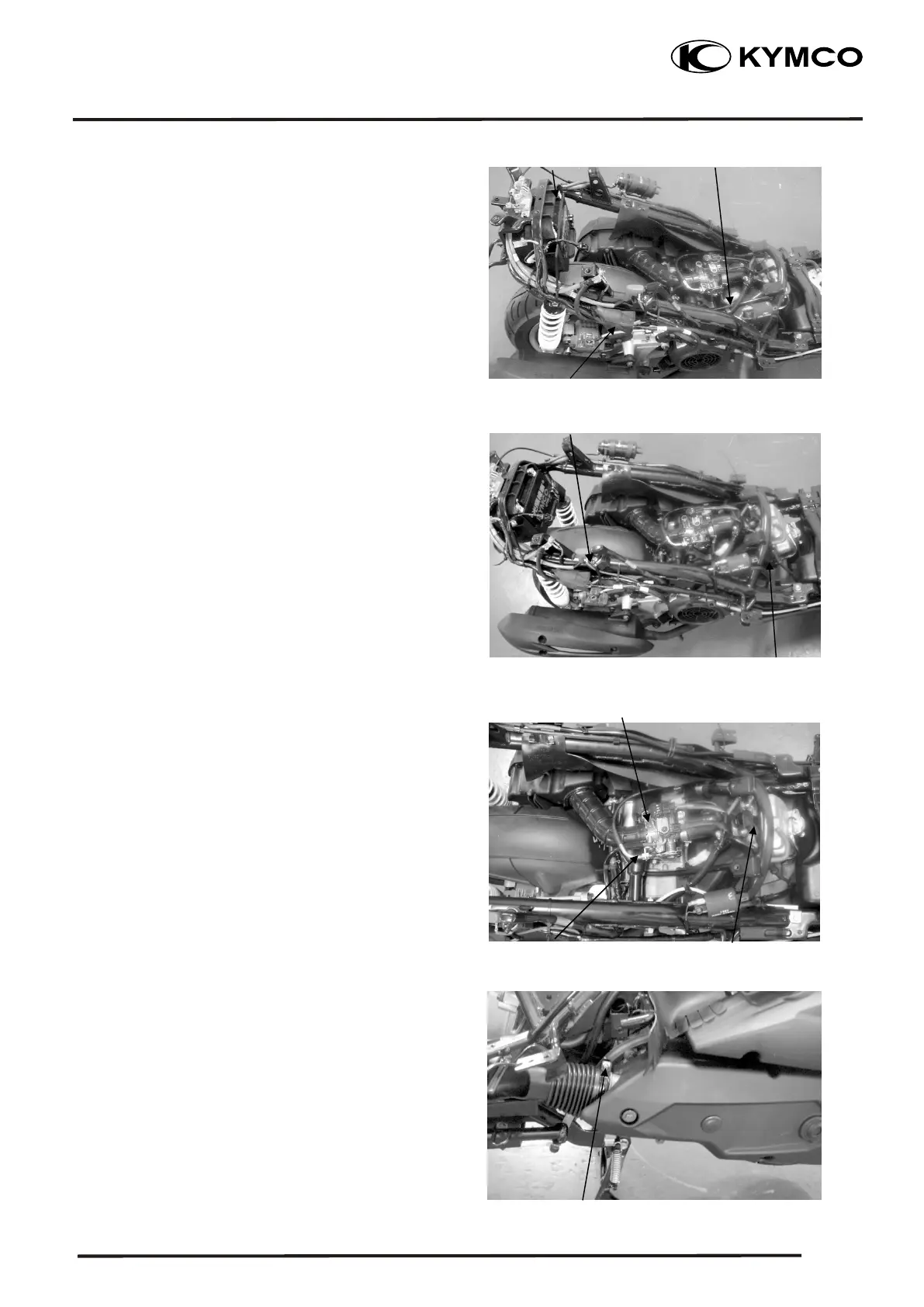

ENGINE REMOVAL
Disconnect the battery negative cable.
Remove the frame body cover.
Disconnect the engine negative cable.
Disconnect the A.C. Generator wire connector.
Disconnect the engine temperature sensor
connector.
Remove the rear brake caliper.
Remove two nuts attaching to the intake manifold.
Disconnect the starter motor cable from the starter
relay.
Remove the spark plug cap.
Remove the ignition coil’s wire.
Remove the O2 sensor wire.
Remove the bolt attaching to the rear suspension.
Remove the injector’s wire.
Remove the throttle cable.
Remove the vacuum tube.
Remove the fuel tube attaching to injector.
A.C. Generator Wire Connector
Battery Negative Cable
Starter Relay
6. ENGINE REMOVAL/INSTALLATION
Band Screw
Loosen the CVT’s connecting tube band screw and
remove the connecting tube.
Connecting Tube
Engine temperature
sensor connector
Spark plug cap
Throttle Cable
Injector Wire
Movie S 125i
To Next Page
