12. FRONT WHEEL/BRAKE/SUSPENSION

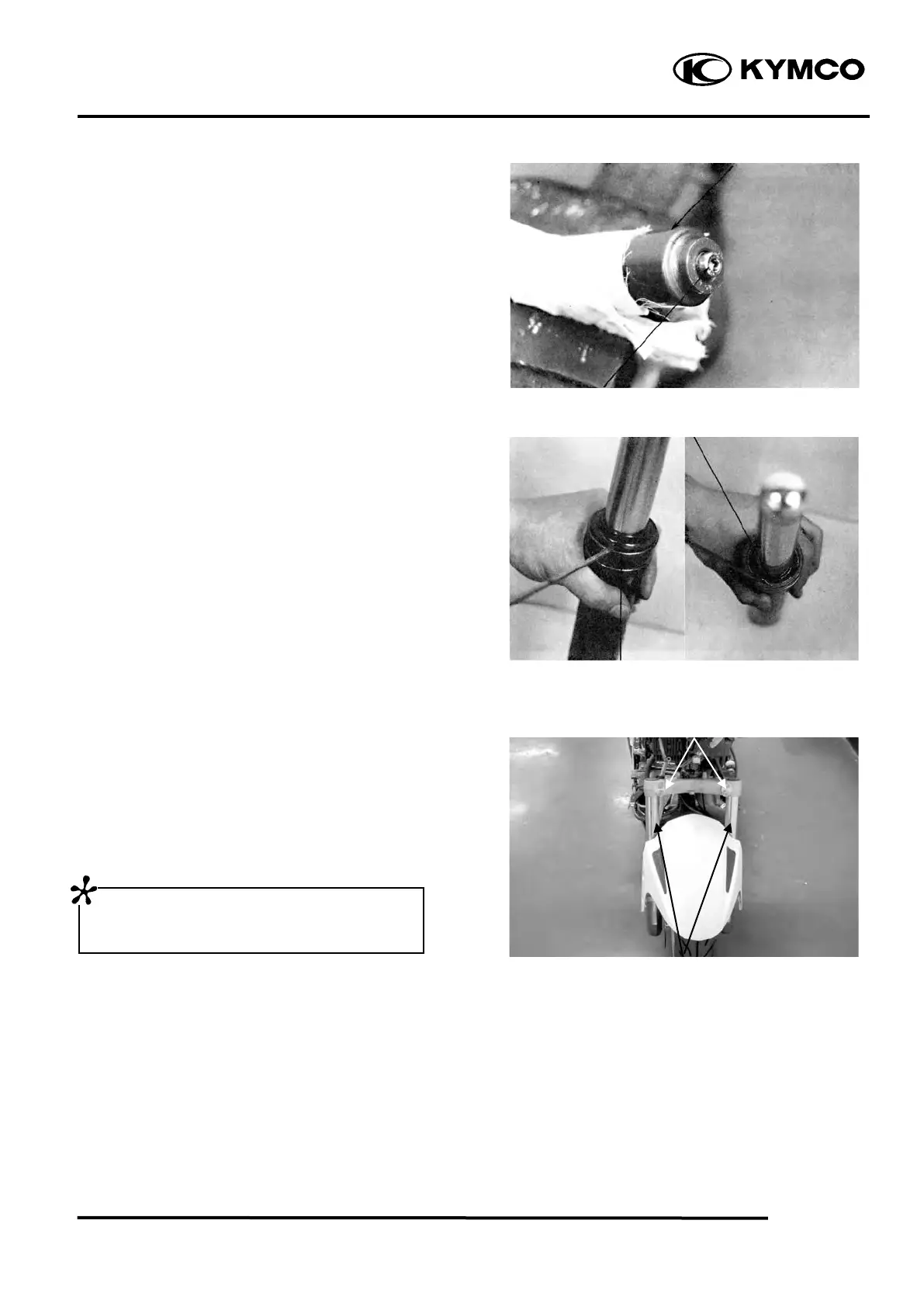

Set the front shock absorber in a vise.
Insert the shock absorber tube into the shock
absorber and tighten the hex bolt. Apply locking
agent to the washer and install it together with
the hex bolt.
Torque: 1.5
3.0 kg-m
Specified Oil: SS#8
Oil Capacity: 120 cc
Install the circlip
Install the dust boot
INSTALLATION
Install the front shock absorbers onto the
steering stem.
Install and tighten the front shock absorber upper
mount bolts.
Tighten the lower mount bolts.
Torque: 2.0
2.5 kg-m
Six angle bolt
Absorber
Dust Boot
Circlip
Bolts
Shock Absorber
Align the upper mount bolt’s hole with the
groove on the front fork.
