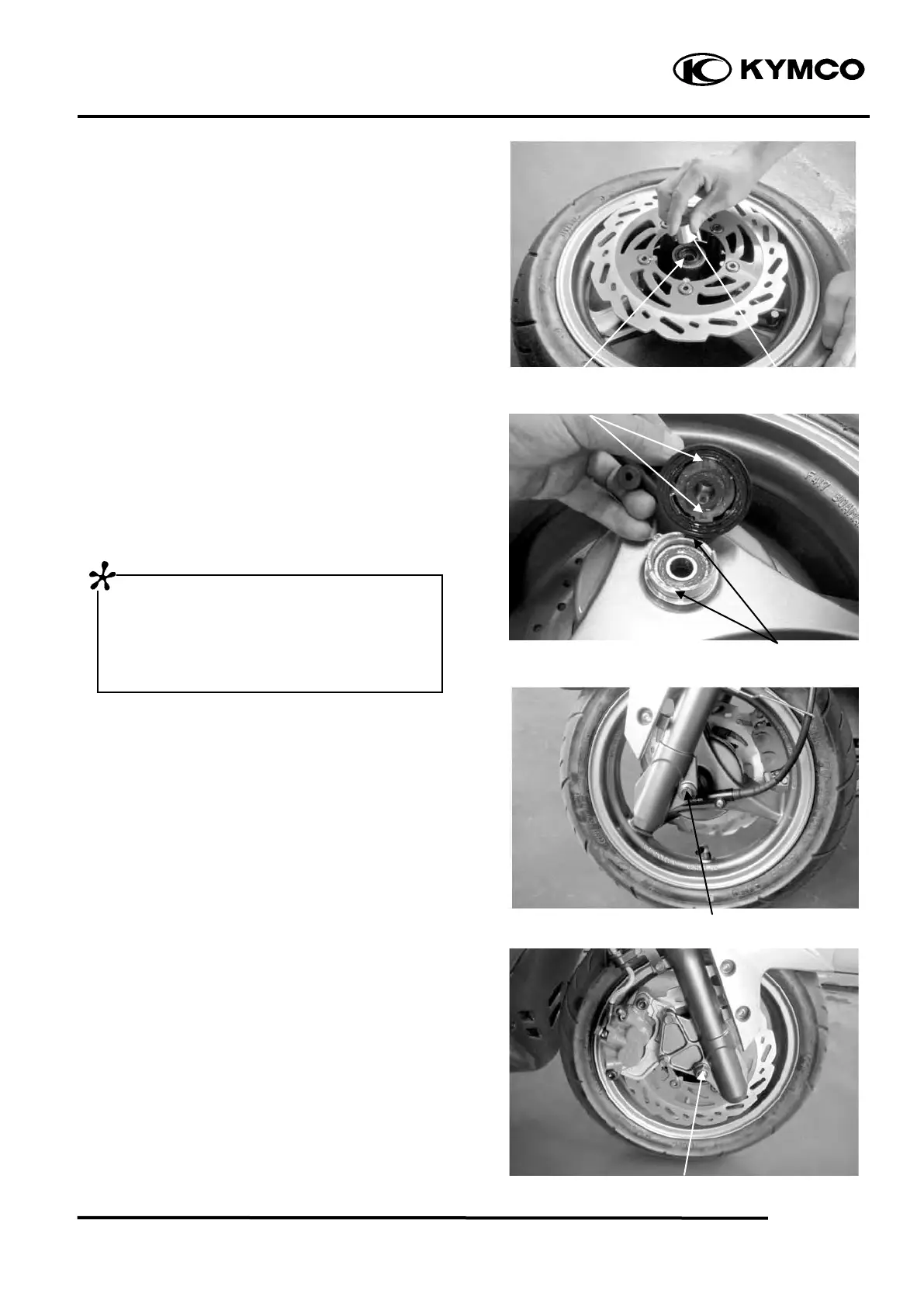

12. FRONT WHEEL/BRAKE/SUSPENSION
Apply grease to a new dust seal lip and install
the dust seal.
Install the side collar.
INSTALLATION
Apply grease to the speedometer gear.
Install the brake panel by aligning the
speedometer retaining pawls with the hub
cutouts.
Apply a thin coat of grease to the axle shaft.
Install the front wheel by aligning the brake
panel groove with the front fork tab.
Insert the axle shaft.
Connect the speedometer cable and secure it
with the screw.
Install and tighten the axle nut.
Torque: 6.0 kg-m
Install the front brake cable.
Dust Seal Side Collar
Cutouts
Pawls
If not aligned, the retaining pawl will be
deformed when the axle nut is tightened.
After installing the axle, turn the wheel to
make sure that the speedometer drive shaft
rotates freely.
Axle Shaft
Axle Nut
