16. STARTING SYSTEM
16-5
Measure the clutch cover O.D.
Service Limit: 27.94 mm replace if over
Idle Gear Shaft
Starter Idle Gear
Measure the starter idle gear I.D.
Service Limit: 10.05 mm replace if over
Measure the starter idle gear shaft O.D.
Service Limit: 9.94 mm replace if below

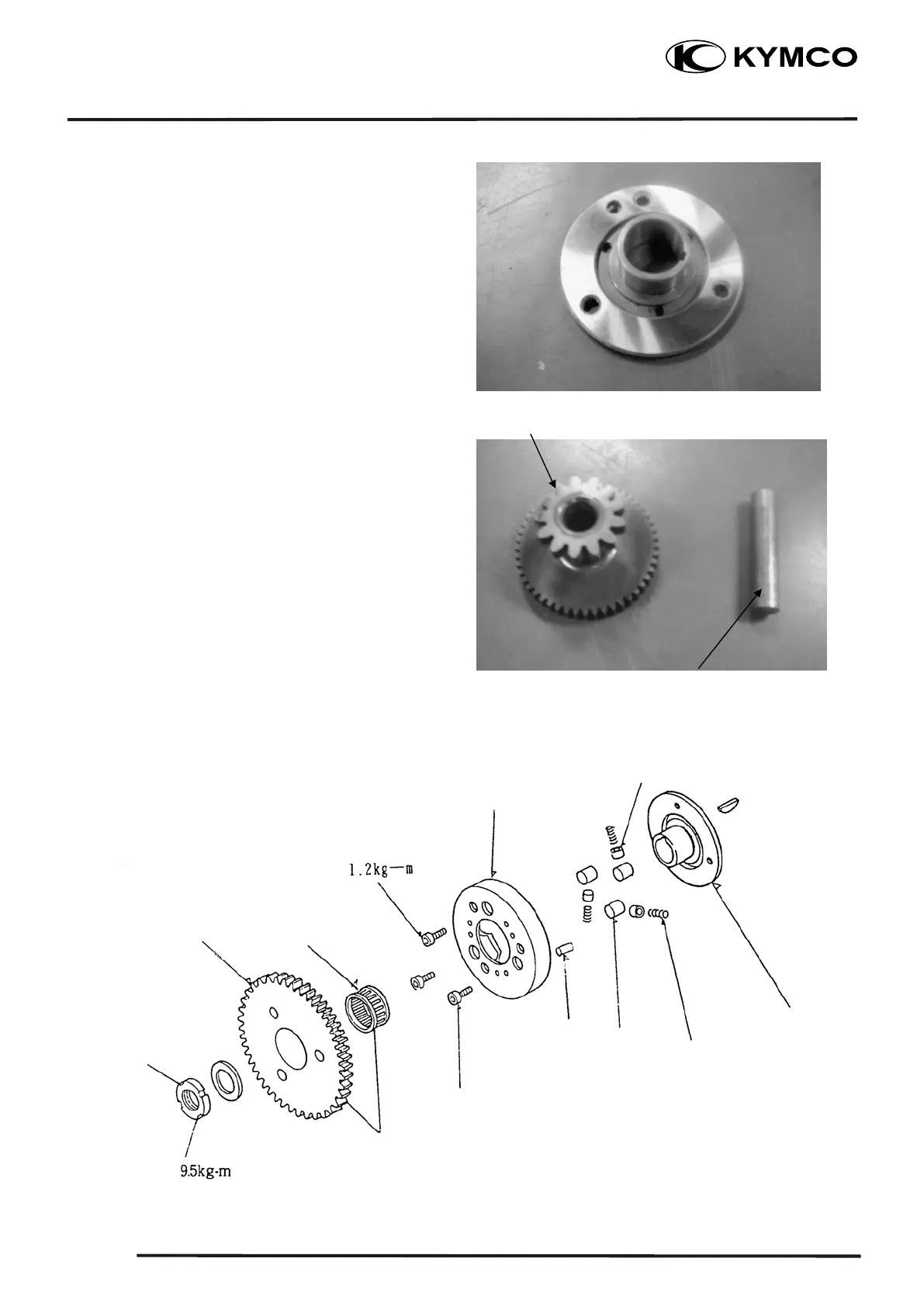

Plunger
Clutch Cover
Spring
Roller
Anchor Pin
Clutch Body
Cap Bolt
Needle Bearing
Starter Drive Gear
Lock Nut
