19-6
DATA ANALYSIS

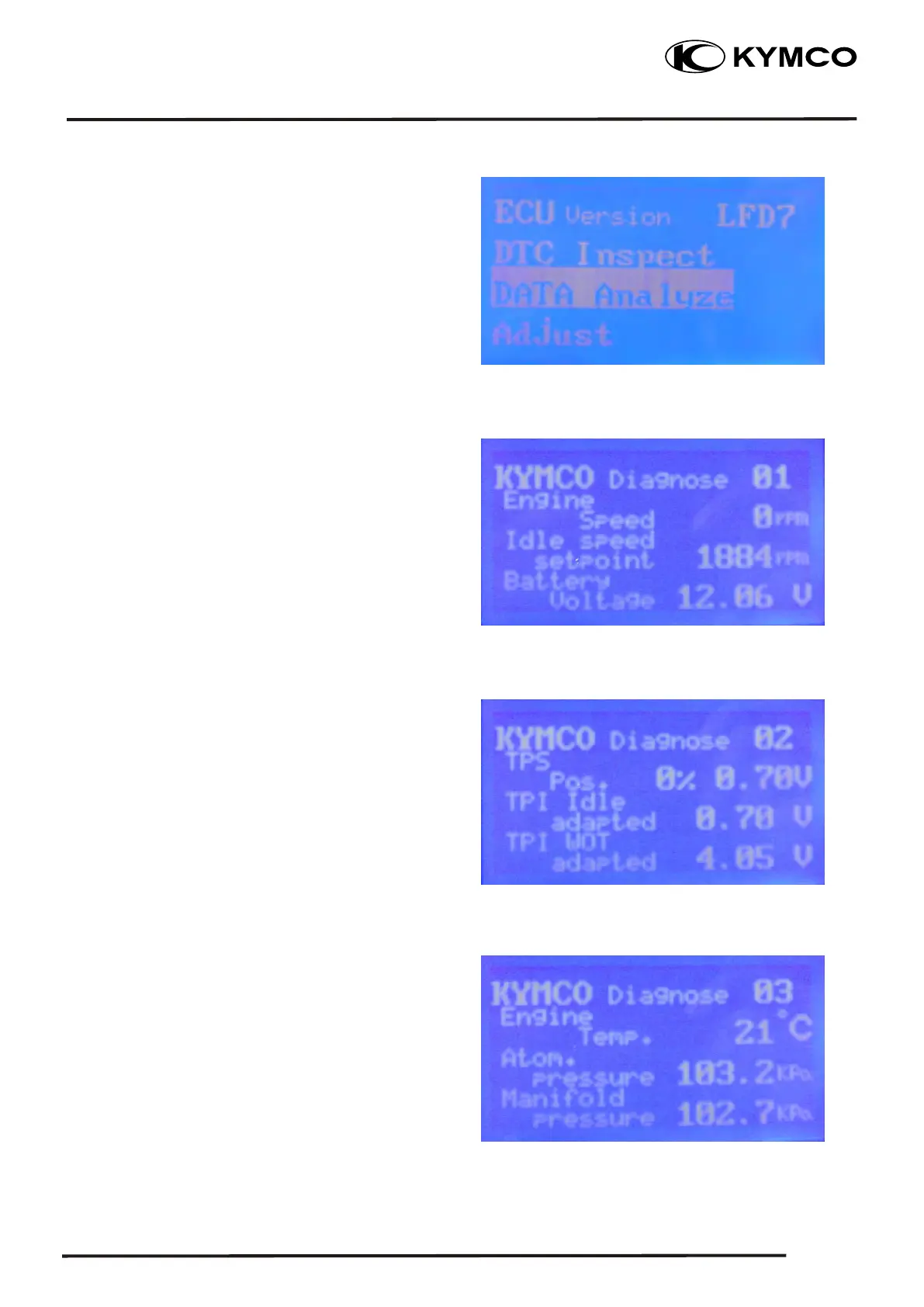

Choose " Data Analyze "
Press the " Enter " button to enter page 01.
The figure includes engine speed, idle speed
setpoint and battery voltage.
Refer to standard specifications on page 19-8.
Press the " Down " button to enter page 02.
The figure includes TPS position, TPI idle adapted
voltage and TPI WOT adapted (Throttle grip fully
opened).
Refer to standard specifications on page 19-8.
Press the " Down " button to enter page 03.
The figure includes engine working temperature,
atmosphere pressure and manifold pressure.
Refer to standard specifications on page 19-8.
Press the " Down " button to enter page 04.
