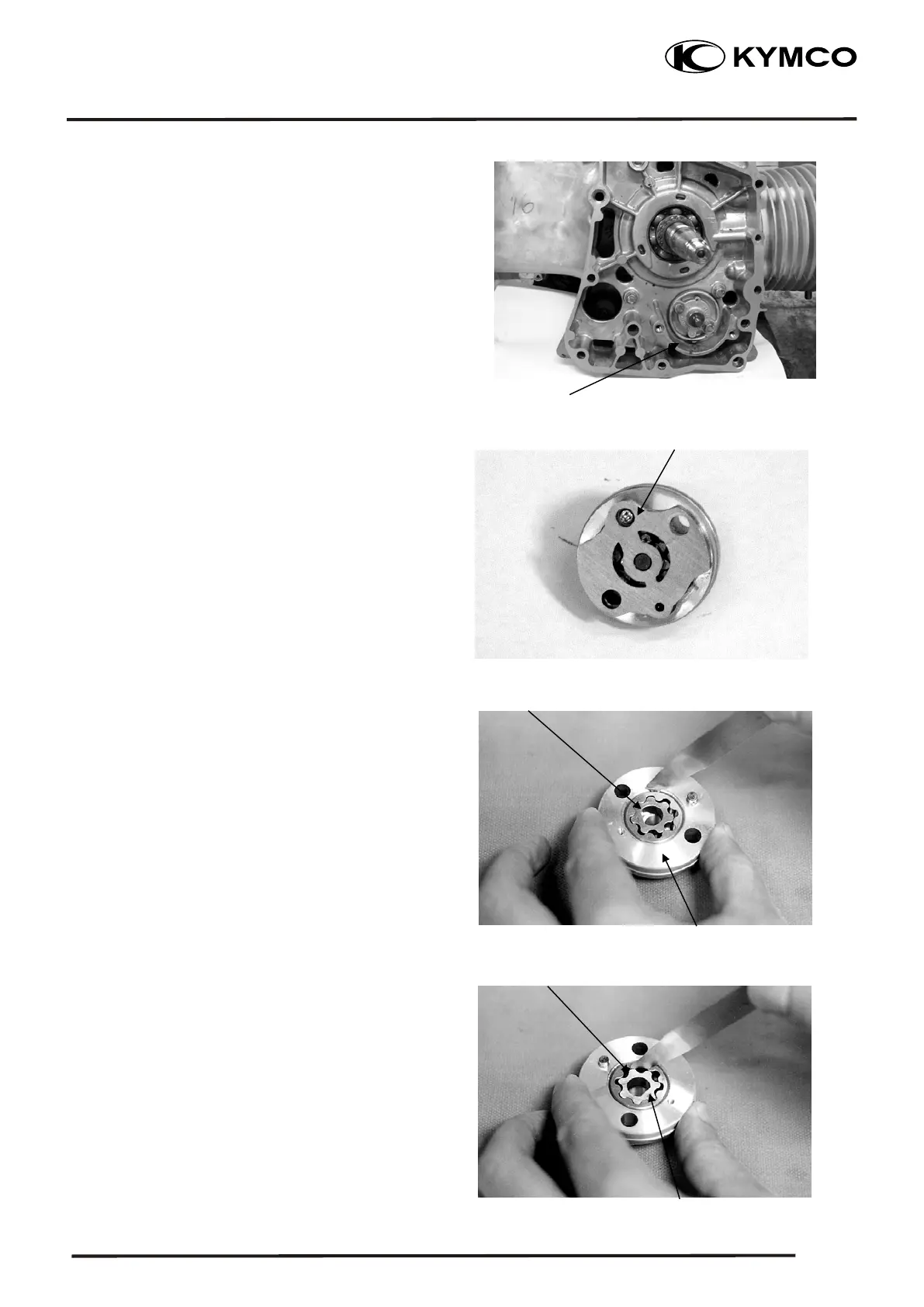

Remove two oil pump mounting bolts and the oil

pump.

Remove the screw and disassemble the oil pump.

INSPECTION

Measure the pump body-to-outer rotor clearance.

Service Limit: 0.12 mm

Measure the inner rotor-to-outer rotor clearance.

Service Limit: 0.12 mm

4. LUBRICATION SYSTEM

4-4

Screw

DISASSEMBLY

Outer rotor

Pump bady

Outer rotor

Inner rotor

Oil pump
