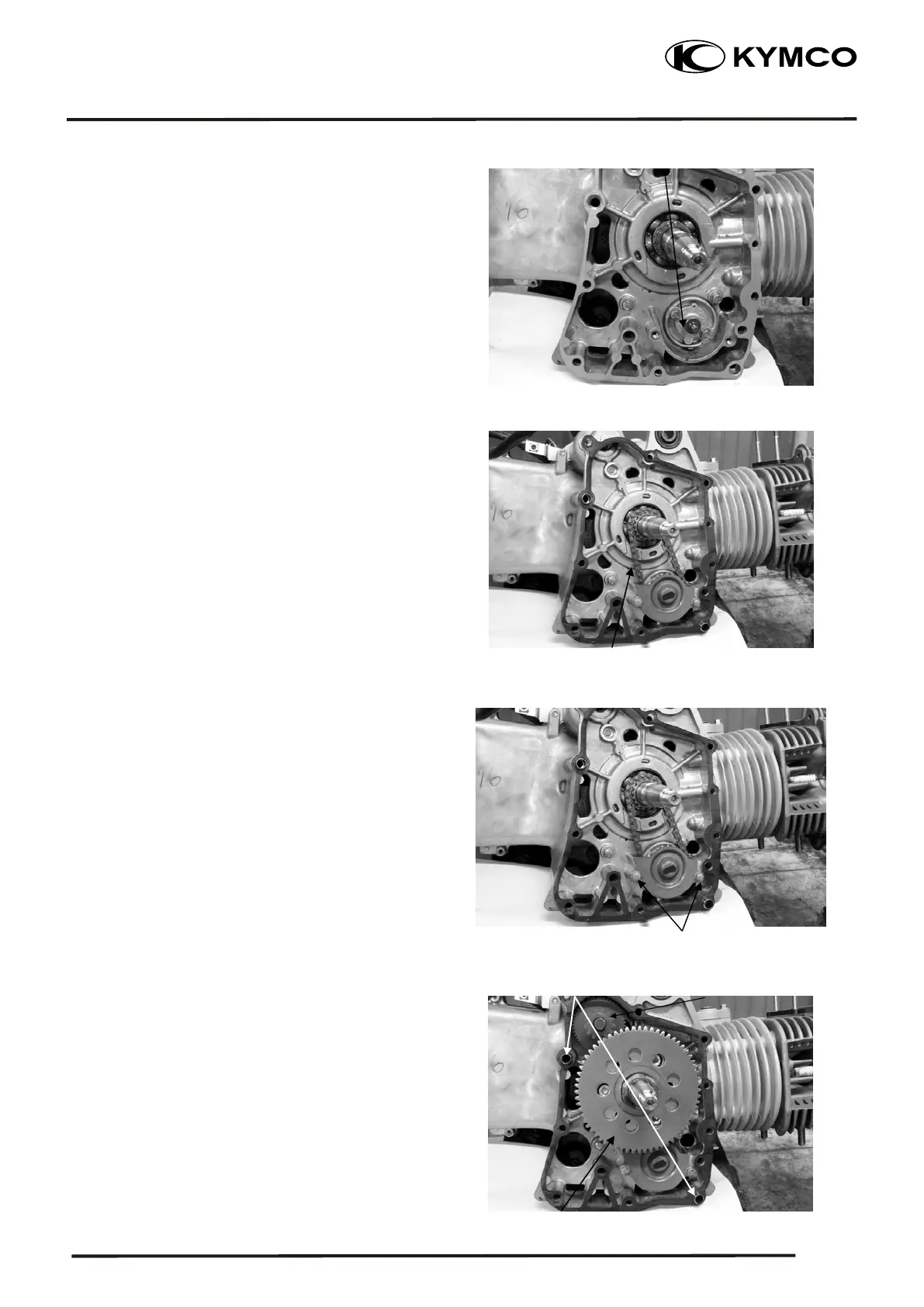

After the oil pump is installed, tighten the two
mounting bolts.
Install the pump driven gear and drive chain by
aligning the pump driven gear with the cutout in
the pump shaft.
Install and tighten the pump driven gear nut.
Torque: 1.0 kg-m
Install the oil separator cover and tighten the bolts.
4. LUBRICATION SYSTEM
4-6
Oil pump
Dowel Pins
Dowel Pins
Starter idle gear
Starter clutch
Install the starter idle gear and starter clutch.
Install the gasket and dowel pins.
Drive chain
