5.3 Cleaning the Printer
5-9
2

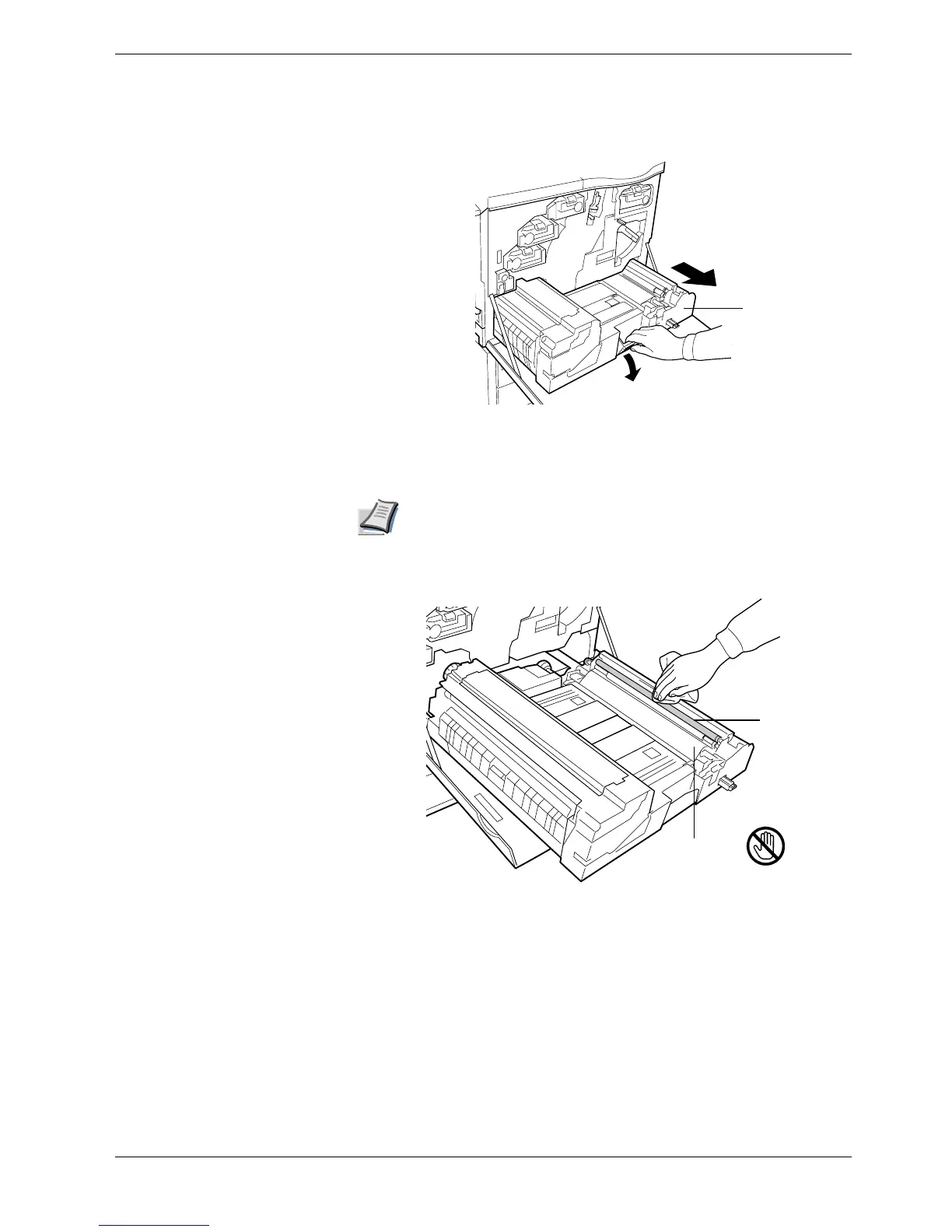

Grasp handle on the paper transfer unit and slowly pull it out.
Figure 5-11
3
Clean the registration roller (metal) using the cleaning cloth.
Be careful not to touch the transfer belt (brown) during cleaning as
this may adversely affect print quality.
Figure 5-12
Paper Transfer Unit
Note
Registration
Roller [Metal]
Transfer Belt
