Install the ferrite core
If a ferrite core is supplied for the destination, follow the following procedure and fit the ferrite core to the
modular cables.
1. Open the ferrite core by releasing the
two latches.
2. Install the ferrite core onto the modular
connecter cable.
3. Wind the modular cables around the
ferrite core.
*: Fit the ferrite core on the cables at a dis-
tance 35 mm ± 10 mm from the terminal.
4. Close the ferrite core by snapping the
two latches in.

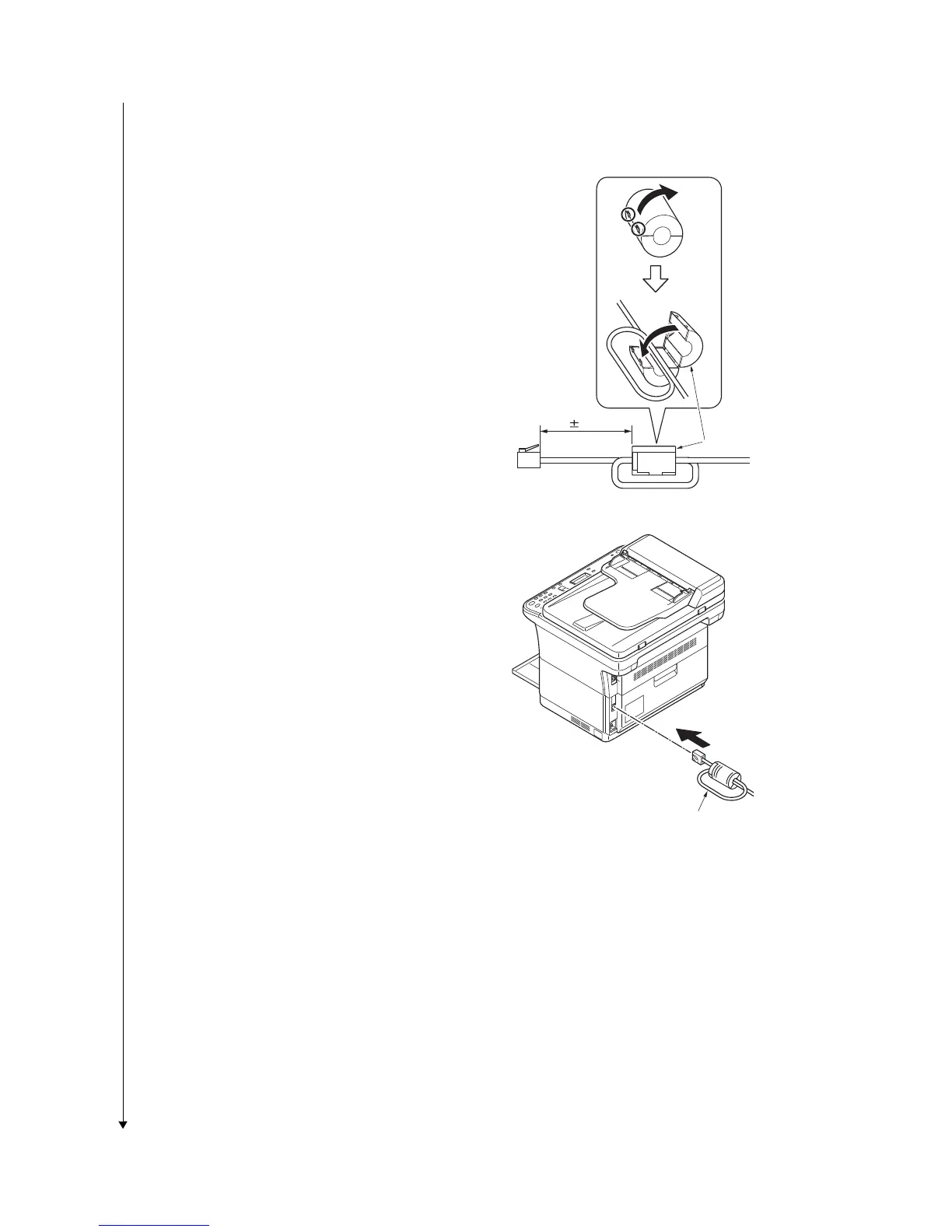

Figure 1-2-29
35 10 mm
Ferrite core
Modular cable
