5. Remove the connector.

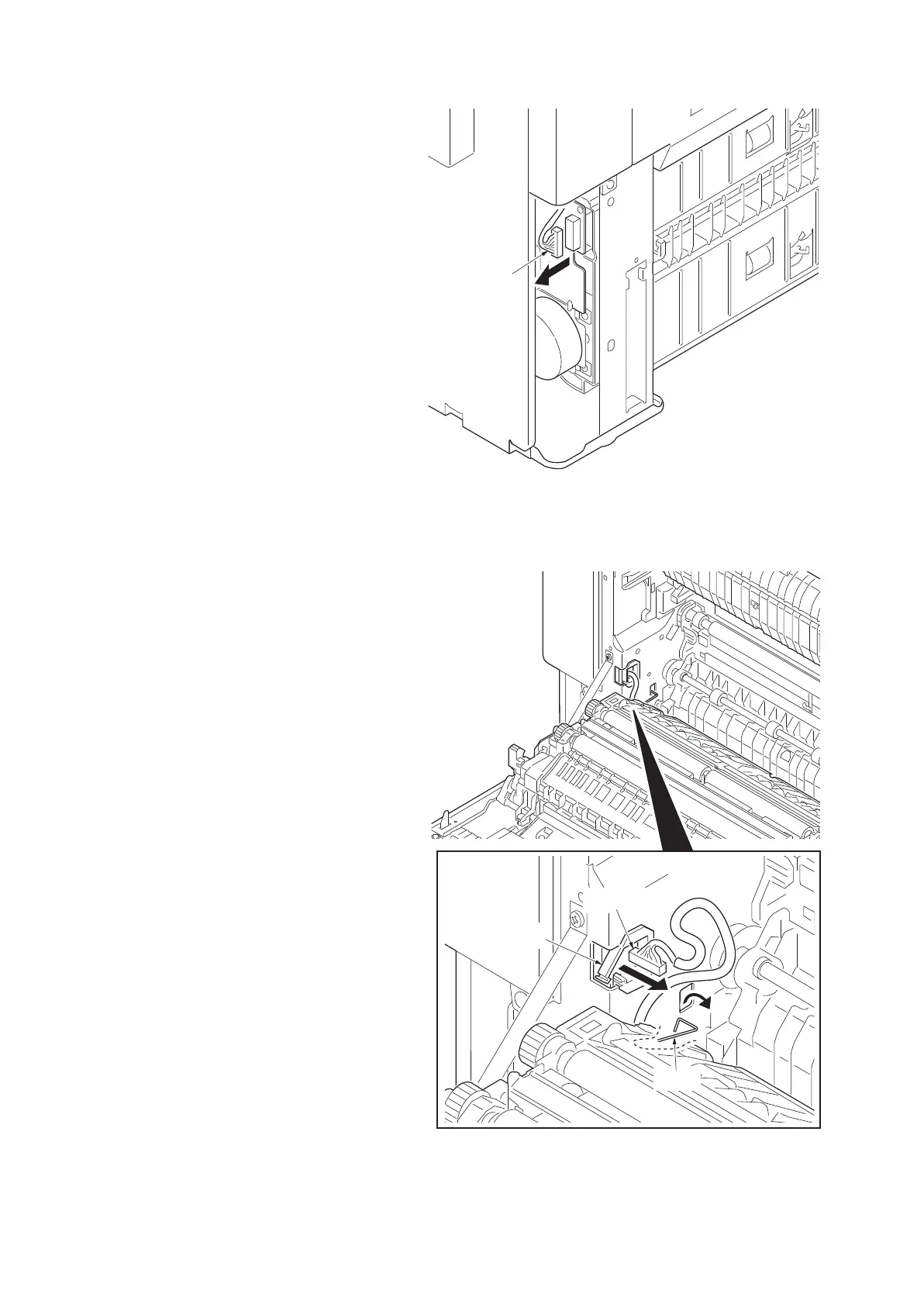

Figure 1-5-64
6. Release the wire saddle and pull the con-
nector out of the machine rear frame.
7. Remove the spring.
Figure 1-5-65
Connector
Connector
Wire saddle
Spring
