2KA
1-5-39

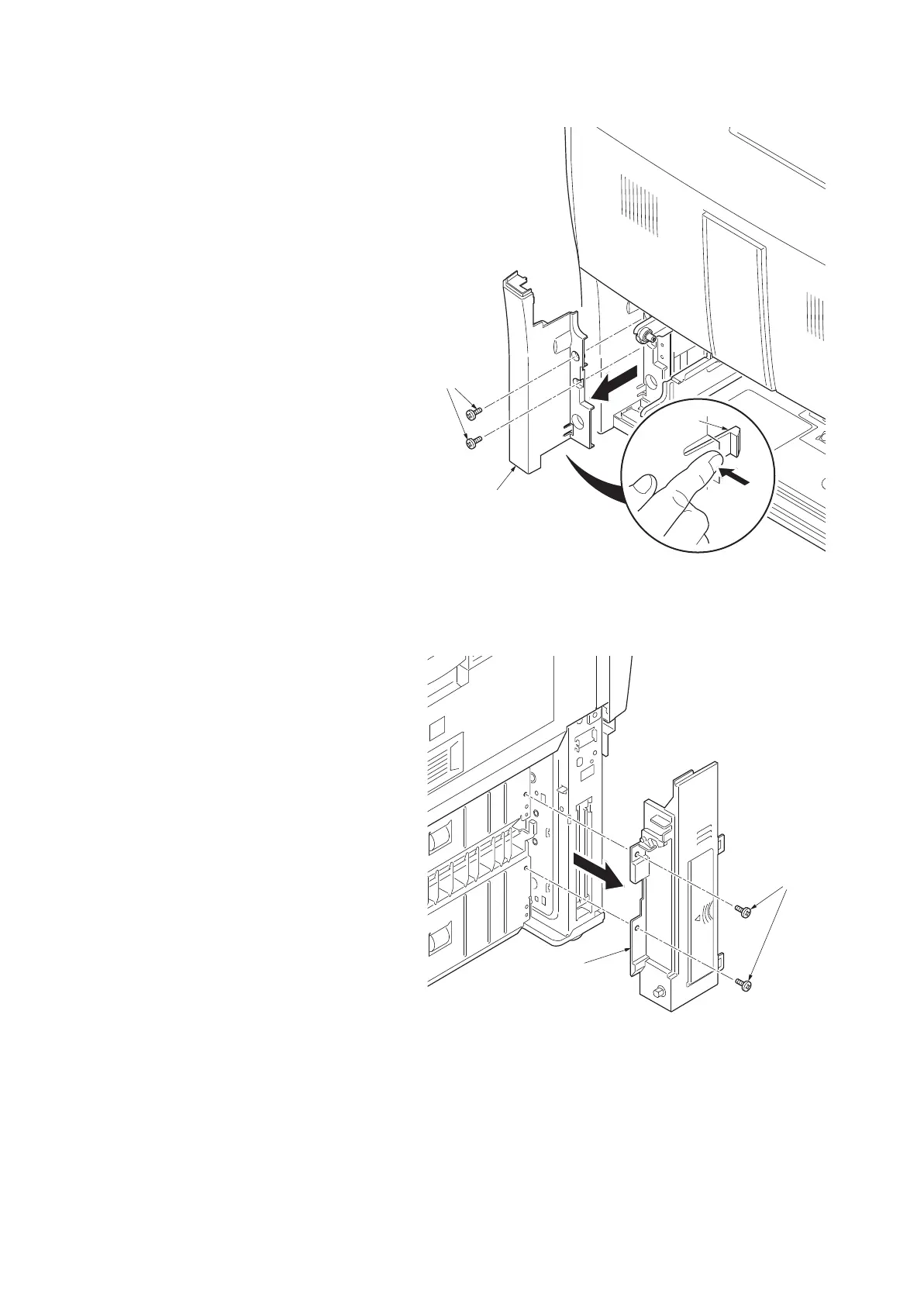

8. Remove cassette 1 and 2.
9. Remove two screws.
10. Release the hook and then remove the front
left cover 2.
Figure 1-5-66
11. Close the left cover 1 (paper conveying
unit).
12. Remove two screws and then remove the
left lower cover 1.
Figure 1-5-67
Screws
Front left cover 2
Hook
Screws
Left lower
cover 1
