Kyocera FS-C8500DN - Page 262

2KA
1-5-40

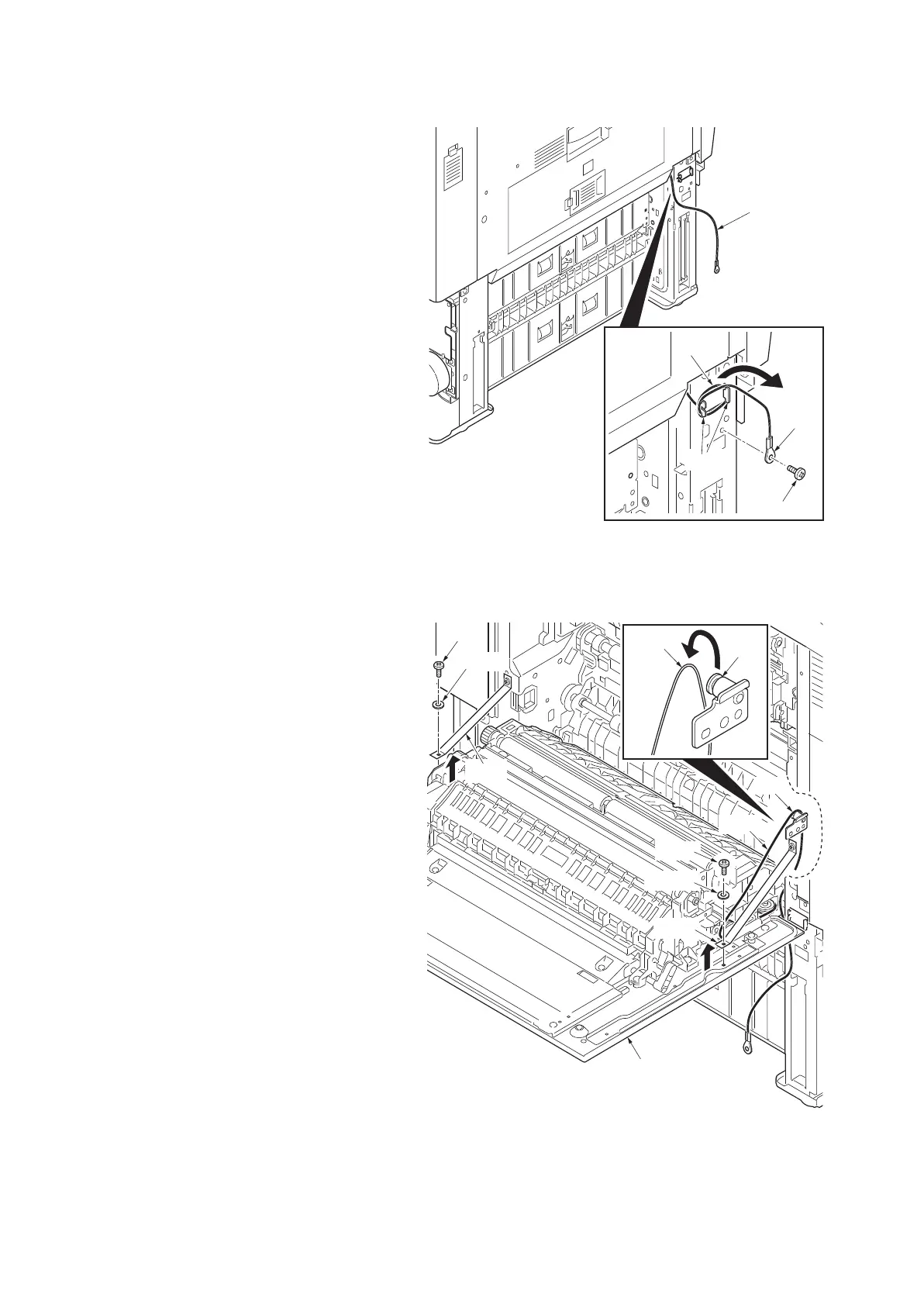

13. Remove the screw and then remove the ter-
minal.
14. Remove the wire from two hooks.
Figure 1-5-68
15. Open the left cover 1 (paper conveying unit).
16. Remove the wire from pin.
17. Remove two screws and two washers and
then remove two straps.
Figure 1-5-69
Screw
Terminal
Wire
Hooks
Wire
Screw
Wire
Wire
Pin
Pin
Washer
Screw
Strap
Left cover 1
(paper conveying unit)
Strap
Washer
