Kyocera FS-C8500DN Service Manual

2008. 11
302H756860
C
C

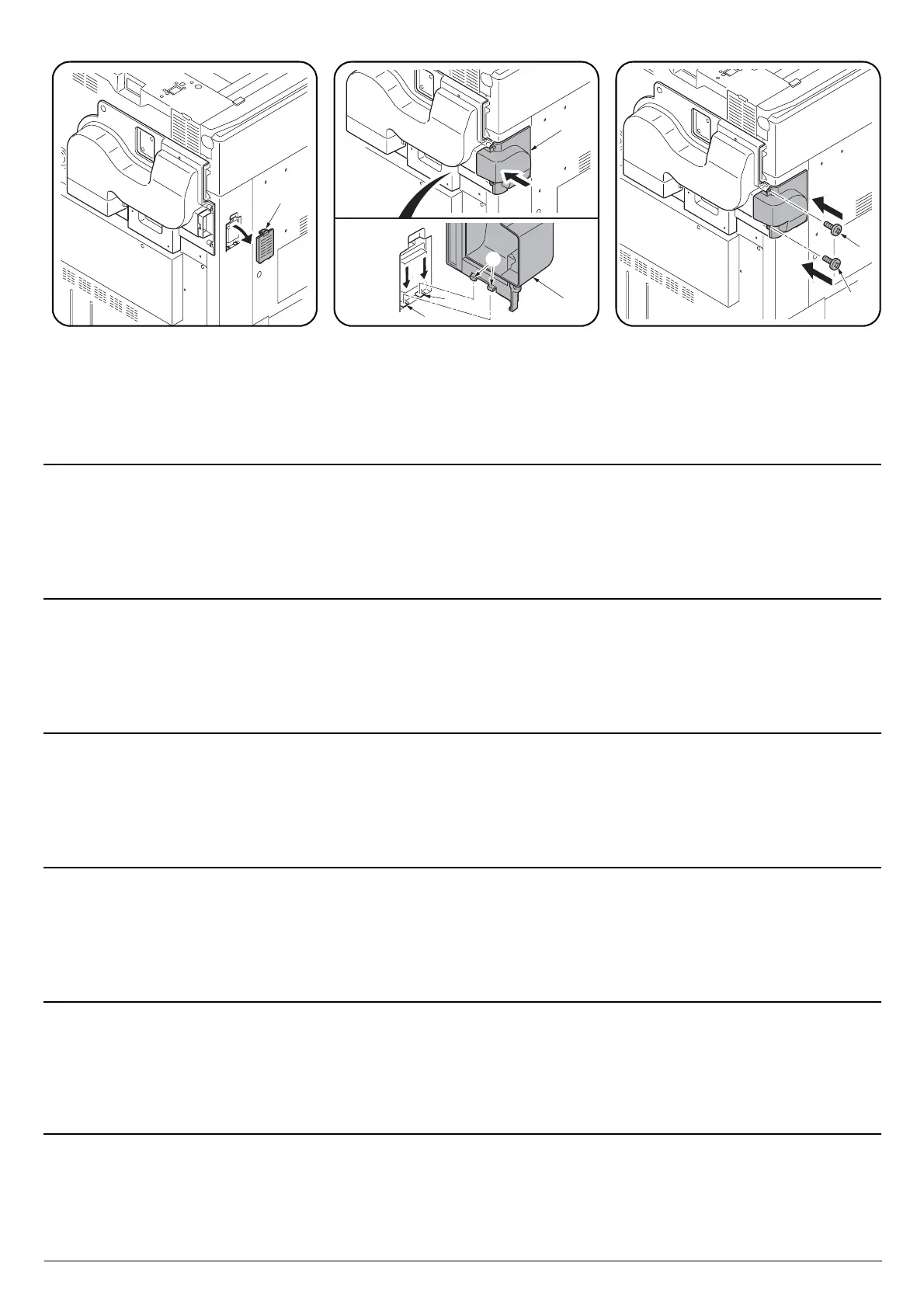

3. Remove the filter cover (2). 4. Fit the two hooks (3) on DUCT B (B) into the
two holes (4).
5. Attach DUCT B (B) using the two M3 x 8 tap-
tight P screws (C).
3. Déposer le couvercle du filtre (2). 4. Insérer les deux crochets (3) de l'encrier B
(B) dans les deux trous (4).
5. Fixer l'encrier B (B) à l'aide des deux vis P
taraudées M3 x 8 (C).
3. Quite la cubierta del filtro (2). 4. Ajuste los dos ganchos (3) del conducto B
(B) en los dos orificios (4).
5. Fije el conducto B (B) por medio de los dos
tornillos de ajuste P M3 x 8 (C).
3. Entfernen Sie die Filterabdeckung (2). 4. Setzen Sie die beiden Haken (3) an Schacht
B (B) in die zwei Öffnungen (4) ein.
5. Bringen Sie den Schacht B (B) mit den zwei
M3 x 8P Passstift-Verbundschrauben (C) an.
3. Rimuovere il coperchio del filtro (2). 4. Inserire i due ganci (3) del condotto B (B) nei
due fori (4).
5. Fissare il condotto (B) utilizzando le due viti
con testa a croce P M3 x 8 (C).
3. フィルタカバー(2) を取り外す。 4. DUCT B (B) のフック (3)2 箇所を穴 (4)2 箇
所に引っ掛ける。
5. ビス M3 × 8P タイト (C)2 本で、DUCT B (B)
を取り付ける。
3. 取下过滤器盖板（2）。 4. 将导风管 B（B）上的 2 个卡扣（3）装入 2 个安
装孔（4）中。
5. 使用 2 个 M3 × 8 P 型自攻螺丝（C）安装导风
管B（B）。
2
B
B
4
4
3

Kyocera FS-C8500DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	5.2 s
Time to first page (color, normal)	6.7 s
Print speed (black, normal quality, A3)	28 ppm
Print speed (color, normal quality, A3)	25 ppm
Print speed (black, normal quality, A4/US Letter)	55 ppm
Print speed (color, normal quality, A4/US Letter)	50 ppm
Internal memory	1024 MB
Processor model	PowerPC 750GL
Maximum internal memory	2048 MB
Sound power level (standby)	27, 26 dB
Sound pressure level (printing)	55 dB
Total input capacity	- sheets
Total output capacity	500 sheets
Maximum input capacity	100 sheets
Multi-Purpose tray input capacity	4100 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Plain paper
Paper tray media weight	60 - 220 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Standard interfaces	USB 2.0
USB 2.0 ports quantity	3
Network ready	No
Power requirements	220/240 V, 50/60 Hz
Wireless option type	Wireless LAN (802.11b/g)
Power consumption (active)	1250 W
Compatible operating systems	Windows, Mac OS X 10.2 +, UNIX, LINUX
Maximum duty cycle	150000 pages per month
Recommended duty cycle	25000 pages per month
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	200 W
Power consumption (PowerSave)	15 W
Display	LCD
Certification	GS, TÜV, CE

Weight and Dimensions

Dimensions (WxDxH)	605 x 680 x 691 mm
