LACO ORIGINAL OPERATING INSTRUCTIONS TITANTEST™
88
© 2018 LACO TECHNOLOGIES, INC. - [TitanTest itna01en1-07 BA.fm] - 1807

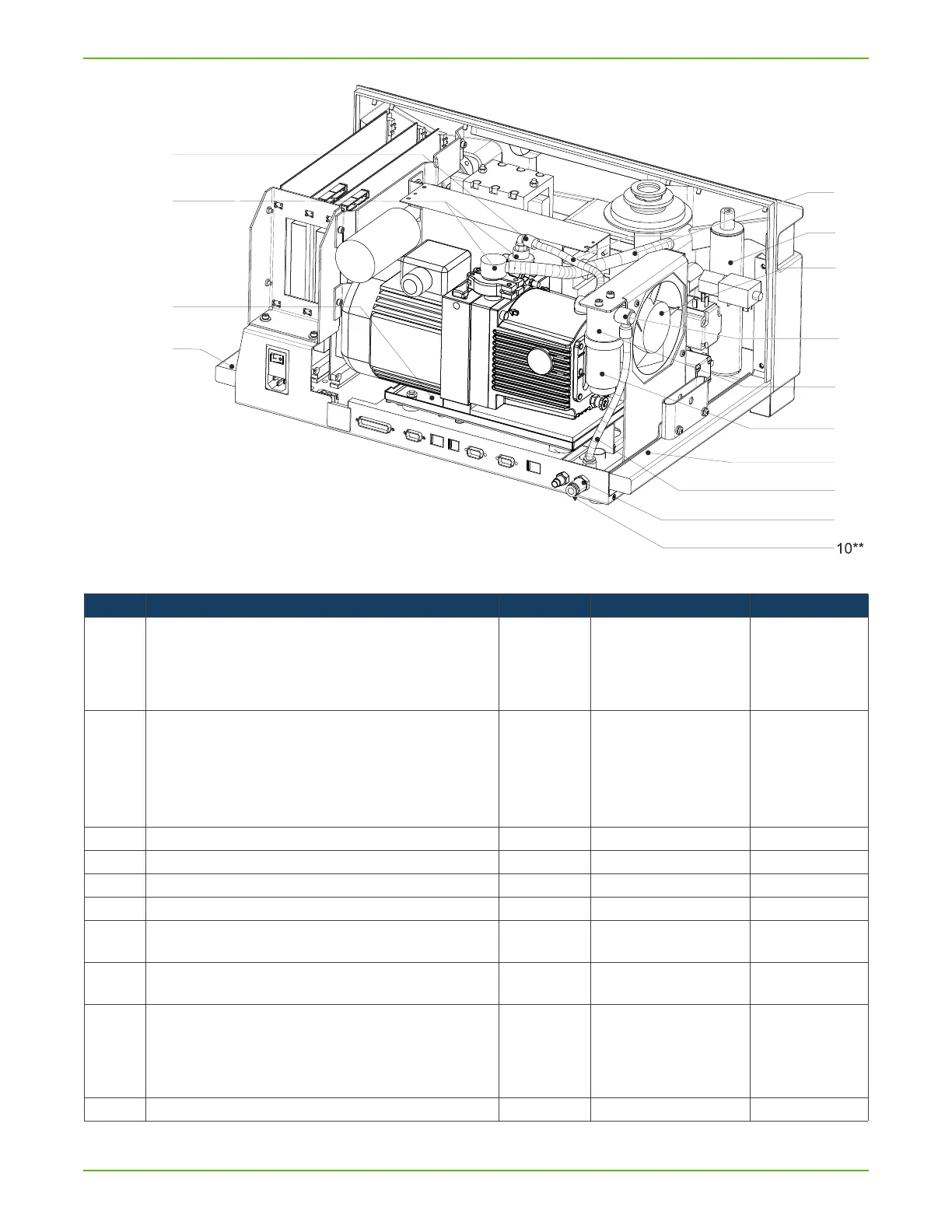

Fig. 31: TITANTEST™ M-Series, Back View * Wet Series Only / ** Dry Series Only













Pos. Description Quantity Specifications Order No.
1* Exhaust Fittings
–Elbow Fitting
– Straight Fitting
– Straight Fitting with filter and gasket
1
3
1
1
1/8“ - 8 mm
8 mm
EV13/06N
T10019
2* Fore Pump Intake & Exhaust Flange Assemblies
–Fore Pump Flange
– Exhaust Flange
– Clamping Ring
–Hose Clamp
1
1
1
2
2
DN16 - G 1/4"
DN16 - G1/8 "
DN 10/16KF
10-16/8
T10020
3* Oil Tray 1 T10021
4 Handle right and left 2 T10022
5 Calibrated Leak Assembly with Valve 1 CM102492
6 Cooling Fan 1 24 V T10011
7* Oil Mist Filter without Fittings 1 T10024-M for M-series
T10024-P for P-series
8* Oil Mist Filter Cartridge 1 T10025-M for M-series
T10025-P for P-series
9* Set of Hoses
– Hose 4 mm x 1 mm
– Hose 5 mm x 1,5 mm
– Hose 10 mm x 3 mm
1
1
1
1
L=500 mm
L=500 mm
L=500 mm
T10026
10** External Pump Connection Kit 1 T10076
