LAUNCH X-431 PAD III User Manual
45

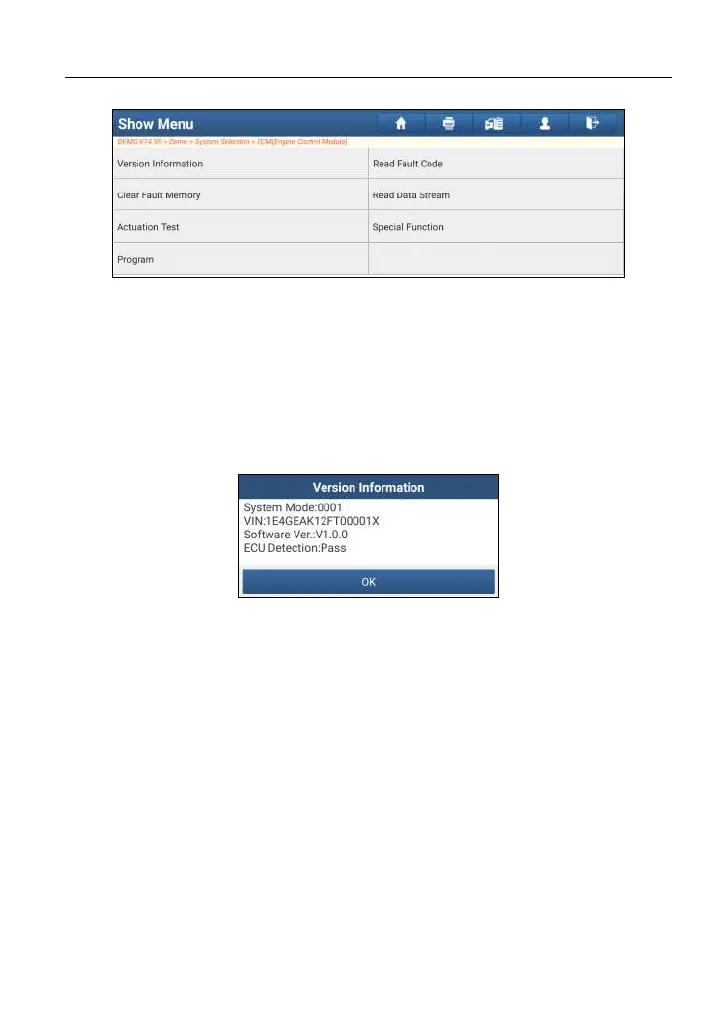

Fig. 5-24
*Note: Different vehicle has different diagnostic menus.
A. Version Information
This function is used to read the version information of system mode, vehicle
VIN, software and ECU.
In Fig. 5-24, tap “Version Information”, the screen displays as Fig. 5-25.
Fig. 5-25
Tap “OK” to confirm and exit.
B. Read Fault Code
This function displays the detailed information of DTC records retrieved from the
vehicle’s control system.
In Fig. 5-24, tap “Read DTC”, the screen will display the diagnostic result.
