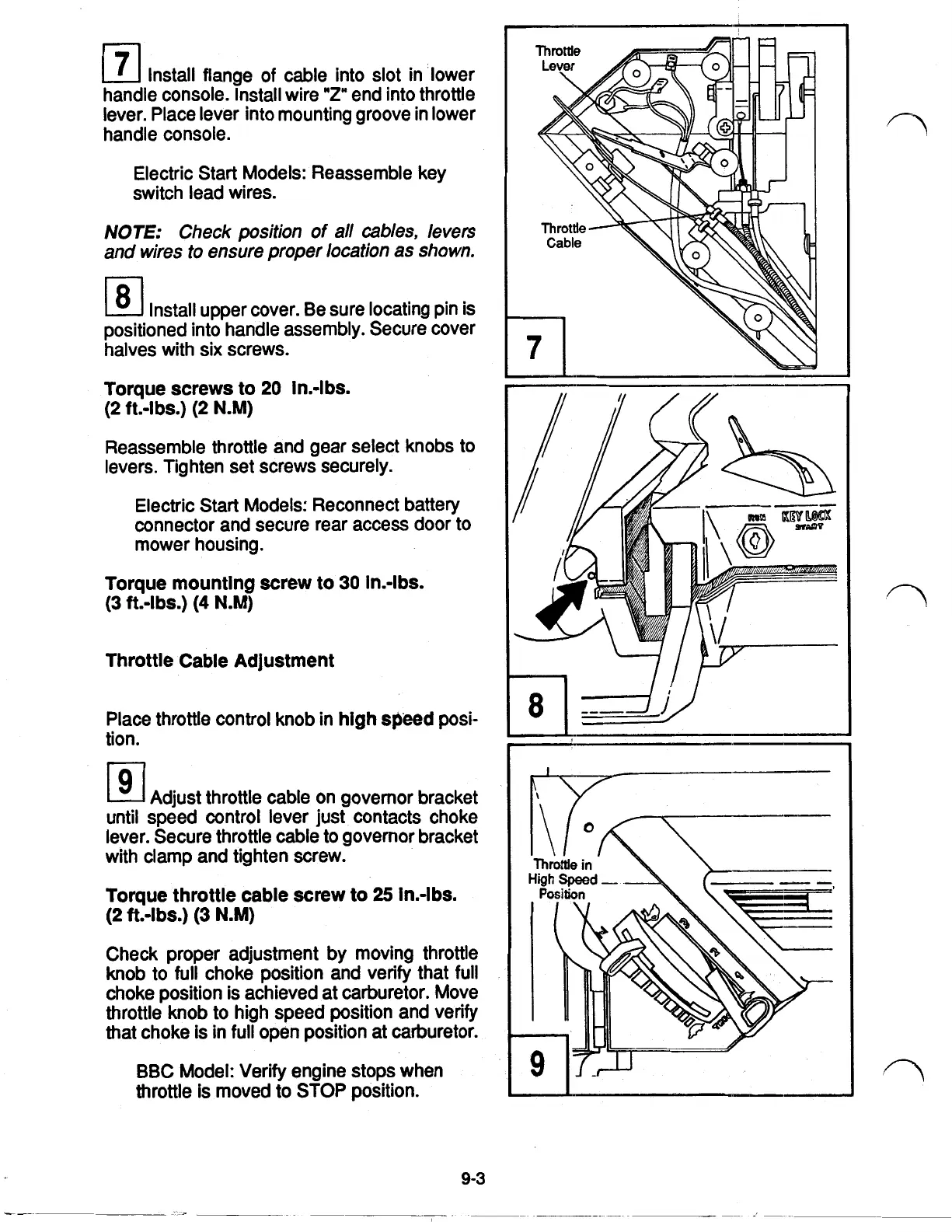

7
Install flange of cable into slot in :lower
handle console. Install wire
"Z"
end into throttle
lever. Place lever into mounting groove in lower
handle console.
Electric Start Models: Reassemble key
switch lead wires.
NOTE:
Check position
of
all cables, levers
and
wires to ensure proper location as shown.
8
Install upper cover. Be sure locating pin is
positioned into handle assembly. Secure cover
halves with
six
screws.
Torque screws to 20 In.-lbs.
(2
ft.-lbs.)
(2
N.M)
Reassemble throttle and gear select knobs to
levers. Tighten set screws securely.
Electric Start Models: Reconnect battery
connector and secure rear access door to
mower housing.
Torque mounting
screw
to
30
In.-lbs.
(3
ft.-lbs.)
(4
N.M)
Throttle Cable Adjustment
Place throttle control knob in
high
sped
posi-
tion.
9
Adjust throttle cable on governor bracket
until speed control lever just contacts choke
lever. Secure throttle cable to governor bracket
with clamp and tighten screw.
Torque throttle cable
screw
to
25
In.-lbs.
(2
ft.-lbs.)
(3
N.M)
Check proper adjustment by moving throttle
knob to
full
choke position and verify that full
choke position
is
achieved at carburetor. Move
throttle knob
to
high speed position and verify
that choke
is
in full open position at carburetor.
BBC Model: Verify engine stops when
throttle
is
moved
to
STOP
position.
9-3
