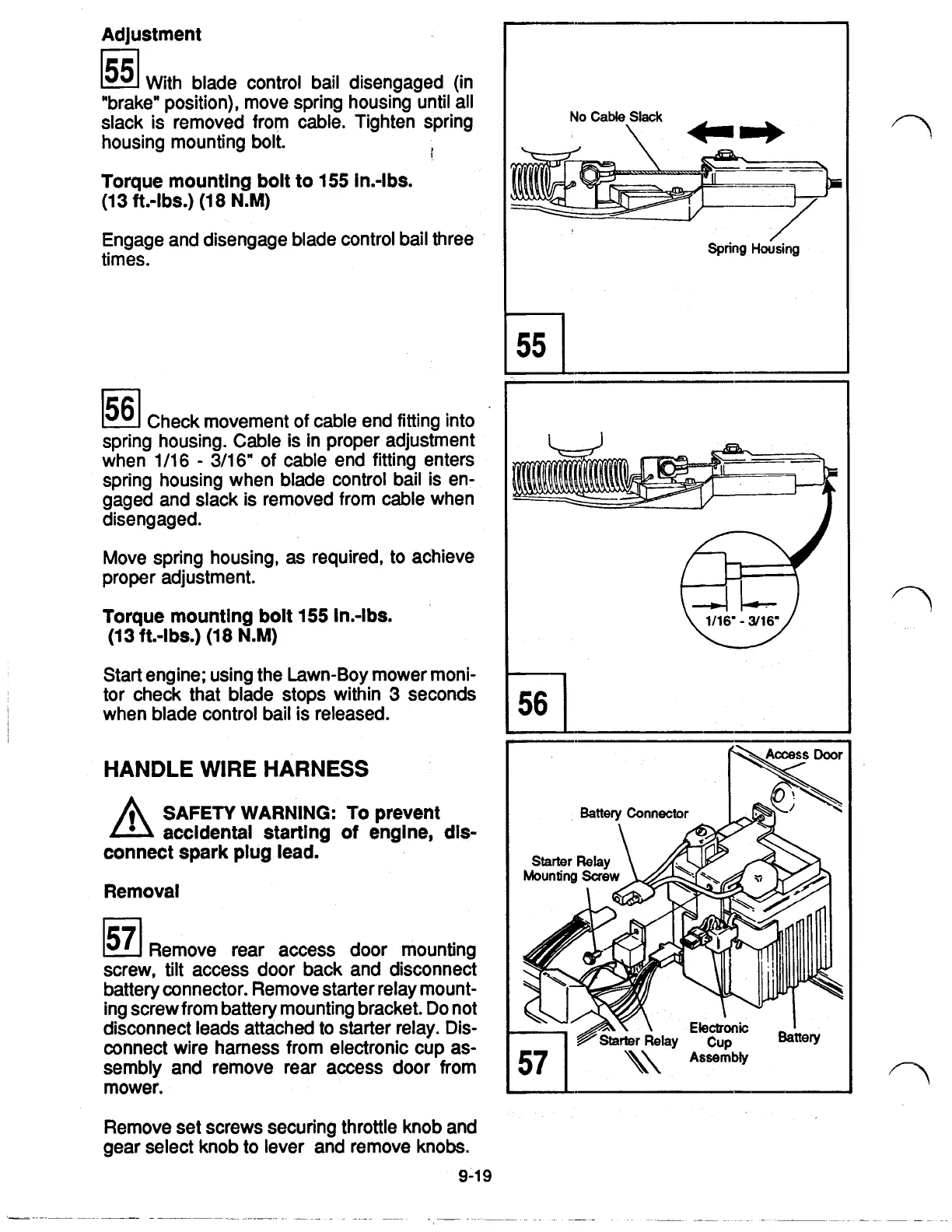

Adjustment
55
With blade control bail disengaged (in
"brake" position), move spring housing until all
slack is removed from cable. Tighten spring
housing mounting bolt.
Torque mounting bolt to 155 in.-lbs.
(13 ft.-lbs.) (18
N.M)
Engage and disengage blade control bail three
times.
56
Check movement of cable end fitting into
spring housing. Cable is in proper adjustment
when
1/16
3/16"
of cable end fitting enters
spring housing when blade control bail is en-
gaged and slack is removed from cable when
disengaged.
Move spring housing,
as
required, to achieve
proper adjustment.
Torque mounting bolt 155 In.-lbs.
(13 ft.-lbs.) (18
N.M)
Start engine; using the Lawn-Boy mower moni-
tor check that blade stops within
3
seconds
when blade control bail is released.
HANDLE
WIRE
HARNESS
A
SAFETY
WARNING:
To
prevent
accidental starting of engine, dis-
connect spark plug lead.
Removal
57
Remove rear access door mounting
screw, tilt access door back and disconnect
battery connector. Remove starter relay mount-
ing screw from battery mounting bracket. Do not
disconnect leads attached
to
starter relay. Dis-
connect wire harness from electronic cup as-
sembly and remove rear access door from
mower.
No
Cable
Slack
\
Spring
Hoking
56
I
Remove
set
screws securing throttle knob and
gear select knob
to
lever and remove knobs.
9-19
