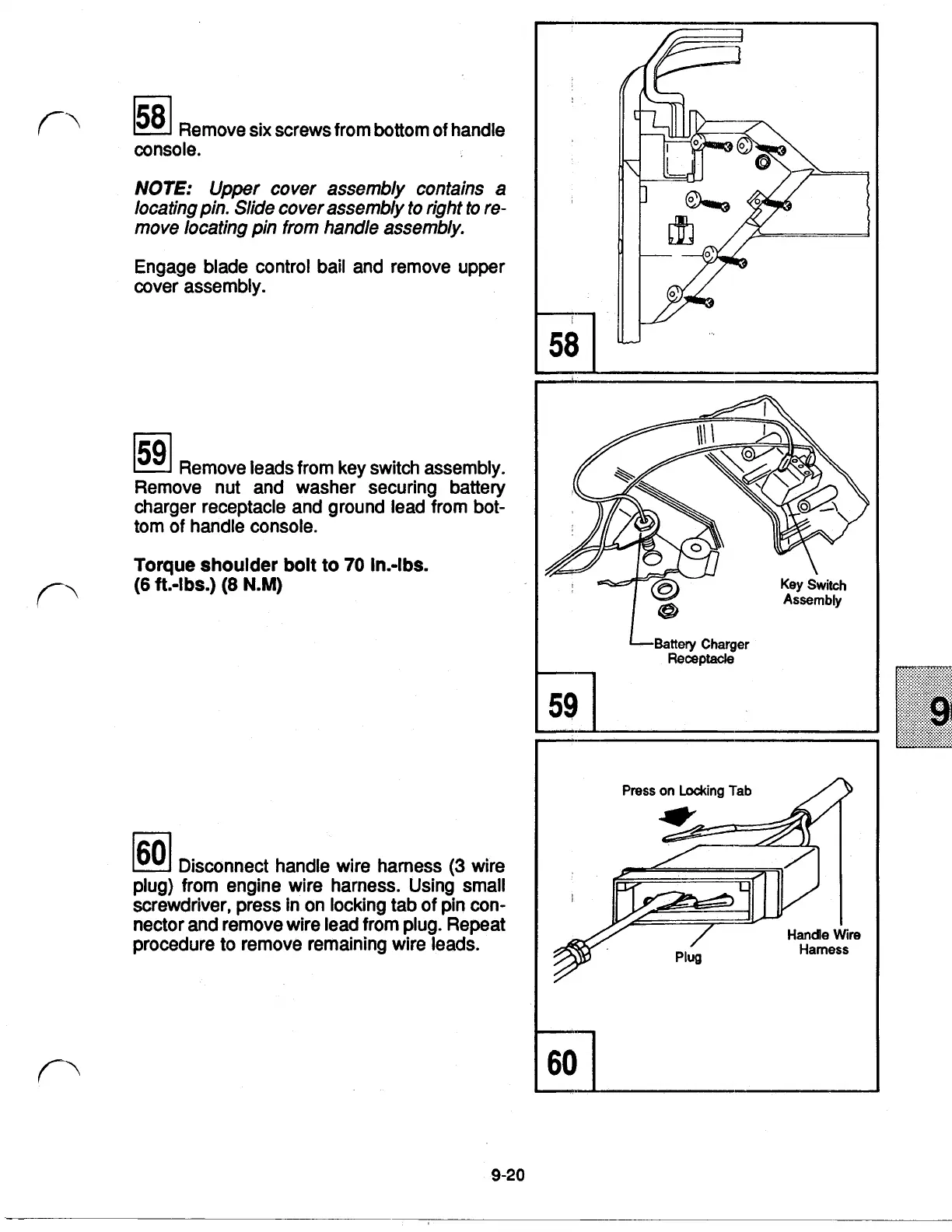

Remove six screws from bottom of handle
console.
NOTE:
Upper cover assembly contains
a
locating pin. Slide cover assembly to right to re-
move locating pin from handle assembly.
Engage blade control bail and remove upper
cover assembly.
59
Remove leads from key switch assembly.
Remove nut and washer securing battery
charger receptacle and ground lead from bot-
tom
of
handle console.
Torque
shoulder bolt to
70
In.-lbs.
(6
ft.-lbs.)
(8
N.M)
58
I
Press
on
Locking
Tab
60
Disconnect handle wire harness
(3
wire
plug) from engine wire harness. Using small
screwdriver, press in on locking tab of pin con-
nector and remove wire lead from plug. Repeat
procedure to remove remaining wire leads.
Harness
9-20
