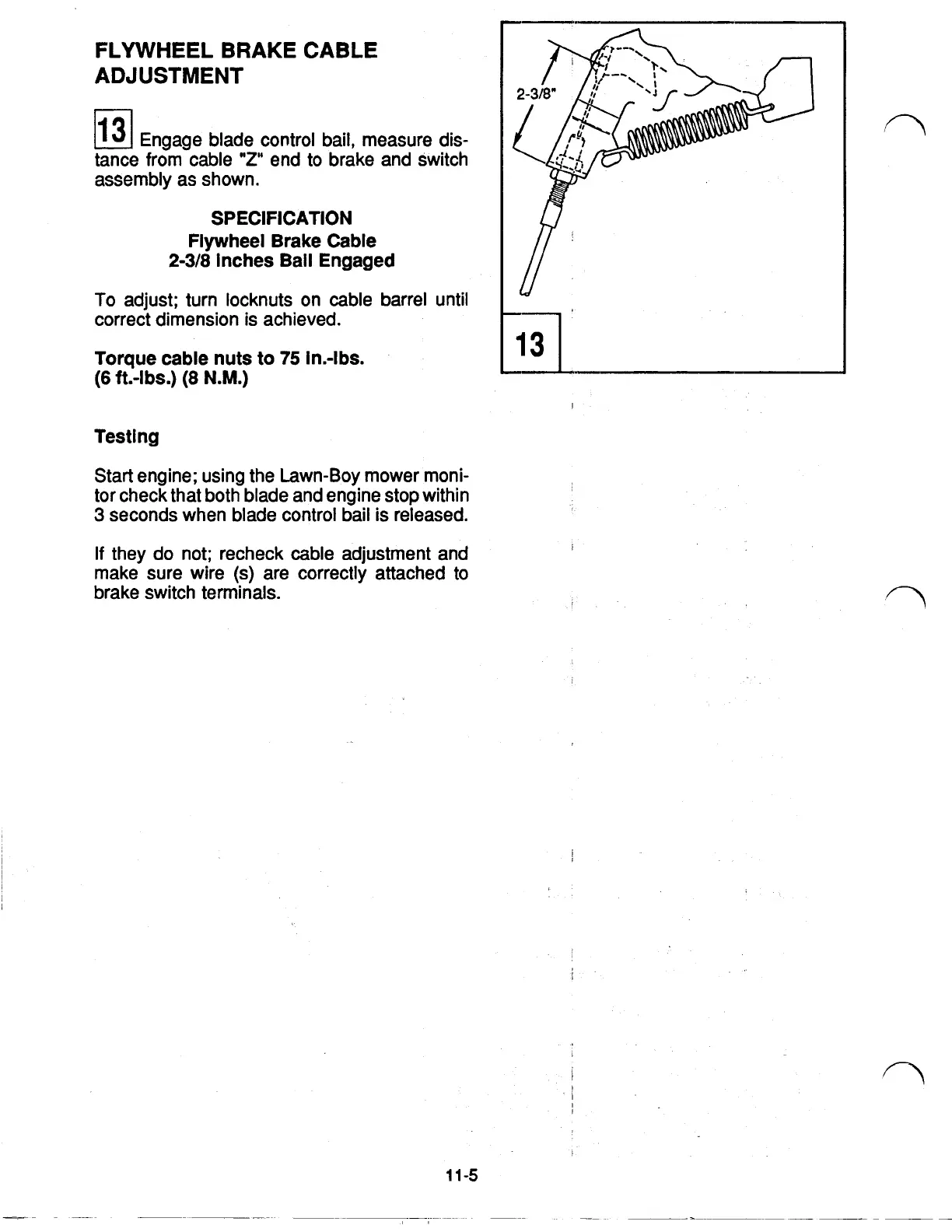

FLYWHEEL BRAKE CABLE
ADJUSTMENT
13
Engage blade control bail, measure dis-
tance from cable
“z”
end to brake and switch
assembly as shown.
SPECIFICATION
Flywheel Brake Cable
2-3/8
inches Ball Engaged
To
adjust; turn locknuts on cable barrel until
correct dimension is achieved.
Torque cable nuts
to
75
In.-lbs.
(6
ft.-lbs.)
(8
N.M.)
Testing
Start engine; using the Lawn-Boy mower moni-
tor check that both blade and engine stop within
3
seconds when blade control bail
is
released.
If
they do not; recheck cable adjustment and
make sure wire
(s)
are correctly attached to
brake switch terminals.
