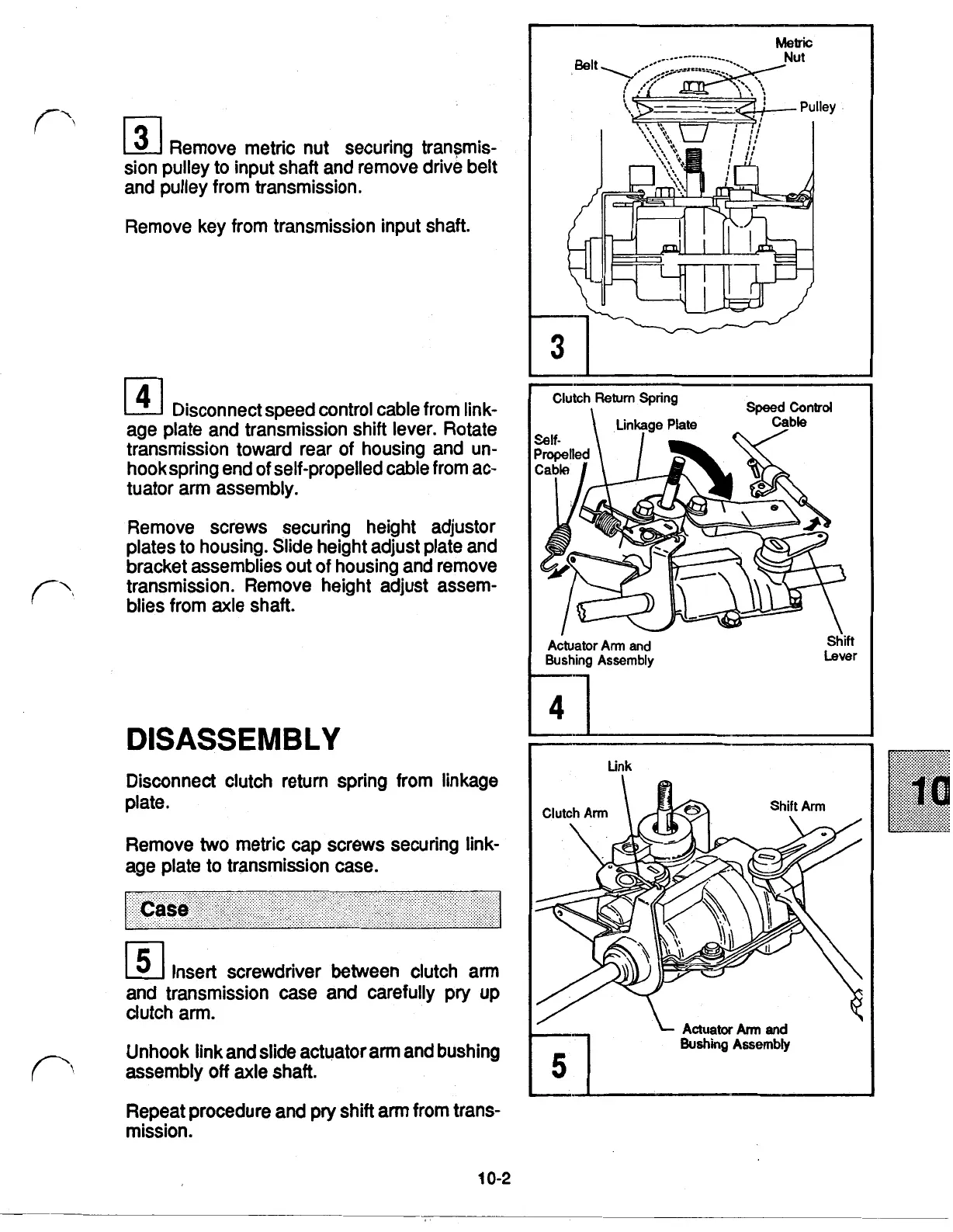

3
Remove metric nut securing transmis-
sion pulley to input shaft and remove drive belt
and pulley from transmission.
Remove key from transmission input shaft.
4
Disconnect speed control cable from link-
age plate and transmission shift lever. Rotate
transmission toward rear of housing and un-
hookspring end of self-propelled cable from ac-
tuator arm assembly.
Remove screws securing height adjustor
plates to housing. Slide height adjust plate and
bracket assemblies out of housing and remove
transmission. Remove height adjust assem-
blies from axle shaft.
DISASSEMBLY
Disconnect clutch return spring from linkage
plate.
Remove
two
metric cap screws securing link-
age plate to transmission case.
5
Insert screwdriver between clutch arm
and transmission case and carefully pry up
clutch arm.
Unhook link and slide actuator arm and bushing
assembly
off
axle shaft.
I
Metric
Clutch
Return
Spring
Speed
Control
Actuator Arm
and
Bushing
Assembly
4
Link
I
Actuator Arm and
Bushing
Assembly
Repeat procedure and pry shift arm from trans-
mission.
10-2
