15

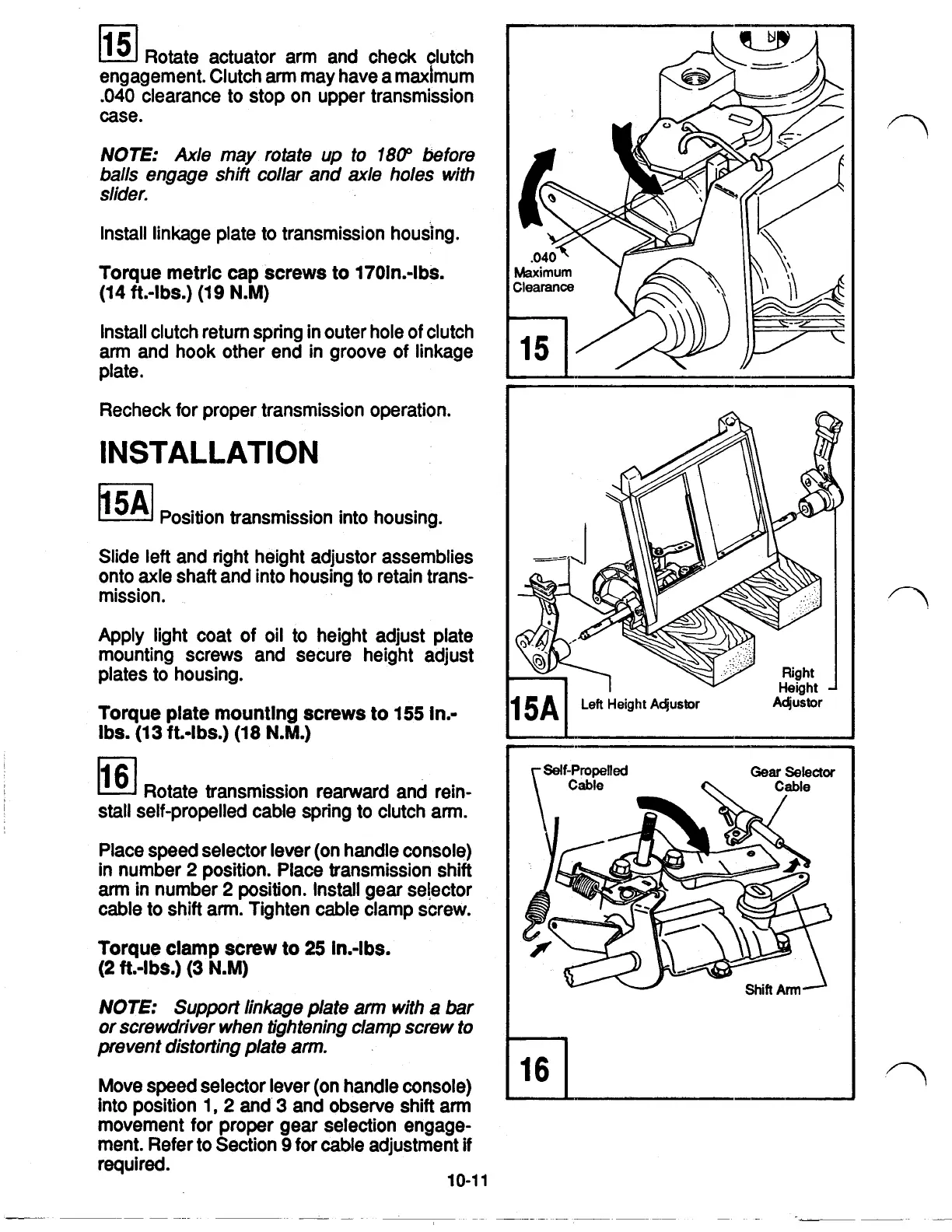

Rotate actuator arm and check clutch
engagement. Clutch arm may have a maximum
.040
clearance to stop on upper transmission
case.
NOTE: Axle may rotate up
to
180"
before
balls engage
shift
collar and axle holes with
slider.
Install linkage plate to transmission housing.
Torque metric cap screws to 170ln.-lbs.
Install clutch return spring in outer hole
of
clutch
arm
and hook other end in groove of linkage
plate.
Recheck for proper transmission operation.
(14 ft.-lbs.) (19
N.M)
INSTALLATION
15
Position transmission into housing.
Slide left and right height adjustor assemblies
onto
axle
shaft and into housing to retain trans-
mission.
Apply light coat of oil to height adjust plate
mounting screws and secure height adjust
plates to housing.
Torque plate mountlng screws to 155
In.-
IbS.
(13
ft.-lbs.) (18
N.M.)
Rotate transmission rearward and rein-
stall self-propelled cable spring
to
clutch arm.
Place speed selector lever (on handle console)
in number
2
position. Place transmission shift
arm
in number
2
position. Install gear selector
cable to shift arm. Tighten cable clamp screw.
Torque clamp
screw
to
25
In.-lbs.
NOTE: Support linkage plate arm with
a
bar
or screwdriver when tightening clamp screw
to
prevent distorting plate
arm.
Move speed selector lever (on handle console)
into position
1,
2
and
3
and observe shift arm
movement for
proper
gear selection engage-
ment. Refer to Section
9
for cable adjustment
if
required.
(2
ft.-IbS.)
(3
N.M)
10-11
15A
Left
Height
Adjustor
Adjustor
I
Self-Propelled
Gear
selector
I
To Next Page
