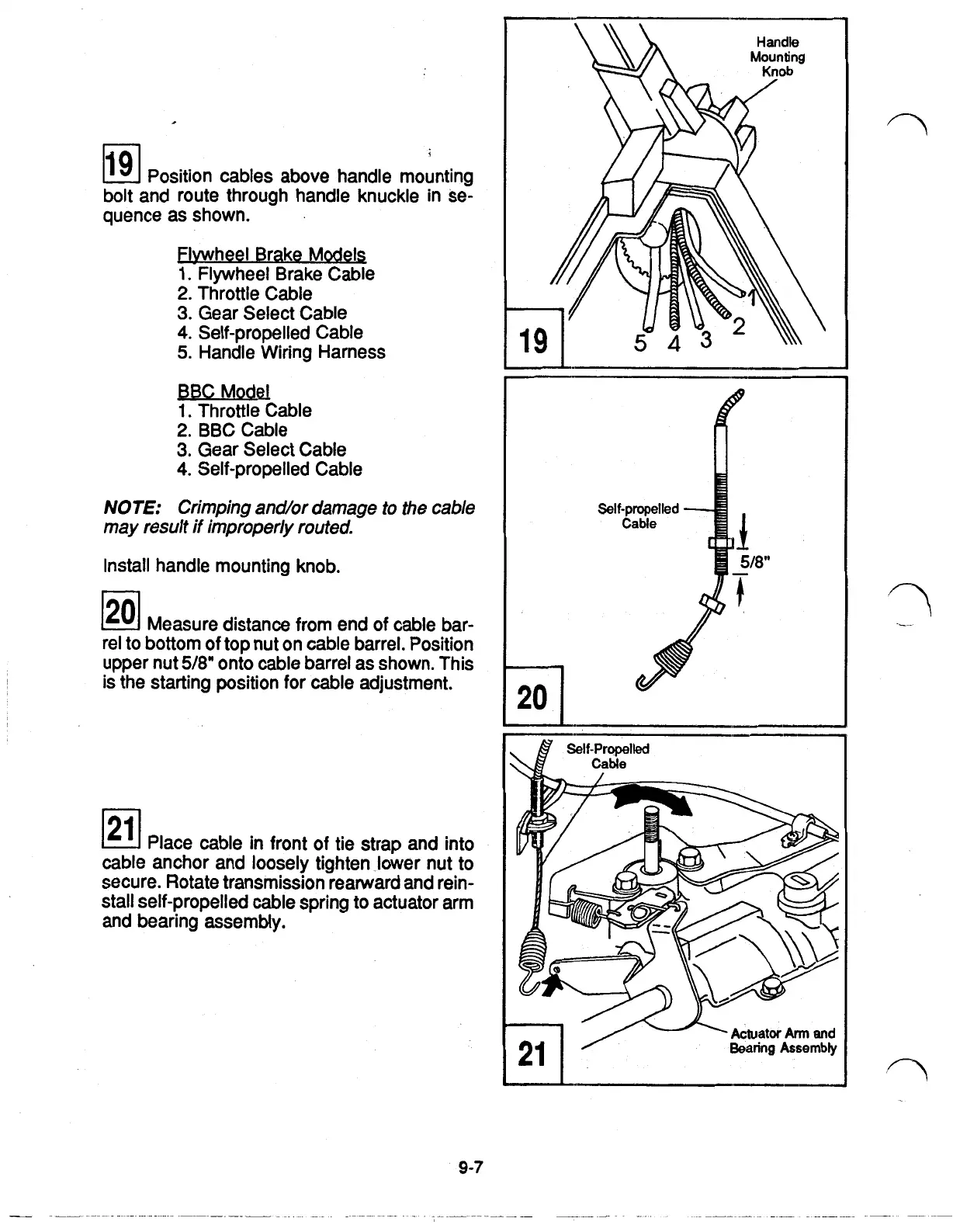

19
Position cables above handle mounting
bolt and route through handle knuckle in se-
quence as shown.
1.
Flywheel Brake Cable
2.
Throttle Cable
3.
Gear Select Cable
4.
Self-propelled Cable
5.
Handle Wiring Harness
BBC Model
1.
Throttle Cable
2.
BBC Cable
3.
Gear Select Cable
4.
Self-propelled Cable
NOTE:
Crimping and/or damage to the cable
may result
if
improperly routed.
Install handle mounting knob.
20
Measure distance from end of cable bar-
rel to bottom of top nut on cable barrel. Position
upper nut
5/8”
onto cable barrel as shown. This
is the starting position for cable adjustment.
21
Place cable in front of tie strap and into
cable anchor and loosely tighten lower nut to
secure. Rotate transmission rearward and rein-
stall self-propelled cable spring to actuator arm
and bearing assembly.
Self-propelled
Cable
To Next Page
