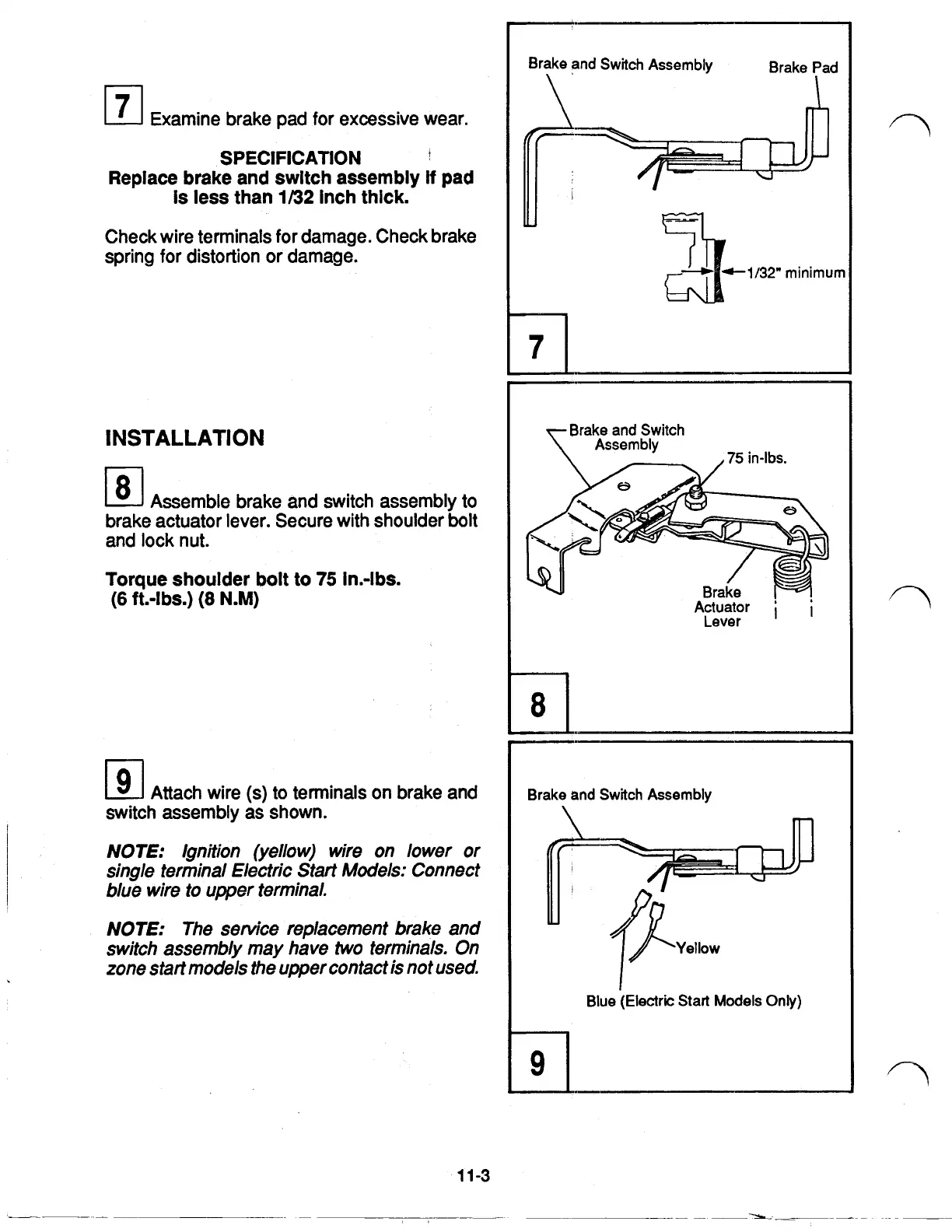

7
Examine brake pad
for
excessive wear.
SPECIFICATION
Replace brake and switch assembly if pad
is
less than
1/32
inch
thick.
Check wire terminals
for
damage. Check brake
spring
for
distortion
or
damage.
INSTALLATION
8
Assemble brake and switch assembly to
brake actuator lever. Secure with shoulder bolt
and lock nut.
Torque shoulder
bolt
to
75
in.-lbs.
(6
ft.-lbs.)
(8
N.M)
9
Attach wire
(s)
to terminals on brake and
switch assembly
as
shown.
NOTE:
Ignition (yellow) wire on lower or
single terminal Electric Start Models: Connect
blue wire to upper terminal.
NOTE:
The service replacement brake and
switch assembly may have
two
terminals. On
zone start models the upper contact is not used.
Brake and
Switch
Assembly Brake Pad
-1/32”
minimum
Brake and
Switch
Actuator
Lever
Brake and
Switch
Assembly
Blue (Electric
Start
Models Only)
9
