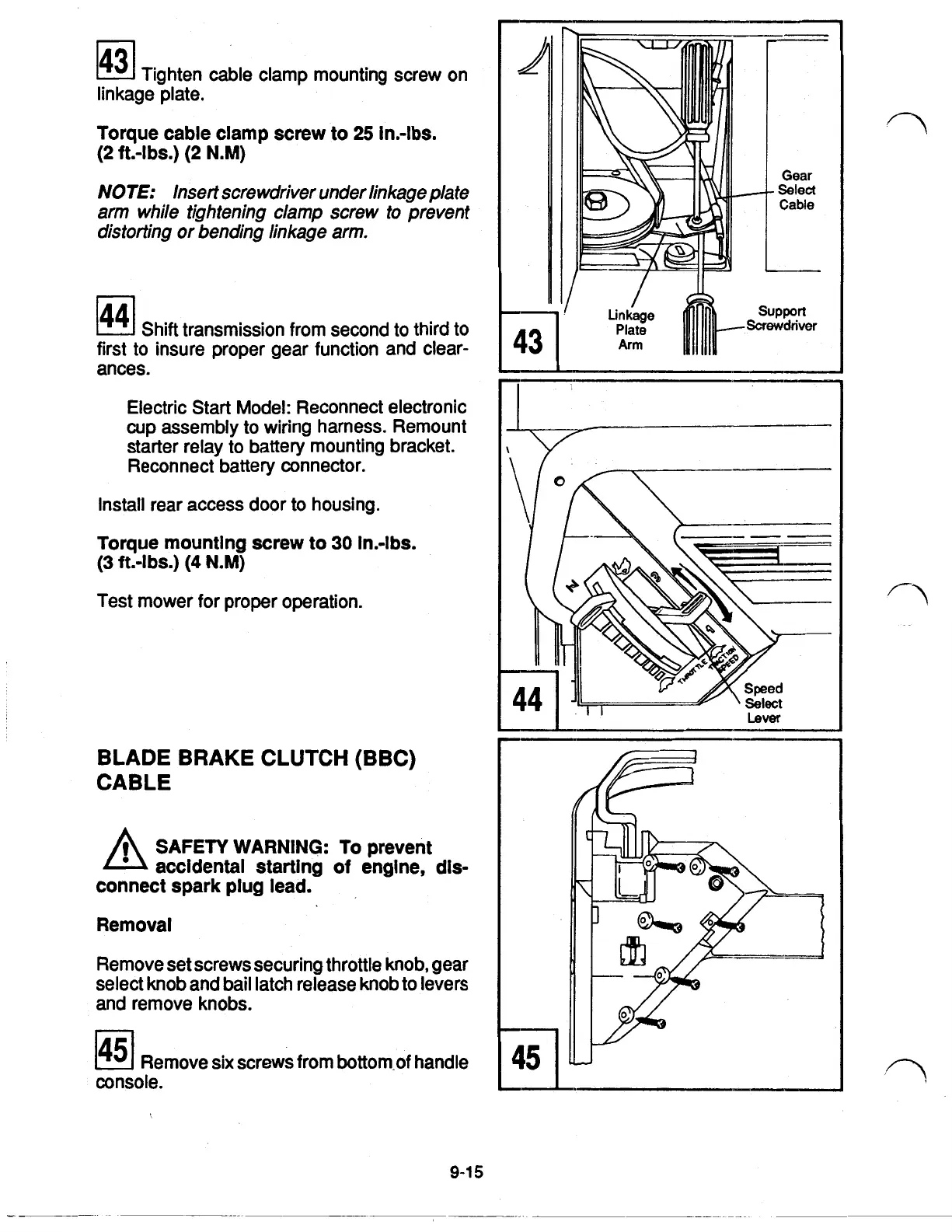

Tighten cable clamp mounting screw on
linkage plate.
Torque cable clamp
screw
to
25
in.-lbs.
(2 ft.-lbs.) (2
N.M)
NOTE:
Insert screwdriver under linkage plate
arm while tightening clamp screw
to
prevent
distorting or bending linkage arm.
44
Shift transmission from second to third to
first to insure proper gear function and clear-
ances.
Electric Start Model: Reconnect electronic
cup
assembly to wiring harness. Remount
starter relay to battery mounting bracket.
Reconnect battery connector.
Install rear access door to housing.
Torque mountlng screw to
30
In.-lbs.
(3
ft.-lbs.)
(4
N.M)
Test mower for proper operation.
BLADE BRAKE CLUTCH (BBC)
CABLE
SAFETY WARNING: To prevent
accidental starting
of
engine, dis-
connect spark plug lead.
Removal
Remove set screws securing throttle knob, gear
select knob and
bail
latch release knob to levers
and remove knobs.
Remove six screws from bottom-of handle
console.
9-15
To Next Page
