40

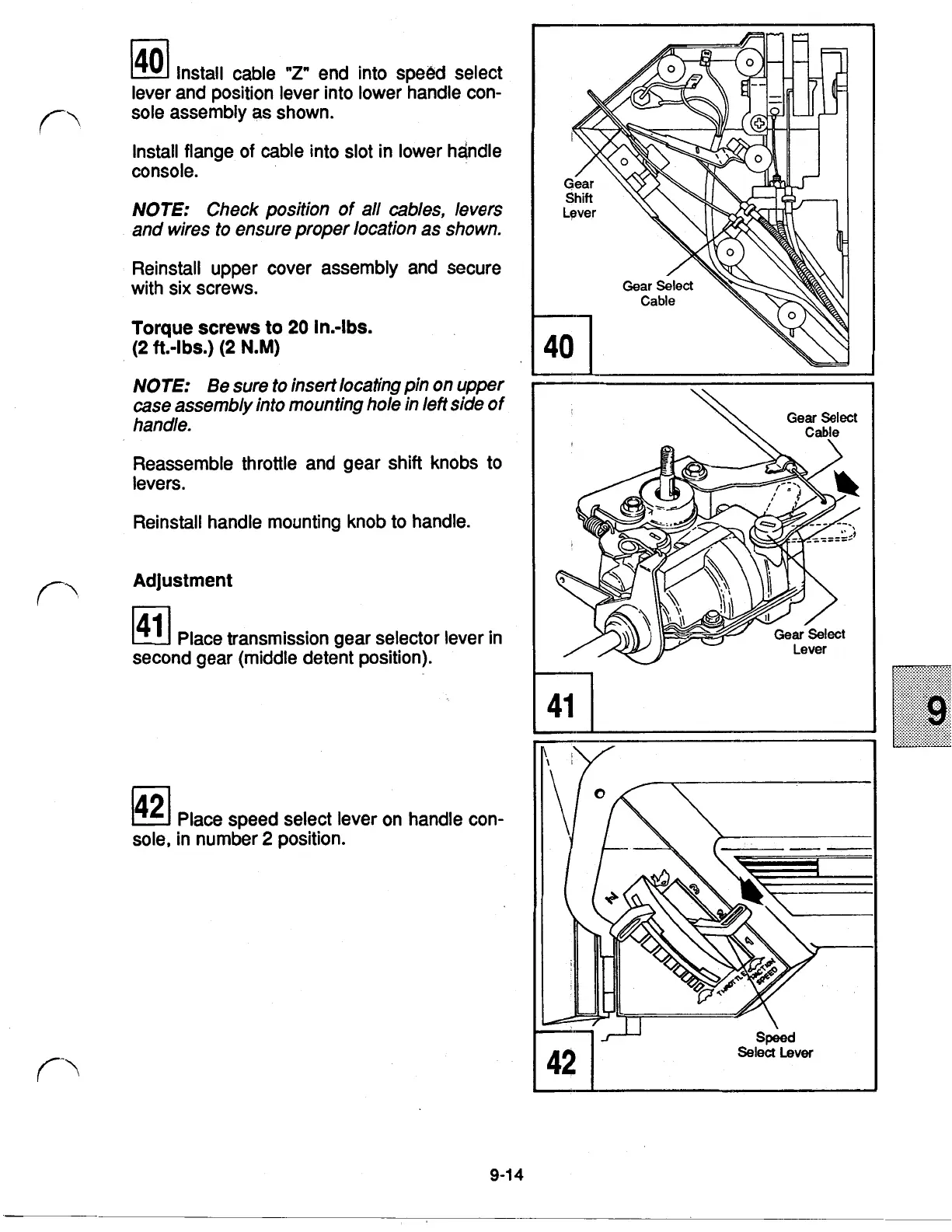

Install cable
"Z"
end into speed select
lever and position lever into lower handle con-
sole assembly as shown.
Install flange of cable into slot in lower handle
console.
NOTE:
Check position
of
all cables, levers
and wires to ensure proper location as shown.
Reinstall upper cover assembly and secure
with six screws.
Torque screws to 20
in.-lbs.
(2
ft.-lbs.)
(2
N.M)
NOTE:
Be sure
to
insert locating pin on upper
case assembly into mounting hole in left side
of
handle.
Reassemble throttle and gear shift knobs to
levers.
Reinstall handle mounting knob to handle.
Adjustment
41
Place transmission gear selector lever in
second gear (middle detent position).
Place speed select lever on handle con-
sole, in number
2
position.
Speed
Select
Lever
9-14
To Next Page
