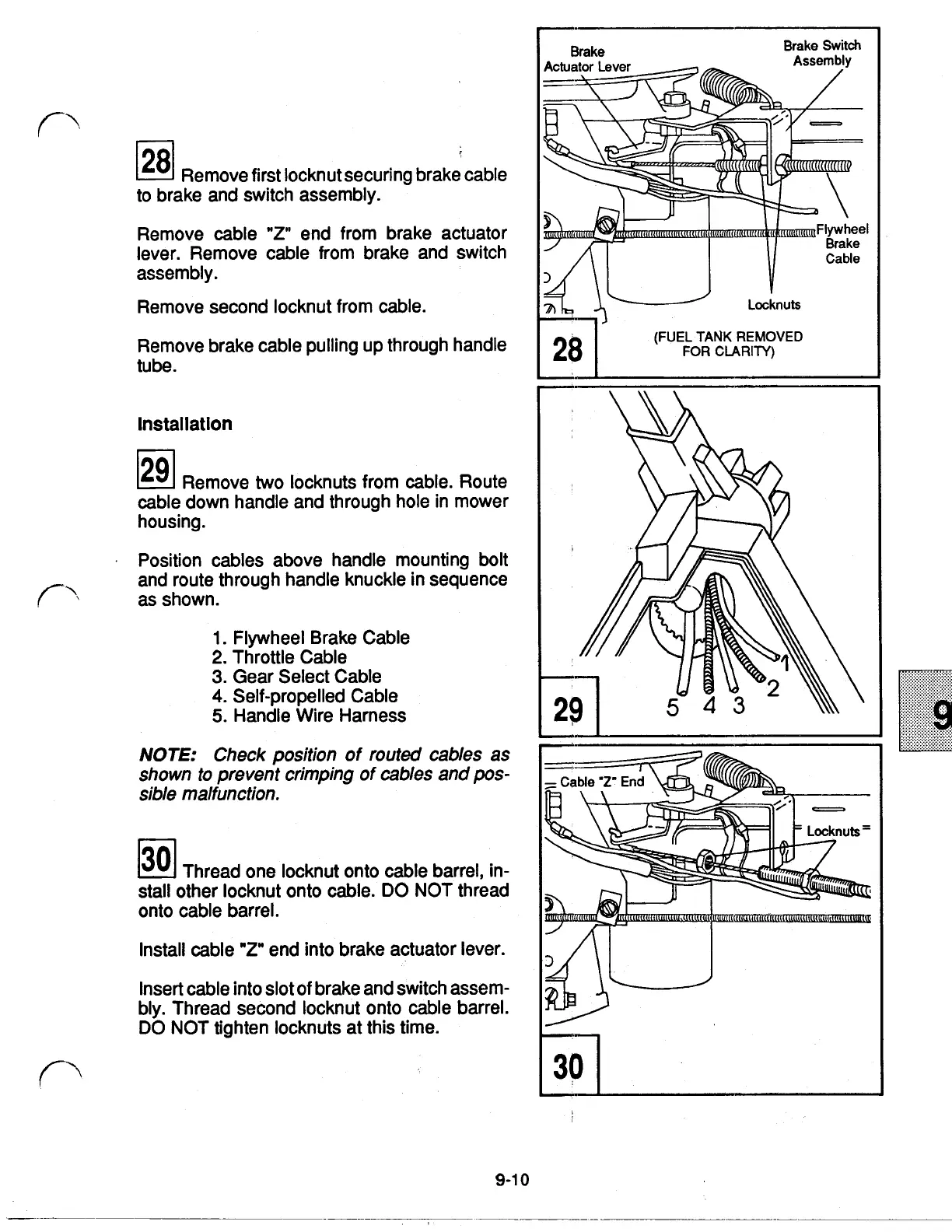

28
Remove first
I
locknut securing brake cable
to brake and switch assembly.
Remove cable
"Z
end from brake actuator
lever. Remove cable from brake and switch
assembly.
Remove second locknut from cable.
Remove brake cable pulling up through handle
tube.
Installation
29
Remove
two
locknuts from cable. Route
cable down handle and through hole in mower
housing.
Position cables above handle mounting bolt
and route through handle knuckle in sequence
as
shown.
1.
Flywheel Brake Cable
2.
Throttle Cable
3.
Gear Select Cable
4.
Self-propelled Cable
5.
Handle Wire Harness
NOTE:
Check position of routed cables as
shown to prevent crimping of cables and
pos-
sible malfunction.
30
Thread one locknut onto cable barrel, in-
stall other locknut onto cable.
DO NOT
thread
onto cable barrel.
Install cable
"Z"
end into brake actuator lever.
Insert cable into slot of brake and switch assem-
bly. Thread second locknut onto cable barrel.
DO
NOT
tighten locknuts at this time.
Brake
Brake
Switch
(FUEL
TANK
REMOVED
FOR
CLARITY)
9-10
