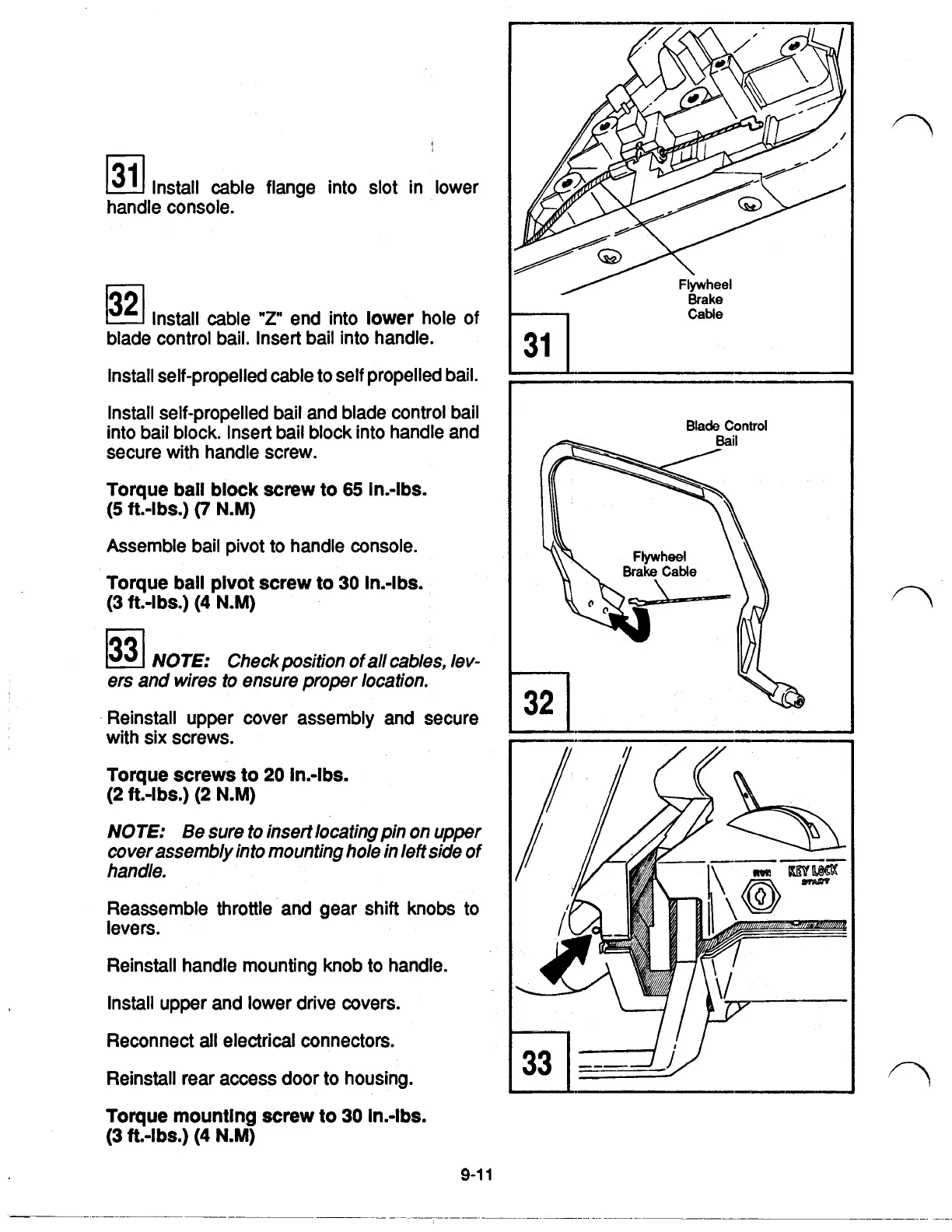

31
Install cable flange into slot in lower
handle console.
Install cable
"Z"
end into
lower
hole of
blade control bail. Insert bail into handle.
Install self-propelled cable to self propelled bail.
Install self-propelled bail and blade control bail
into bail block. Insert bail block into handle and
secure with handle screw.
Torque bail block screw to
65
In.-lbs.
(5
ft.-lbs.)
(7
N.M)
Assemble bail pivot to handle console.
Torque ball plvot screw to 30 In.-lbs.
(3
ft.-lbs.)
(4
N.M)
NOTE
Check position
of
all cables, lev-
ers and wires to ensure proper location.
Reinstall upper cover assembly and secure
with six screws.
Torque screws to 20 In.-lbs.
NOTE
Be sure to insert locating pin on upper
cover assembly into mounting hole in left side
of
handle.
(2
ft.-lbs.)
(2
N.M)
Reassemble throttle. and gear
shift
knobs to
levers.
Reinstall handle mounting knob
to
handle.
Install upper and lower drive covers.
Reconnect all electrical connectors.
Reinstall rear access door
to
housing.
Torque mounting screw to
30
In.-lbs.
(3
ft.-lbs.)
(4
N.M)
9-11
Flywheel
Brake
31
Cable
Blade
Control
I.
---I
