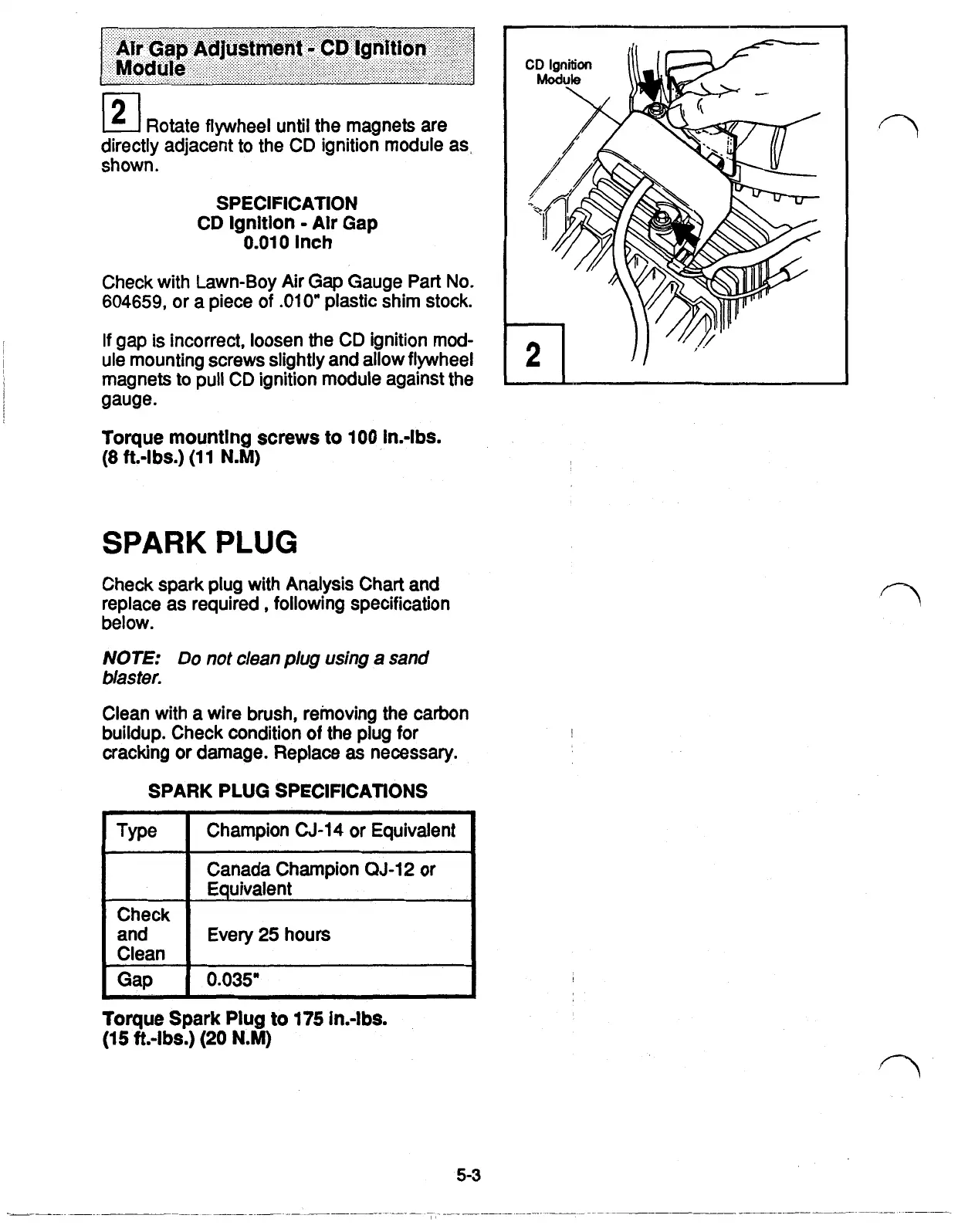

Rotate flywheel until the magnets are
directly adjacent to the CD ignition module as,
shown.
SPECIFICATION
CD Ignition Air
Gap
0.01
0
Inch
Check with Lawn-Boy Air Gap Gauge Part
No.
604659,
or a piece of
.010"
plastic shim stock.
If
gap is incorrect, loosen the CD ignition mod-
ule mounting screws slightly and allow flywheel
magnets to pull CD ignition module against the
gauge.
Torque mountlng screws
to
100
In.-lbs.
(8
ft.-lbs.)
(1 1
N.M)
SPARK
PLUG
Check spark plug with Analysis Chart
and
replace
as
required
,
following specification
below.
NOTE:
Do
not clean
plug
using
a sand
blaster.
Clean with
a
wire brush, removing the carbon
buildup. Check condition of the plug for
cracking or damage. Replace
as
necessary.
SPARK PLUG SPECIFICATIONS
Type
Champion
CJ-14
or Equivalent
Canada Champion
QJ-12
or
Equivalent
Check
and
Clean
Every
25
hours
Gap
0.035"
Torque
Spark
Plug
to
175
In.-lbs.
(15
ft.-IbS.)
(20
N.M)
