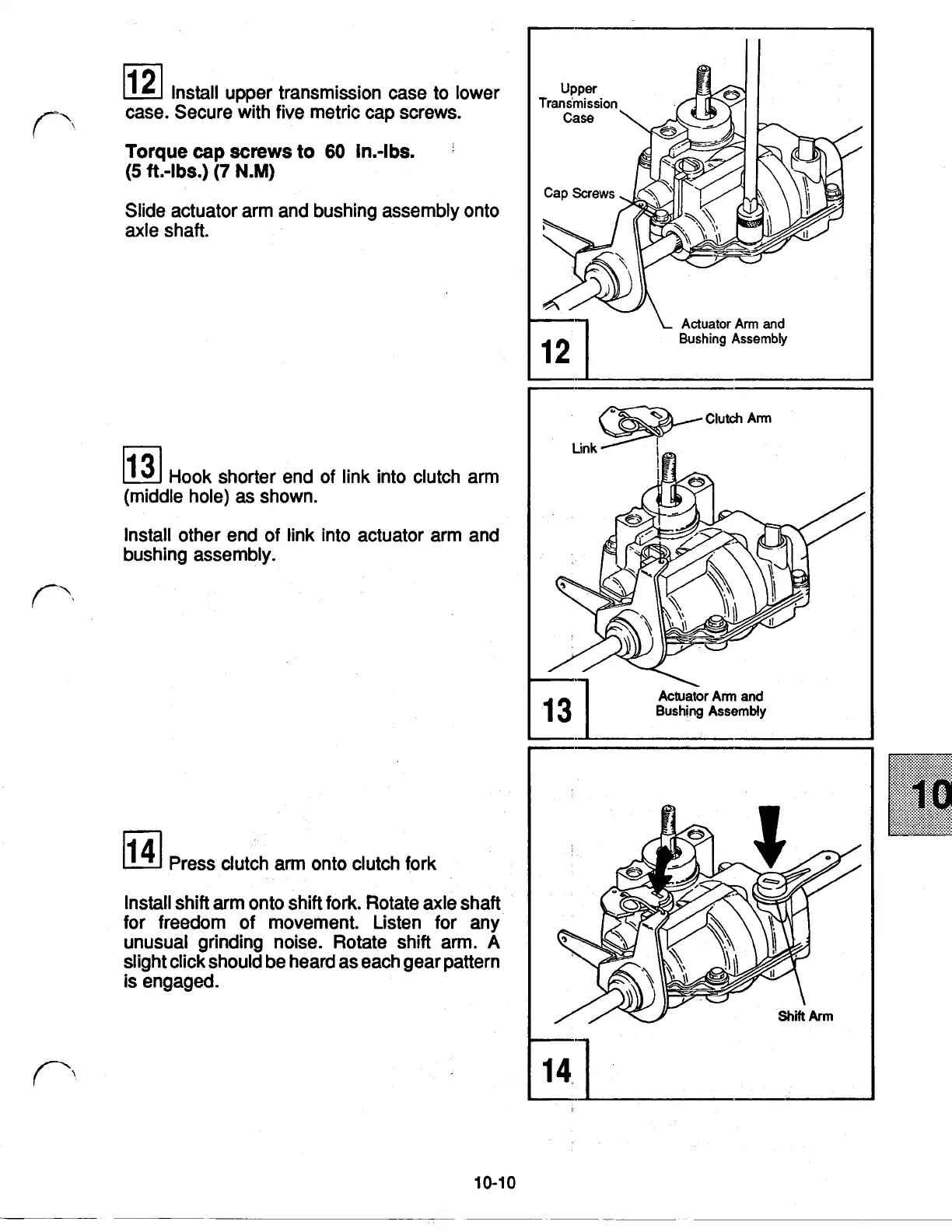

12
Install upper transmission case to tower
case. Secure with five metric cap screws.
Torque
cap
screws
to
60
in.-lbs.
Slide actuator arm and bushing assembly onto
axle shaft.
(5 ft.-lbs.)
(7
N.M)
13
Hook shorter end of link into clutch arm
(middle hole)
as
shown.
Install other end
of
link into actuator arm and
bushing assembly.
14
Press clutch
arm
onto clutch fork
Install shift arm onto shift
fork.
Rotate axle shaft
for freedom of movement. Listen for any
unusual grinding noise. Rotate shift arm.
A
slight click should be heard as each gear pattern
is engaged.
10-1
0
Actuator
Arm
and
Bushing
Assembly
I
I
I
\
Actuator
Arm
and
Bushing
Assembly
Shift
Arm
14,
