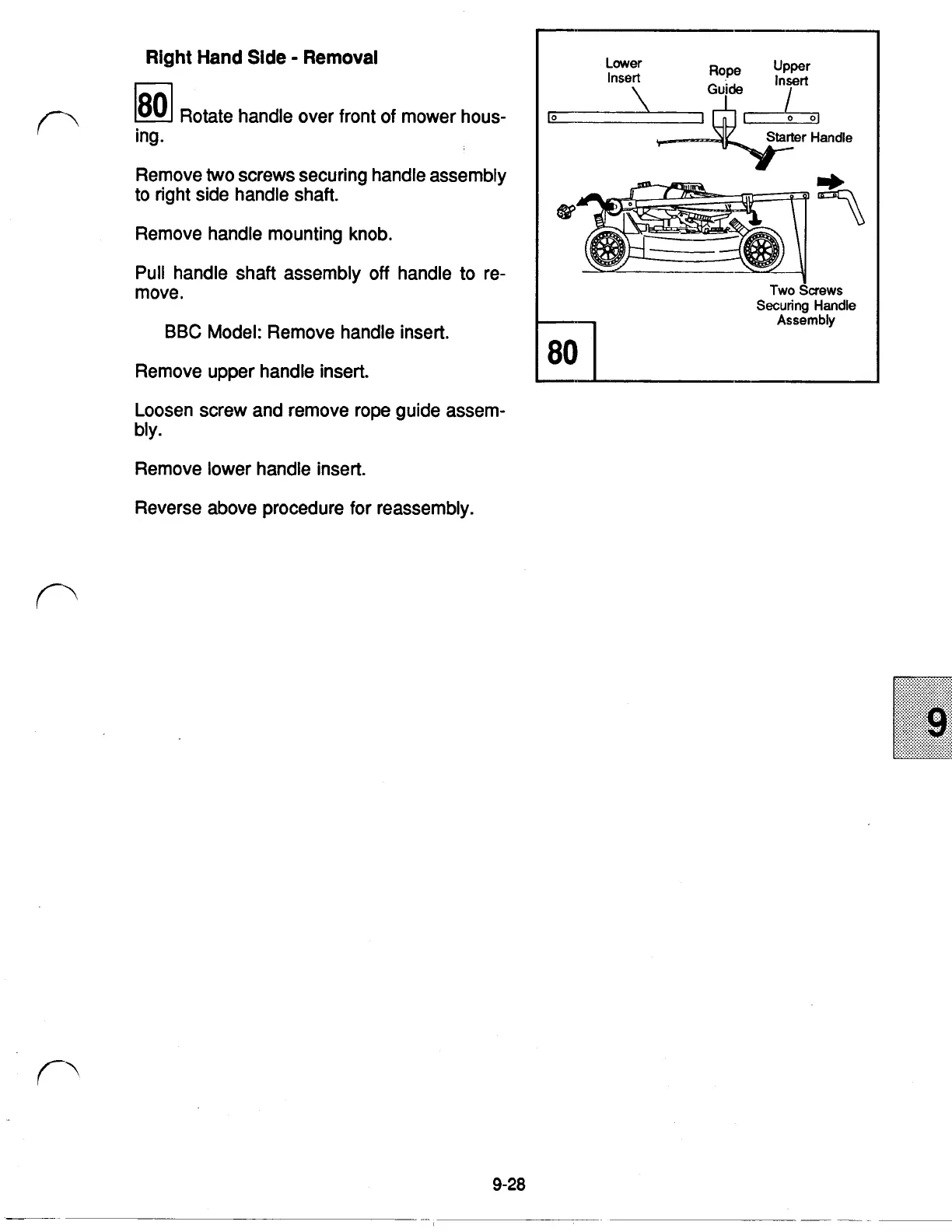

Right Hand Side Removal
80 Rotate handle over front of mower hous-
ing.
Remove
two screws securing handle assembly
to right side handle shaft.
Remove handle mounting knob.
Pull handle shaft assembly
off handle to re-
move.
BBC Model: Remove handle insert.
Remove upper handle insert.
Loosen screw and remove rope guide assem-
bly.
Remove lower handle insert.
Reverse above procedure for reassembly.
Lower
Insert
Rope
\ Guide
Insert
I
Starter Handle
8o I
TWO screws
Securing Handle
Assembly
