Leader LV5300A - Front Panel

2

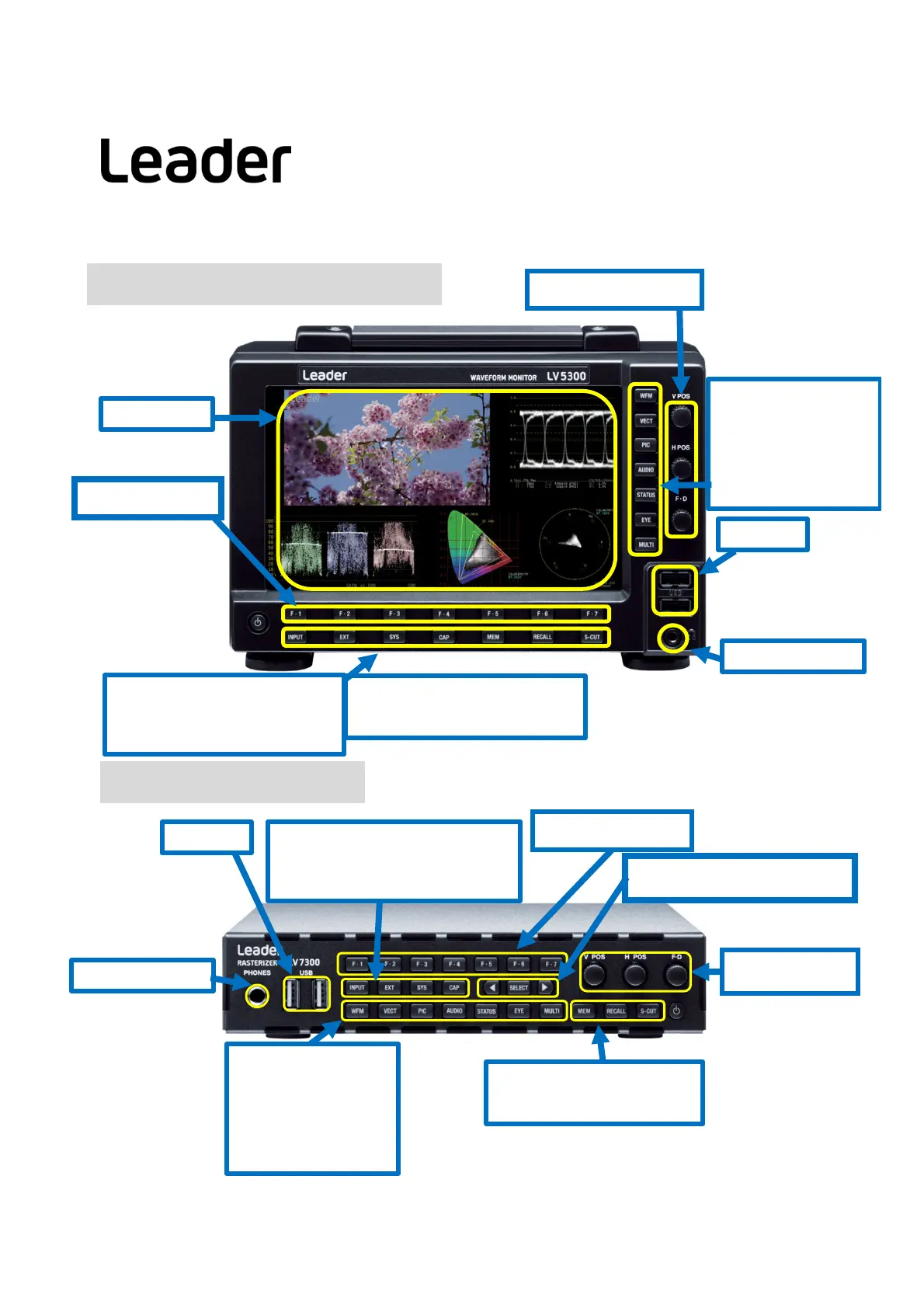

LV5300/LV5350 Front Panel
LV7300 Front Panel
It is a headphone jack with a mini plug.
Outputs SDI embedded audio decoding.
Connect a USB
memory device or
USB mouse.
USB port
Headphone jack
Position / FD
USB port
Headphone jack
Position / FD
Function Key
MEM: Preset Registration/Delete
RECALL: Recall a preset
S-CUT: Short cut key
LCD display
Function Key
INPUT: Sets the display channel
EXT: Switches the Sync signal
SYS: Configures the settings
CAP: Capture the screen
Turn to specify a
numeric value or to
move cursors. In most
cases, press to reset
the value to its default
value.
WFM: Waveform
VECT: Vector
PIC: Picture
AUDIO: Audio
STATUS: Status
EYE: EYE Jitter
MULTI: Multi screen
INPUT: Select the display channel
CAP: Capture the screen
EXT: Switches the Sync signal
SYS: Configures the settings
WFM: Waveform
VECT: Vector
PIC: Picture
AUDIO: Audio
STATUS: Status
EYE: EYE Jitter
MULTI: Multi screen
SELECT：Select Function
Connect a USB
memory device or
USB mouse.
Turn to specify a
numeric value or to
move cursors. In most
cases, press to reset
the value to its default
value.
It is a headphone jack
with a mini plug.
Outputs SDI embedded
audio decoding.
MEM: Preset Registration/Delete
RECALL: Recall a Preset
S-CUT: Short cut key
LV5300/LV5350/LV7300QuickManual
