52 Chapter 6 – Hasselblad (500 Series)
Attaching the Leaf Digital Camera Back to the Camera Body
1. Mount the Hasselblad camera on a tripod.
2. Remove the protective cover plate from the digital camera back.
3. Connect the digital camera back to the camera body in either portrait
or landscape orientation. Rest the digital camera back on the lower
supports making sure that the lugs are properly engaged in the
recesses.
4. Move the digital back toward the camera body and check that the
upper support hooks on the camera fit into the slots on Leaf Aptus,
and lock it into place.

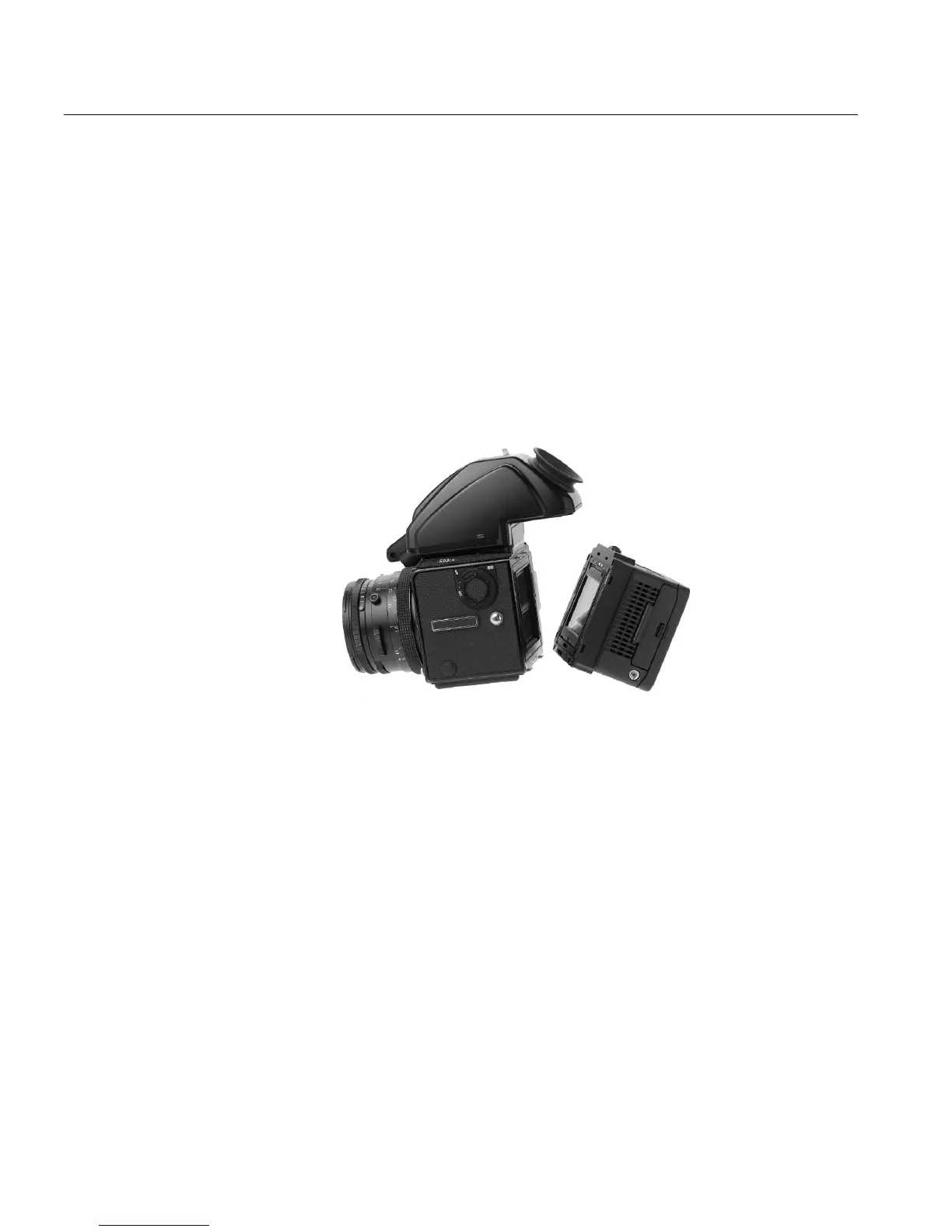

Figure 4: Connecting the Leaf Aptus digital camera back to the camera body
