16 Chapter 2 – Using the Portable Hardware
Attaching the Camera Adaptor to the Camera Body
1. Place the camera adaptor on the bottom of the camera body.
2. Align the screw hole on the adaptor with the screw hole on the camera
body (see the illustration Inserting the Batteries in the Leaf Digital
Magazine on page 17). Refer to the following table to determine which
adaptor screw hole to use.
3. Insert the screw and tighten it.

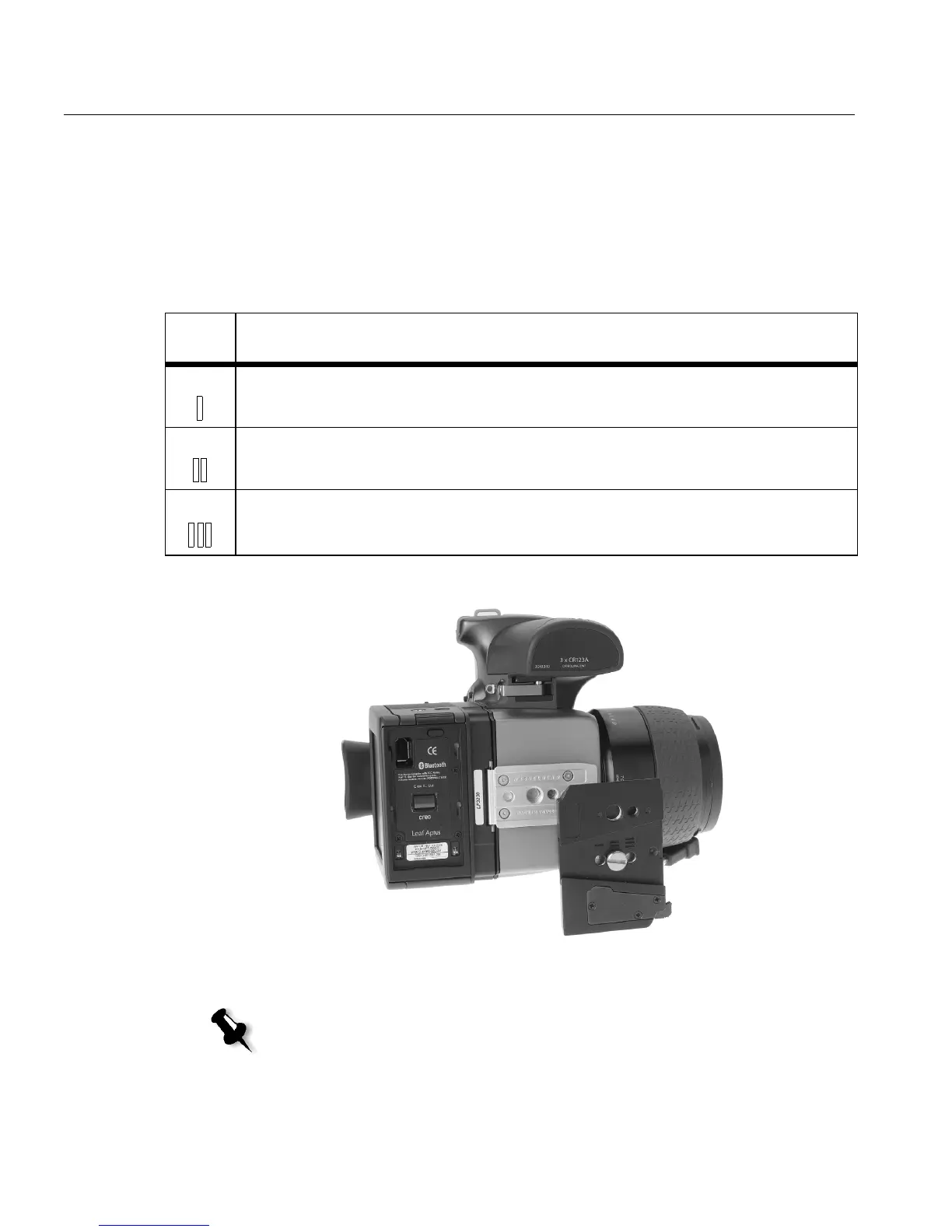

Figure 10: Attaching the camera adaptor to the camera body
Hole
Symbol
Camera Type
Contax 645
Hasselblad (500 series and H1), Mamiya RB67, Mamiya RZ67, Bronica SQA-I
Mamiya 645 AF-D, Bronica ETR-SI, Fuji 680GX
Note: You can mount your camera on the tripod using one of the tripod sockets
without removing the camera adaptor.
