54 Chapter 6 – Hasselblad (500 Series)
Connecting the Cables
Connecting the Camera-to-Back Sync Cable
1. Insert one end of the Camera-to-Back Sync cable into the Hasselblad
Lens Flash socket.
2. Insert the other end of the cable into the Camera-to-Back Sync socket
on Leaf Aptus.

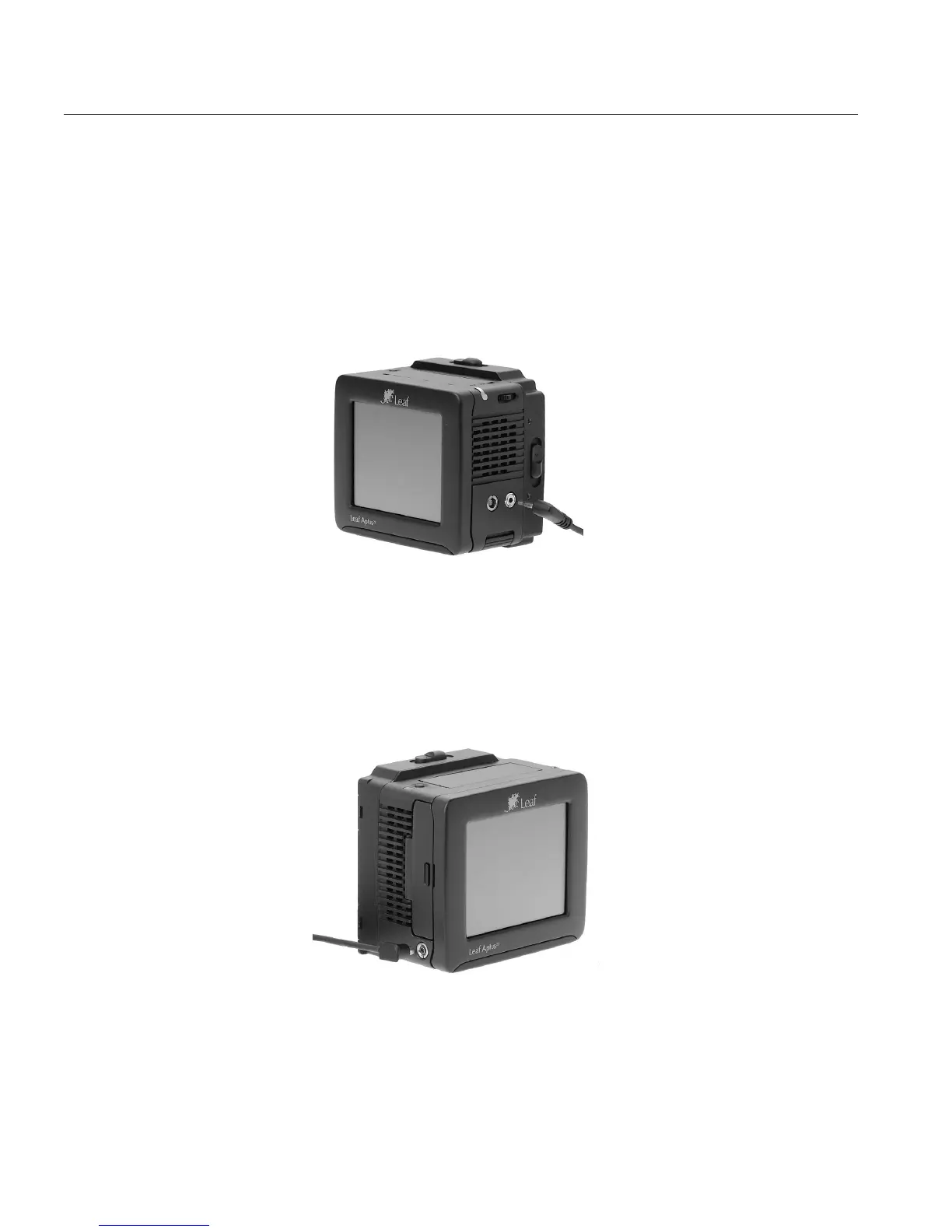

Figure 5: Connecting a Camera-to-Back Sync cable to the Leaf Aptus digital
camera back
Connecting the Flash Sync Cable
¾ Connect the Flash Sync cable to the Flash Sync socket on Leaf Aptus.
Figure 6: Connecting a Flash Sync cable to Leaf Aptus
