74 Chapter 8 – Mamiya RB
Attaching the Leaf Digital Camera Back to the Camera Body
1. Mount the Mamiya RB camera on a tripod.
2. Flip the locking lever on the camera body from left to right into the
Open position.
3. Attach the Mamiya RB adaptor plate to the camera body.
4. Insert the four studs on the adaptor into the four holes on the camera
body.

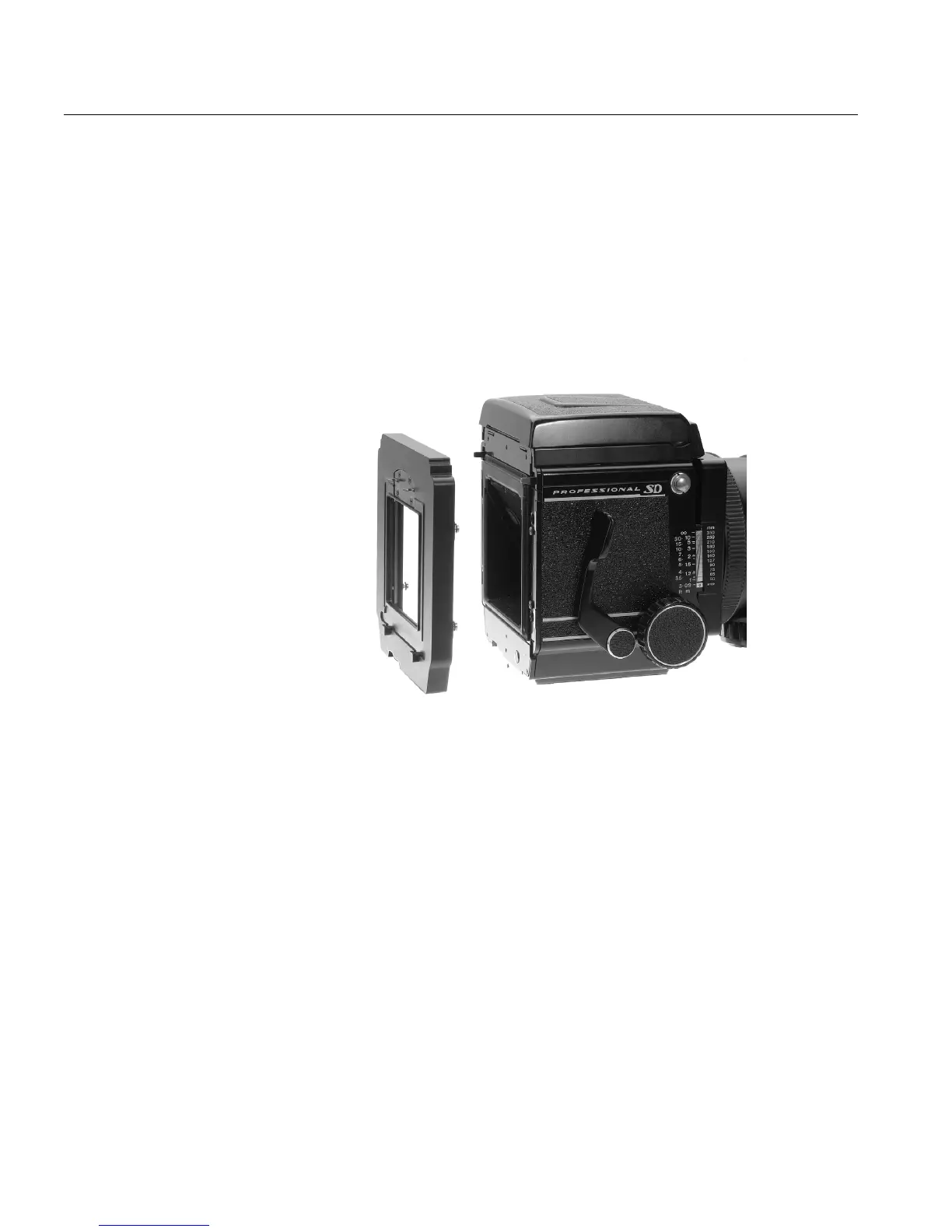

Figure 4: Attaching the Mamiya RB adaptor plate
5.
Secure the adaptor plate to the camera body by flipping the locking
lever on the camera body from right to left into the Locked position.
6. Remove the protective cover from Leaf Aptus.
7. Connect the digital camera back to the camera body. Rest the digital
camera back on the lower supports making sure that the lugs are
properly engaged in the recesses.
8. Move the digital camera back toward the camera body while making
sure that the camera’s upper support hooks fit into the slots on Leaf
Aptus.
9. Push the top of the digital camera back toward the camera body until
it locks in place.
