84 Chapter 9 – Mamiya RZ67/RZ67ProII/ RZ67ProIID
Attaching the Leaf Digital Camera Back to the Camera Body
1. Mount the Mamiya RZ67, Mamiya RZ67ProII, or Mamiya RZ67
ProIID camera on a tripod.
2. Insert the four studs on the Mamiya camera body into the four holes
on the adaptor.

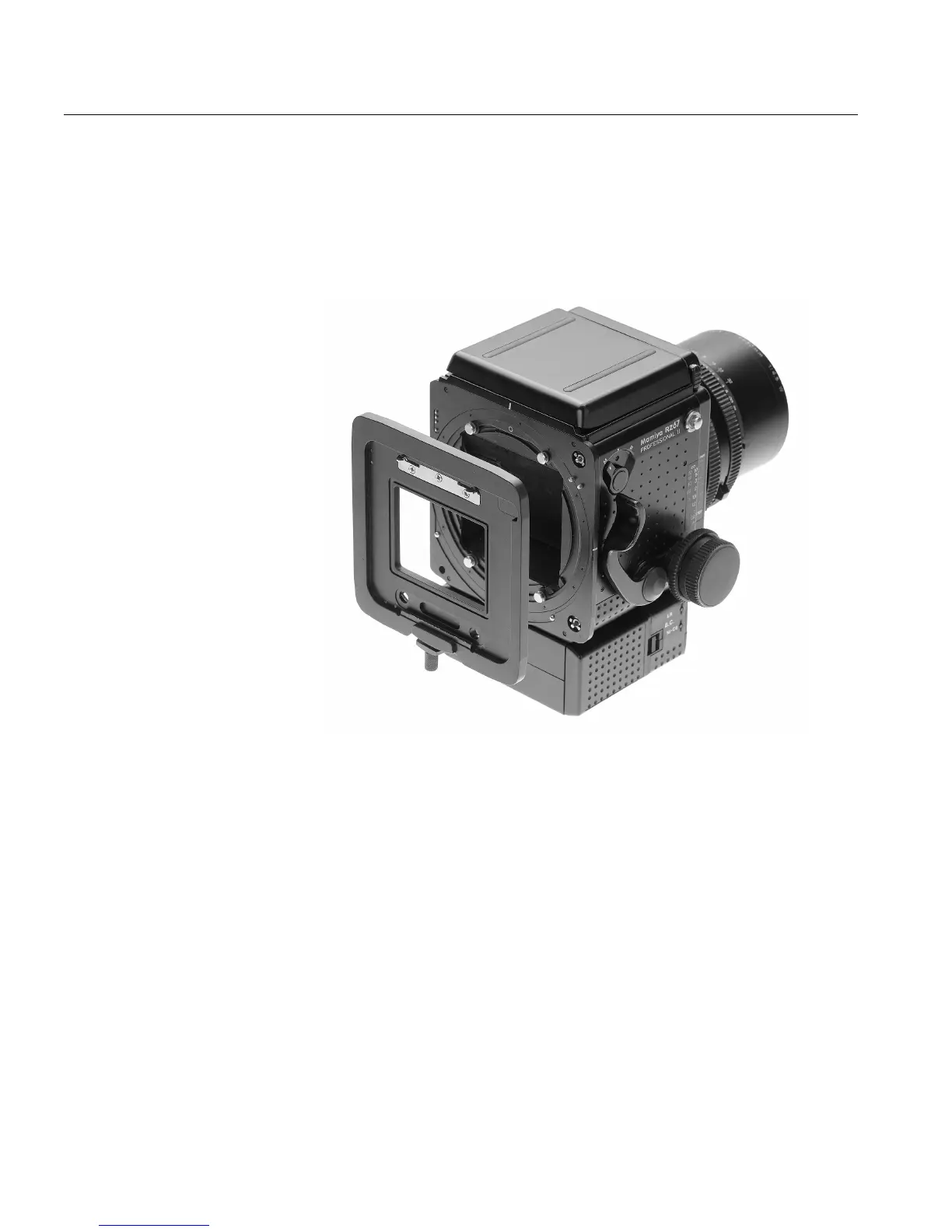

Figure 4: Connecting the Leaf Aptus digital camera back
3.
Secure the adaptor plate to the camera body by flipping the locking
lever from right to left into the locked position.
4. Remove the protective cover from Leaf Aptus.
5. Connect the digital camera back to the camera body. Rest the digital
camera back on the lower supports making sure that the lugs are
properly engaged in the recesses.
6. Move the camera back toward the camera body and check that the
camera’s upper support hooks fit into the slots on the camera back,
and lock it into place.
7. Lock the digital camera back into place.
