Installation Procedures 35

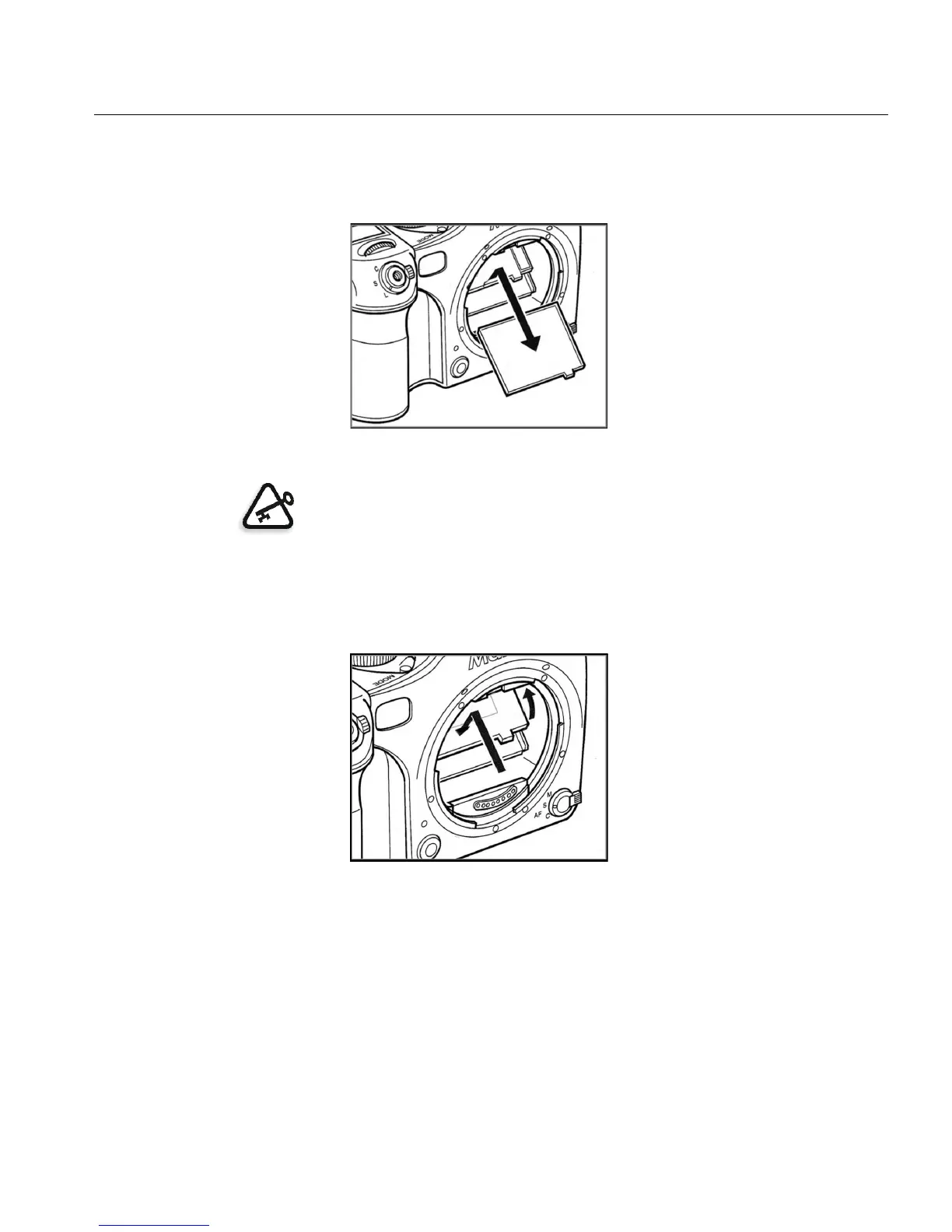

3. Remove the original focusing screen from the focusing screen frame
by grasping the tab on the edge of the screen with the tweezers, and
then gently pulling up and out.
Figure 4: Removing the original focusing screen
To attach the supplied focusing screen:
1. Using the supplied tweezers, hold the focusing screen tab and place the
focusing screen on the focusing screen frame.
Figure 5: Installing the supplied focusing screen
Important: Be careful not to touch or damage the mirror.
