7-32 LeeBoy Model 8616 Conveyor Paver
Maintenance
Installation
1. Clean all areas where new wearplate will be
attached.
2. Place new wearplate in position with oor jack or by
lowering screed to oor and slide pivot pin in.
3. Reconnect the element power wire and re-tie the
power cable to the attachment point provided.
NOTE: Do not tie the power cable so that it is tight. A
small amount of slack in the cable where it enters
the protective hose tting is required.
4. Attach adjustment screw to new wearplate.
5. Place endgate back on.
6. Place endgate bracket back on using two 3/8” bolts.
7. Adjust 7/8” nut so that endgate will move up and
down freely, then lock in place with jam nut.
8. Connect tilt screw.
7. Locate and unplug the element power wire. Make
certain the wire running into the extension screed is
loose and will drop away when the screed plate is
removed with interference.
8. Closely inspect all plugs, pins, and wires for
damage. Replace if needed.
9. Lower screed to ground and drive front pivot pin out,
or insert bolt into tip and pull out tapped pivot rod.

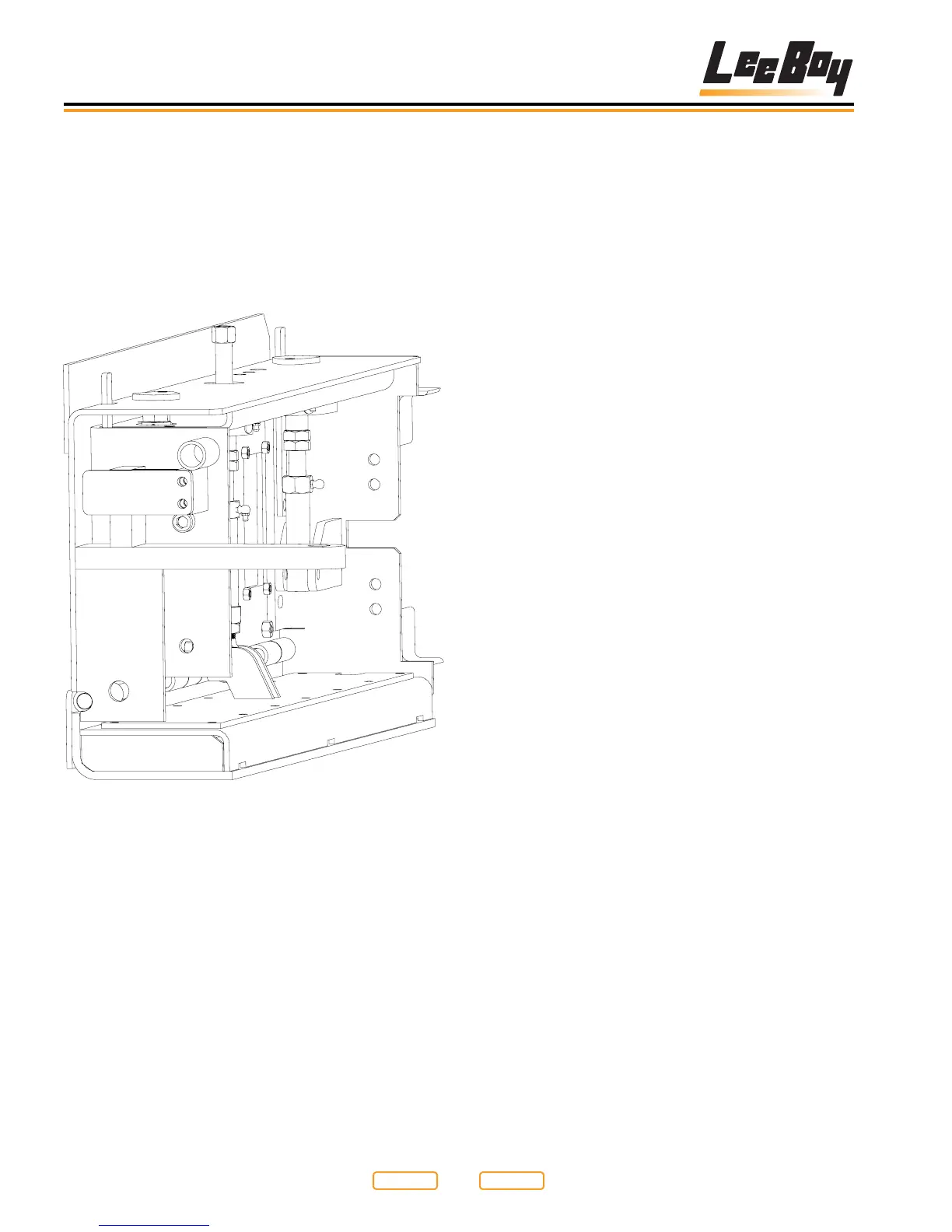

Threaded Pivot Rod
Figure 7-21
10. Lift screed and wearplate should be disconnected.
