LeeBoy 8616 - Screed Extension Top Guide Adjustment; Battery Servicing

7-14 LeeBoy Model 8616 Conveyor Paver
Maintenance
Electrical System
Battery Servicing
Burn Hazard! Batteries contain sulfuric
acid.
• NEVER allow battery uid to come in contact with
clothing, skin or eyes. Severe burns could result.
• ALWAYS wear safety goggles and protective
clothing when servicing the battery.
• If battery uid contacts the eyes and/or skin,
immediately ush the affected areas with a large
amount of clean water and obtain prompt medical
treatment.

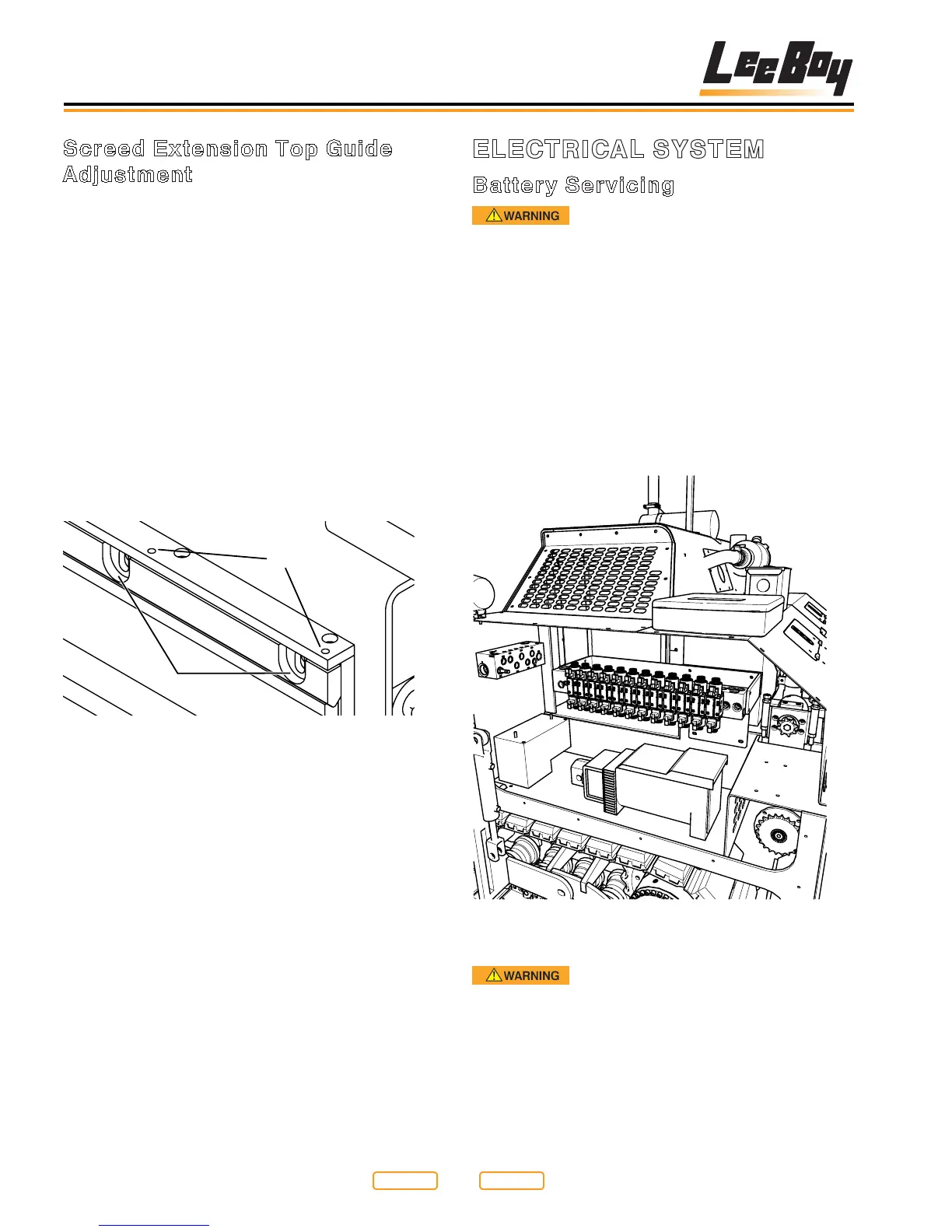

1. Open cover on left hand side of paver to access
battery (Figure 7-12).
Left Hand Side Battery Access
Figure 7-12
Fire Hazard! Keep sparks and ames
away from the batteries, as electrolyte gas is highly
ammable.
NOTE: When replacing the battery, discard the old
battery properly.
Screed Extension Top Guide
Adjustment
1. Using the screed LEFT EXTENSION and RIGHT
EXTENSION IN/OUT switches, run the screed
extension out by setting switches to the out position.
2. Locate the bolts (Figure 7-11) that hold top guide on.
3. Loosen bolts holding guide and push guide down
snug against slide by using allen head screws.
Using a jack, raise extension up so that it ts the
bottom guide level. Adjust top guide.
4. Run extension out and grease slide with
multipurpose grease before working.
NOTE: Slide should be greased daily to prevent wear.
5. Tighten the bolts, securing guides to specication.
Adjust allen screws until proper setting is completed.
Then tighten hold down bolts to 90 ft. lbs.
2
1
Screed Extension Top Guide Adjustment
Figure 7-11
1 - Allen Screws
2 - Hold Down Bolts
