6-28 LeeBoy Model 8616 Conveyor Paver
Operation
Truck Hitch Attachment
(Option)
The truck hitch (Figure 6-38) is an optional attachment.
It was designed to improve the asphalt laying process.
This is mainly accomplished by keeping the truck
driver off his brakes, preventing excessive and uneven
braking. To engage the hitch with the rear wheels of the
asphalt truck, proceed as follows:
1. Extend the arm extensions of the truck hitch by
pushing and holding the TRUCK HITCH OUT button.
Truck Hitch
Figure 6-38
2. Slowly back rear of truck until roll on hitch makes
contact with the rear tires of the truck.
3. Retract the arm extension by pushing and holding
the TRUCK HITCH IN button until both guide rollers
are fully locked into the truck wheel rims.
4. It may be necessary to adjust the roller guides to the
inside of the wheel rims, initially.
Umbrella (Option)
Assembly Instructions
1. Install Umbrella Mounting bracket (see bracket
mounting instructions furnished with each bracket).
2. Insert ball stud (Figure 6-37,3) on curved shaft
into umbrella support shaft (Figure 6-37,1), align
holes,and drive 3/16” X 1” (Figure 6-37,2) spiral
spring pins into position. Install locking handle
(Figure 6-37).
3. Place canvas cover (Figure 6-37,7) over umbrella
frame assembly (Figure 6-37,8) and hook corners
to bows – tie each bow securely with tie straps.
4. Insert umbrella frame assembly (Figure 6-37,8)
with canvas in place into tube on curved shaft
(Figure 6-37,3) and insert bolt (Figure 6-37,6).
Tighten snugly with nut (Figure 6-37,4).
Install complete umbrella into clamp on umbrella
mounting bracket. Each bow may be raised individually
until locked into open position (Figure 6-37,15)
Each bow has two positions in which it can be locked
open. This is to allow for arc stretch in canvas.

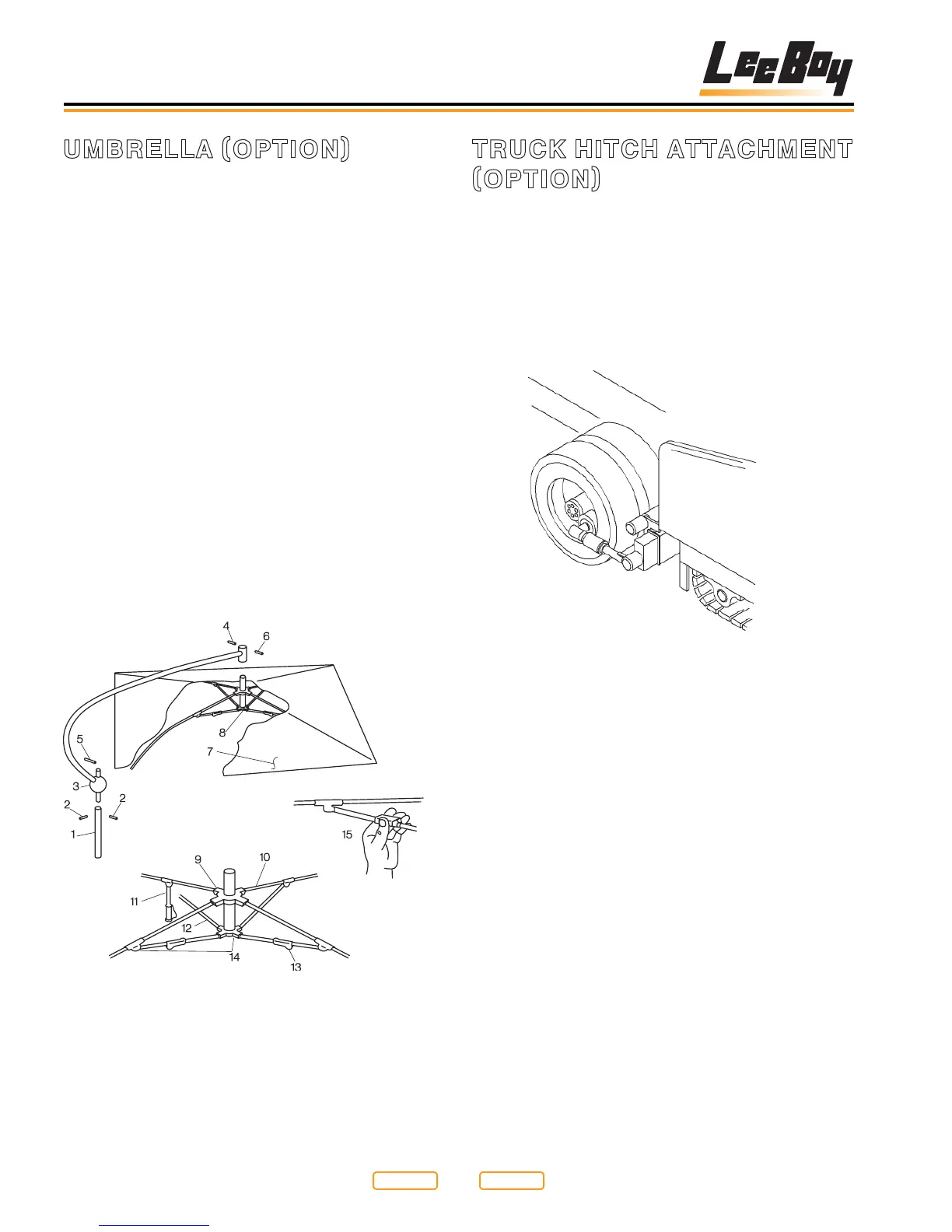

Umbrella Illustration
Figure 6-37
