LeeBoy 8616 - Plus One Faults

8
LeeBoy Model 8616 Conveyor Paver 8-5
Troubleshooting
Plus One Faults

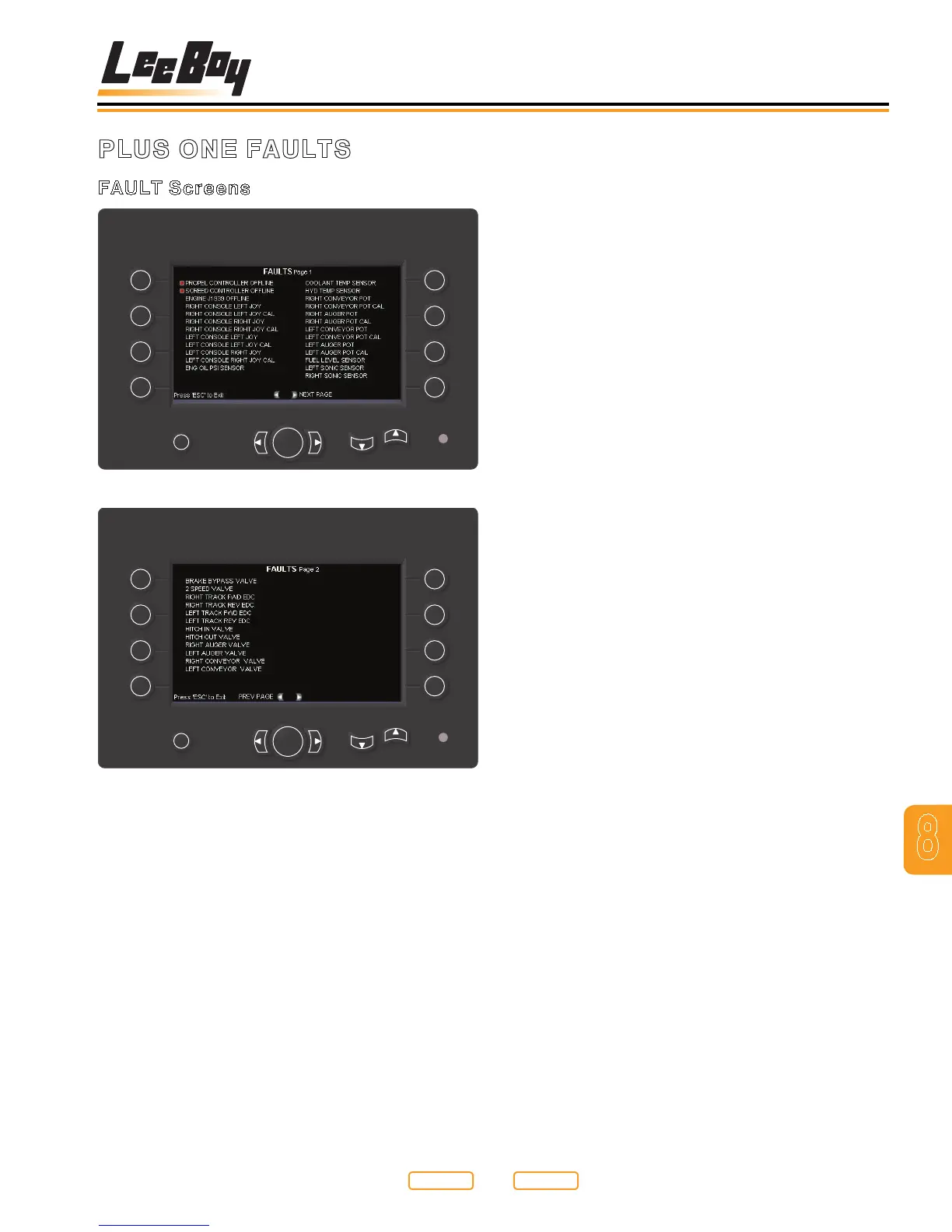

FAULT Screens
1
2
3
4
ESC
OK
5
6
7
8
Figure 8-1
1
2
3
4
ESC
OK
5
6
7
8
Figure 8-2
The FAULT screens are used to inform the operator that
a particular problem exists. A red box indicates a fault
has been detected with that particular component.
• Output Fault - The output is on and no current is
measured (open or short circuit).
• Input Sensor Fault - The sensor voltage is outside
acceptable limits.
• Input Sensor Cal - The sensor has not been calibrated.
• Controller Ofine - No CAN communication with
controller
Use the RIGHT/LEFT arrows to scroll through the fault
pages. To exit the screen, press ESC.
