9
9-7
Schematics
LeeBoy Model 8616 Conveyor Paver

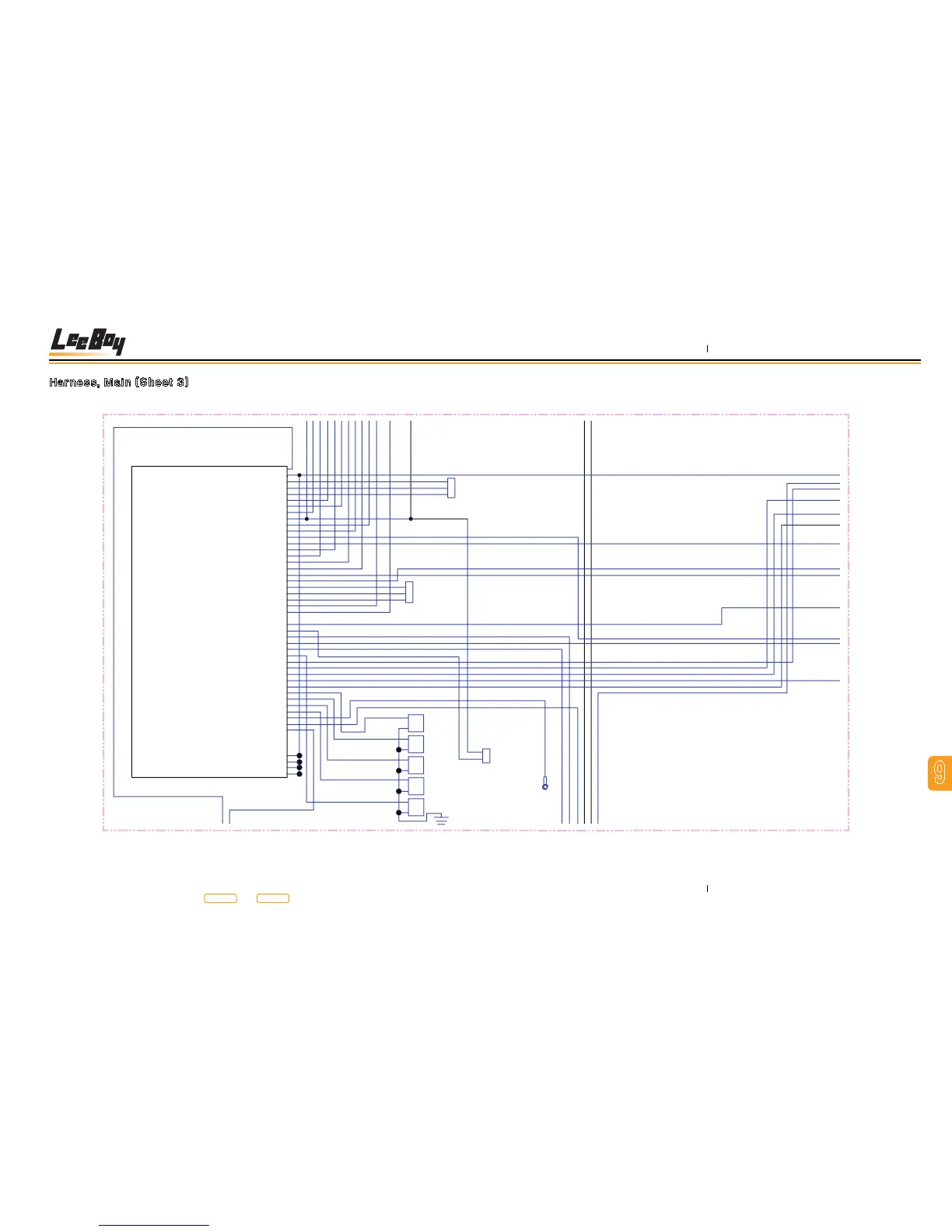

Harness, Main (Sheet 3)
PROPEL CONTROLLER
GROUND BLK 1
POWER RED 2
CAN1 + WHT 3
CAN1 - BLU 4
CAN1 SHIELD BLACK HEAT SHRINK 5
RT RUN/STOP SW WHT 6
RT NEUTRAL SW WHT 7
5VDC SENSOR POWER RED 8
SENSOR POWER GROUND BLK 9
LT RUN/STOP SW WHT 10
LT NEUTRAL SW WHT 11
GENERATOR ON SIGNAL BLU/RED 12
2 SPEED SW GRY/BLK 13
RIGHT RT JOYSTICK MV WHT 14
RIGHT LT JOYSTICK MV WHT 15
LEFT RT JOYSTICK MV WHT 16
LEFT LT JOYSTICK MV WHT 17
ENGINE HIGH TEMP SW BLU/WHT 18
ENGINE LOW OIL PRESS SW BRN 19
CAN2 + WHT 20
CAN2 - BLU 21
CAN2 SHIELD BLACK HEAT SHRINK 22
RT SONIC WHT 23
LT SONIC WHT 24
25
SCREED FLOAT SW GRN/YEL 26
HYD OIL TEMP PNK 27
FUEL LEVEL RED/WHT 28
COOLANT TEMP LT BLU 29
ENGINE OIL PSI BRN/YEL 30
BRAKE RELEASE BLU/WHT 31
BEACON RELAY BRN 32
WORK LIGHT RELAY BRN/YEL 33
VIBRATOR RELAY BLK/YEL 34
SCREED FLOAT RELAY GRN/YEL 35
GRADE AUTO RELAY BLU 36
RT TRACK REVERSE WHT 37
RT TRACK FORWARD WHT 38
LT TRACK REV WHT 39
LT TRACK FWD WHT 40
BACKUP ALARM BLU 41
2 SPEED VALVE GRY/BLK 42
ENGINE START ENABLE ORN/BLK 43
44
45
46
POWER RED 47
POWER RED 48
POWER RED 49
POWER RED 50
A
B
C
A
B
C
BACK UP
ALARM
LT FWD
LT REV
RT FWD
RT REV
PUMP NEUTRAL
1
2
HYD OIL TEMP SENSOR
CONNECTOR
#10 RING
TERMINAL
DELPHI PART NO
12162197
DT06-2S
DT06-2S
DT06-2S
DT06-2S
DT06-2S
2
1
1
1
1
1
2
2
2
2
TO SCREED
CONTROLLER
DT06-3S
C1
DT06-3S
TO ECM
To Next Page
