LeeBoy 8616 - Harness, Manifold

9
9-19
Schematics

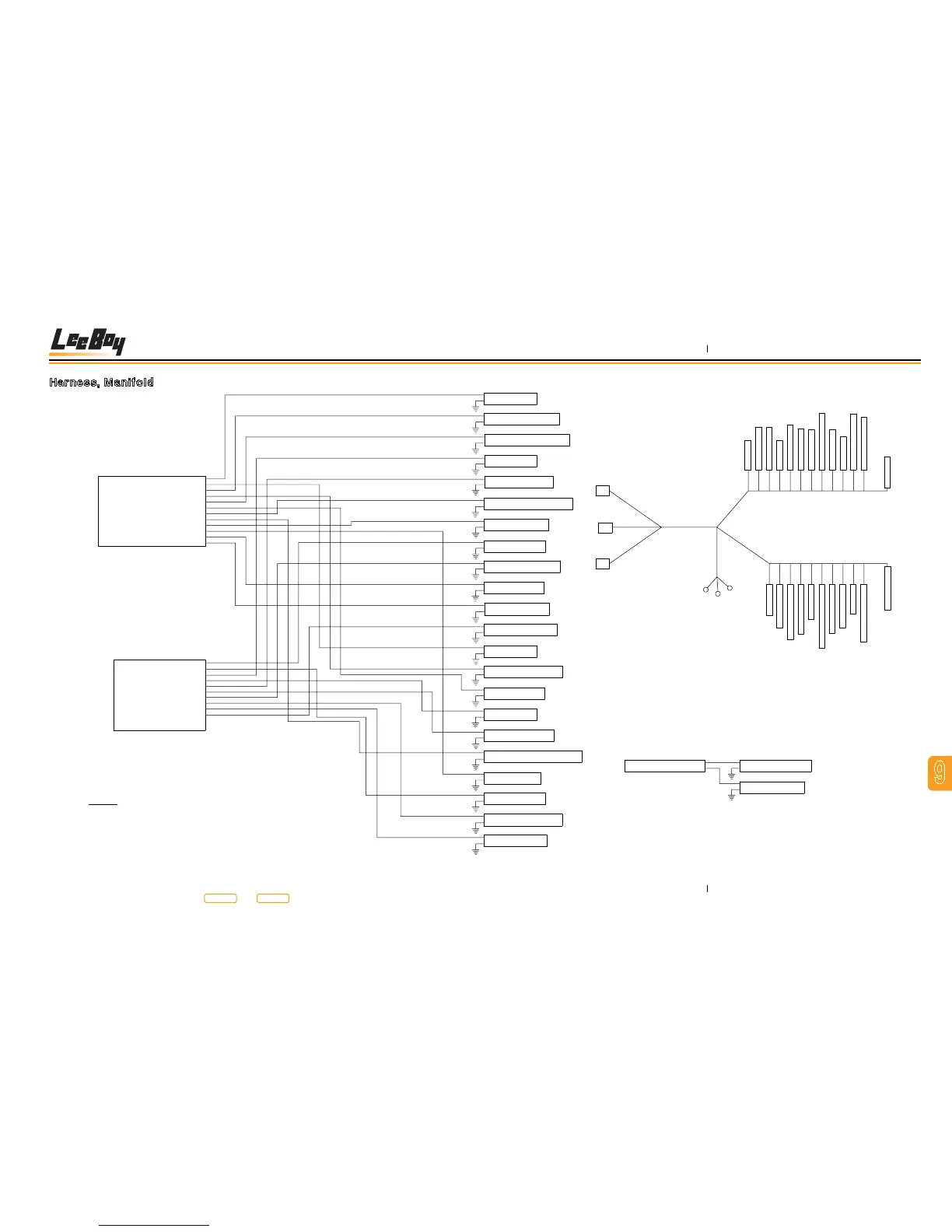

LeeBoy Model 8616 Conveyor Paver
Harness, Manifold
MANIFOLD CROWN
DT04-12P
11"
2" 2"
2" 2"
2"
4"
DT04-2P
CROWN UP GRN/WHT 1
CROWN DN PUR/WHT 2
DT06-2S
1 PUR/WHT CROWN UP
2 BLK GND
DT06-2S
1 GRN/WHT CROWN DN
2 BLK GND
7"
C5
2"
SCREED DOWN
CROWN UP
4"
SCREED UP
HITCH OUT
TRUCK HITCH IN
LEFT SLOPE UP PUR 1
LEFT SLOPE DOWN ORN 2
LEFT TOE UP PNK 3
LEFT TOE DOWN BRN 4
RIGHT TOE UP RED/BLK 5
RIGHT TOE DOWN YEL/RED 6
RIGHT SLOPE UP BLU/RED 7
RIGHT SLPE DOWN GRY/BLK 8
TRUCK HITCH IN YEL 9
TRUCK HITCH OUT WHT 10
11
12
HOPPER UP GRN 1
HOPPER DOWN GRY 2
LEFT CUTOFF OPEN ORN 3
LEFT CUTOFF CLOSED BRN 4
LEFT EXT OUT BLU/YEL 5
LEFT EXT IN RED/BLK 6
RIGHT CUTOFF CLOSED YEL/BLK 7
RIGHT CUTOFF OPEN ORN/YEL 8
RIGHT EXT OUT BLU 9
RIGHT EXT IN LT BLU 10
SCREED UP BLK/YEL 11
SCREED DOWN GRN/YEL 12
6"
6"
6"
9"
3/8" RING
GROUNDS
11"
7"
7"
24"
4"
7"
4"
2"
4"
2"
4"
2"
4"
2"
4"
2"
4"
2"
4"
2"
2"
7"
2"
2"
2"
2"
2"
2"
2"
2"
2"
2"
2"
2"
2"
2"
2"
2"
2"
2"
LEFT CUTOFF CLOSED
LEFT EXT IN
LEFT TOE DOWN
RIGHT TOE DOWN
RIGHT CUTOFF CLOSED
RIGHT EXT IN
LEFT SLOPE DOWN
1 ORN LEFT SLOPE DN
2 BLK GND
RIGHT SLOPE DOWN
HOPPER DOWN
HOPPER UP
LEFT CUT OFF OPEN
LEFT EXTENSION OUT
LEFT TOE UP
RIGHT TOE UP
RIGHT CUTOFF OPEN
RIGHT EXT OUT
LEFT SLOPE UP
RIGHT SLOPE UP
CROWN DOWN
1 BLU RIGHT EXT OUT
2 BLK GND
DT06-2S
DT06-2S
DT06-2S
DT06-2S
DT06-2S
DT06-2S
DT06-2S
DT06-2S
DT06-2S
DT06-2S
DT06-2S
DT06-2S
DT06-2S
DT06-2S
DT06-2S
DT06-2S
DT06-2S
DT06-2S
DT06-2S
DT06-2S
DT06-2S
DT06-2S
DT06-12S
1 YEL TRUCK HITCH IN
2 BLK GND
1 GRY/BLK RIGHT SLOPE DN
2 BLK GND
1 L BLU RIGHT EXT IN
2 BLK GND
1 ORN/YEL RIGHT CUTOFF CLOSED
2 BLK GND
1 YEL/RED RIGHT TOE DN
2 BLK GND
1 BRN LEFT TOE DN
2 BLK GND
1 RED/BLK LEFT EXT IN
2 BLK GND
1 BRN LEFT CUTOFF CLOSED
2 BLK GND
1 GRY HOPPER DN
2 BLK GND
1 WHT TRUCK HITCH OUT
2 BLK GND
1 GRN/YEL SCREED DN
2 BLK GND
1 BLK/YEL SCREED UP
2 BLK GND
1 BLU/RED RIGHT SLOPE UP
2 BLK GND
1 PUR LEFT SLOPE UP
2 BLK GND
1 YEL/BLK RIGHT CUTOFF OPEN
2 BLK GND
1 GRN HOPPER UP
2 BLK GND
1 ORN LEFT CUT OFF OPEN
2 BLK GND
1 BLU YEL LEFT EXTENSION OUT
2 BLK GND
1 PNK LEFT TOE UP
2 BLK GND
1 RED/BLK RIGHT TOE UP
2 BLK GND
NOTES:
ALL WIRE 16 AWG UNLESS NOTED OTHERWISE 1.
WIRE TYPE GXL OR TXL 2.
USE CONVOLUTED SPLIT LOOM 3.
ALL CONNECTORS MUST BE LABELED APPROPRIATELY 4.
ALL INTERNAL CONNECTIONS TO BE SOLDERED 5.
C7
C5
C6
C6
C7
1008585
PART NO.
